GE LOGIQ 400 Service Manual

GE MEDICAL SYSTEMS
2127661
LOGIQ 400 SERVICE MANUAL

RENEWAL PARTS
6–169
REV 9
6–2–63 AVIF Assy or BVIF Assy (FRU No. 503)
Time Required
30 Minutes
Tool Required
Screwdriver
Procedure
Refer to ILLUSTRATION 6–87.
1. Turn OFF the system.
2. Remove the Rear CONN Panel Assy (FRU 501). Refer to 6–2–61 on page 6–166.
3. Disconnect three connectors (
1
–
3
).
Note
In case of the BVIF Assy, disconnect two connectors (
1
and
3
).
4. Unscrew eleven screws (
4
–
14
).
5. Remove the AVIF Assy or BVIF Assy.
AVIF/BVIF ASSY DISASSEMBLY

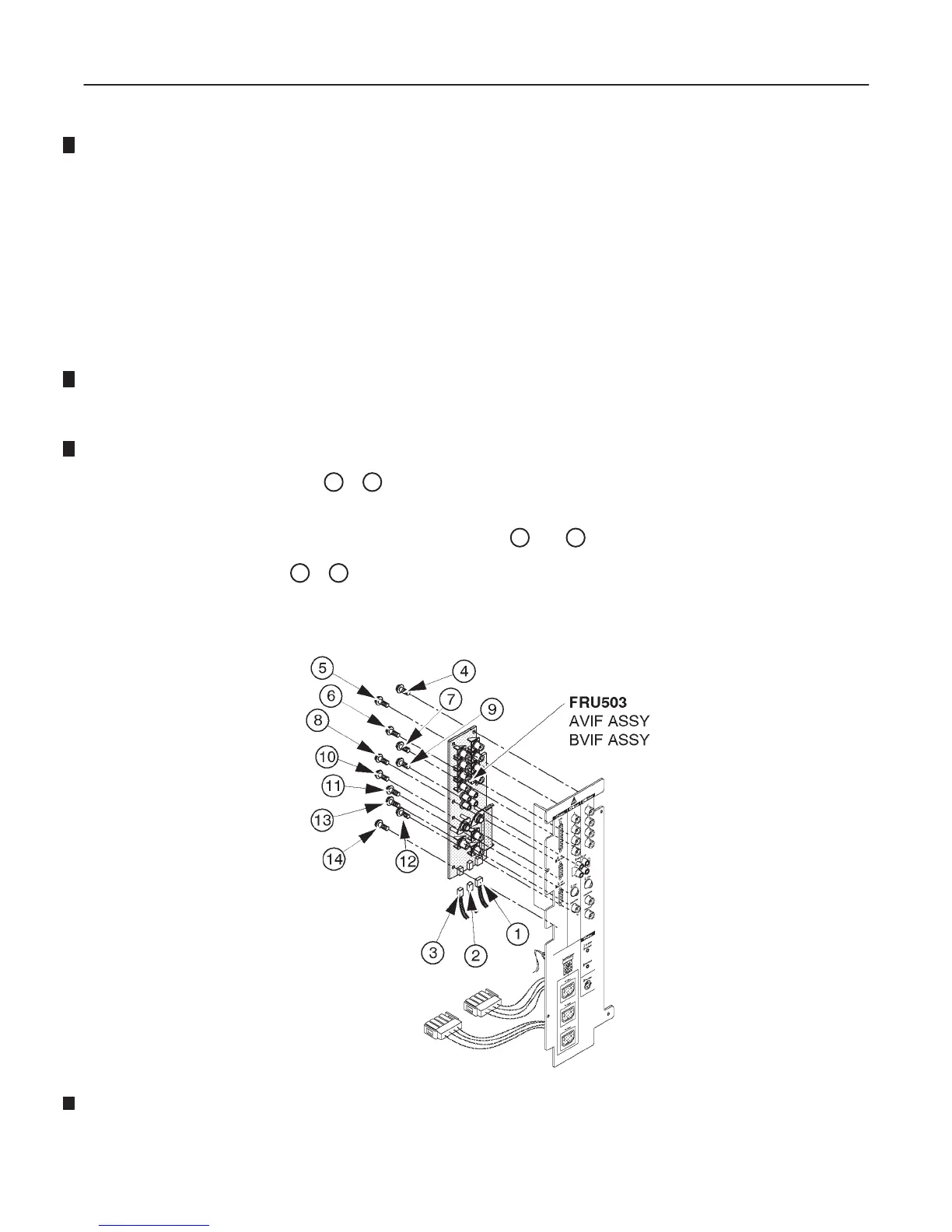

ILLUSTRATION 6–87
