GE LOGIQ 400 Service Manual

LOGIQ 400 SERVICE MANUALGE MEDICAL SYSTEMS
2127661

RENEWAL PARTS
6–153
REV 9
6–2–53 Gain Encoder (FRU No. 410)
Time Required
15 Minutes
Tool Required
Screwdriver
Procedure
Refer to ILLUSTRATION 6–76.
1. Turn OFF the system.
2. Remove the Keyboard Panel Assy. Refer to 6–2–49 on page 6–147.
3. Unscrew four screws (
1
–
4
).
4. Disconnect the gain encoder connector (
5
).

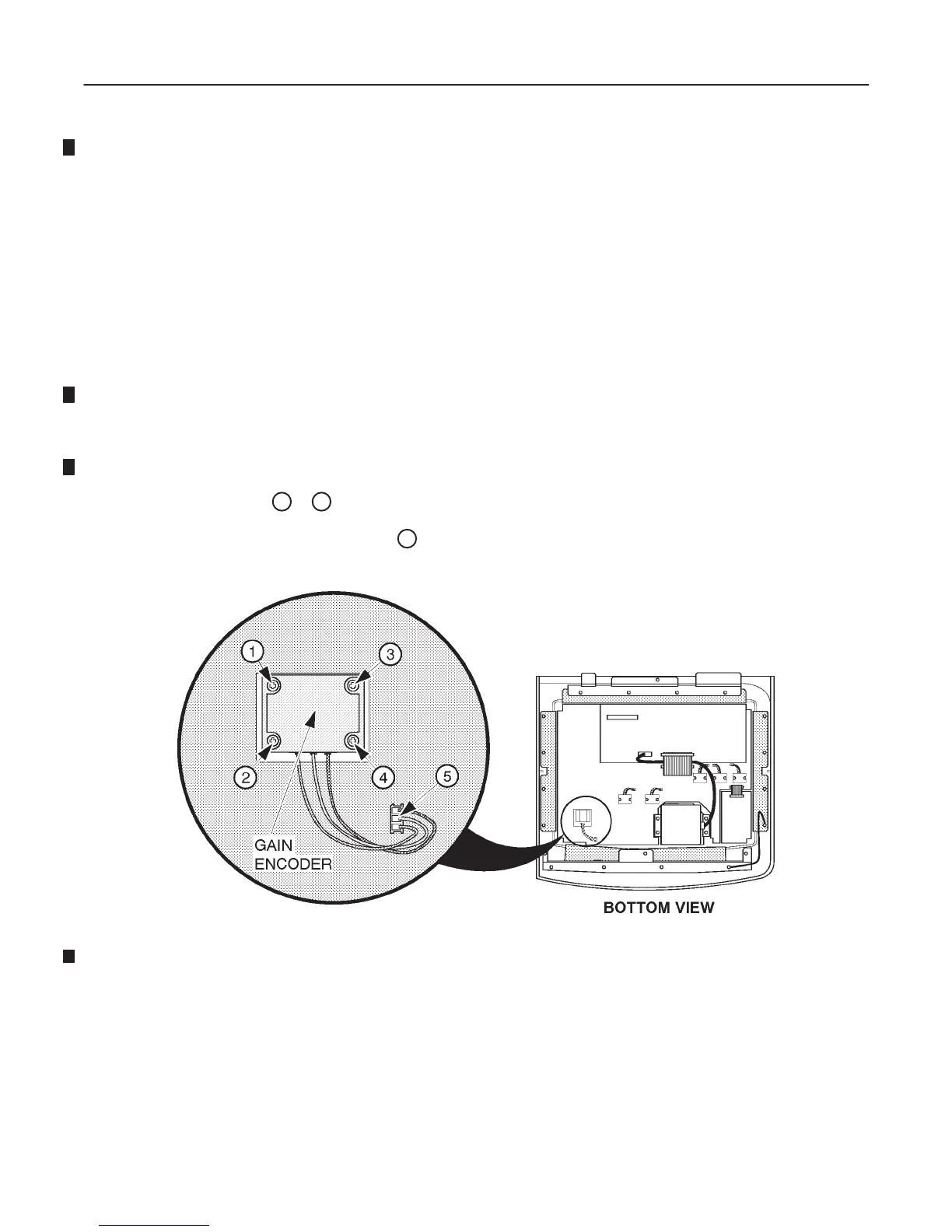

GAIN ENCODER DISASSEMBLY
ILLUSTRATION 6–76
Note
The appearance of new Gain Encoder (2206005) is different from the old one (2164871).
Note
The new Gain Encoder (2206005) can be used only for the console with the software version 3.30 or
later.
