6–2–23 Speaker Assy (FRU No. 178)
Time Required
0.5 Hours
Tool Required
Screwdriver
Procedure
Refer to ILLUSTRATION 6–44.
1. Turn OFF the system.
2. Remove the Monitor Cover L2 Assy (FRU 173) and Monitor Cover R2 Assy (FRU 174). Refer to 6–2–22 on page
6–106.
4. Unscrew eight screws (
1
–
8
).
5. Disconnect one connector for each speaker from the back side of the monitor.
6. Remove the Speakers.

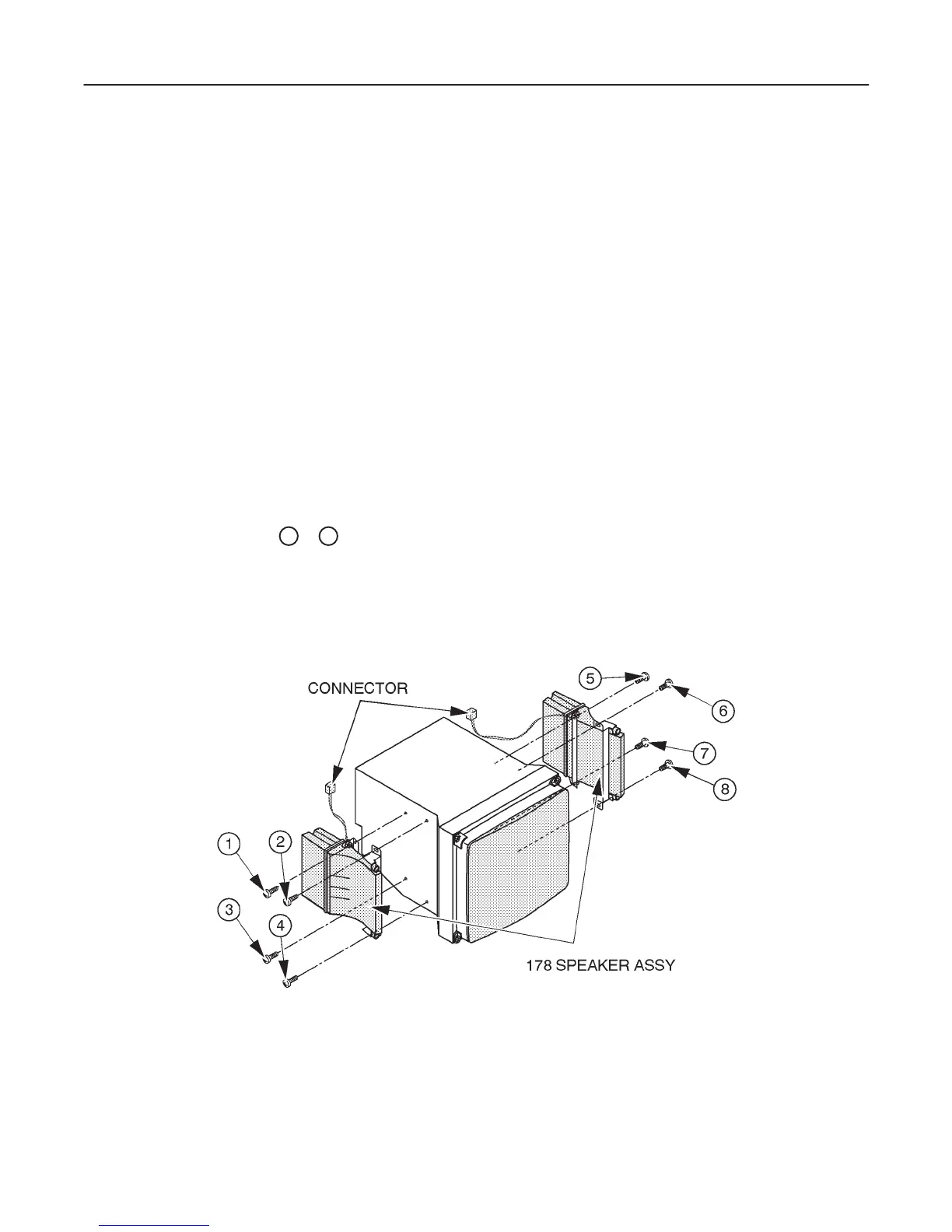

SPEAKER ASSY DISASSEMBLY
ILLUSTRATION 6–44
Note
Left and right speakers are interchangeable.
