LOGIQ 400 SERVICE MANUAL
TM
8–31 OPTIONS
REV 5
8–3–7 Connecting Cables
CAUTION
Use only the exclusive power cable to supply power to the peripheral recording devices from
the LOGIQ 400. If a peripheral device is supplied power by other outlet, the system may be
damaged by electrical noise transferred with the video signal or may not pass leakage current
test.
1. Connect the power cable, RS232C cable, and the BNC video cables between the Color Video Printer and console
as shown in ILLUSTRATION 8–27.
CONNECTING CABLES

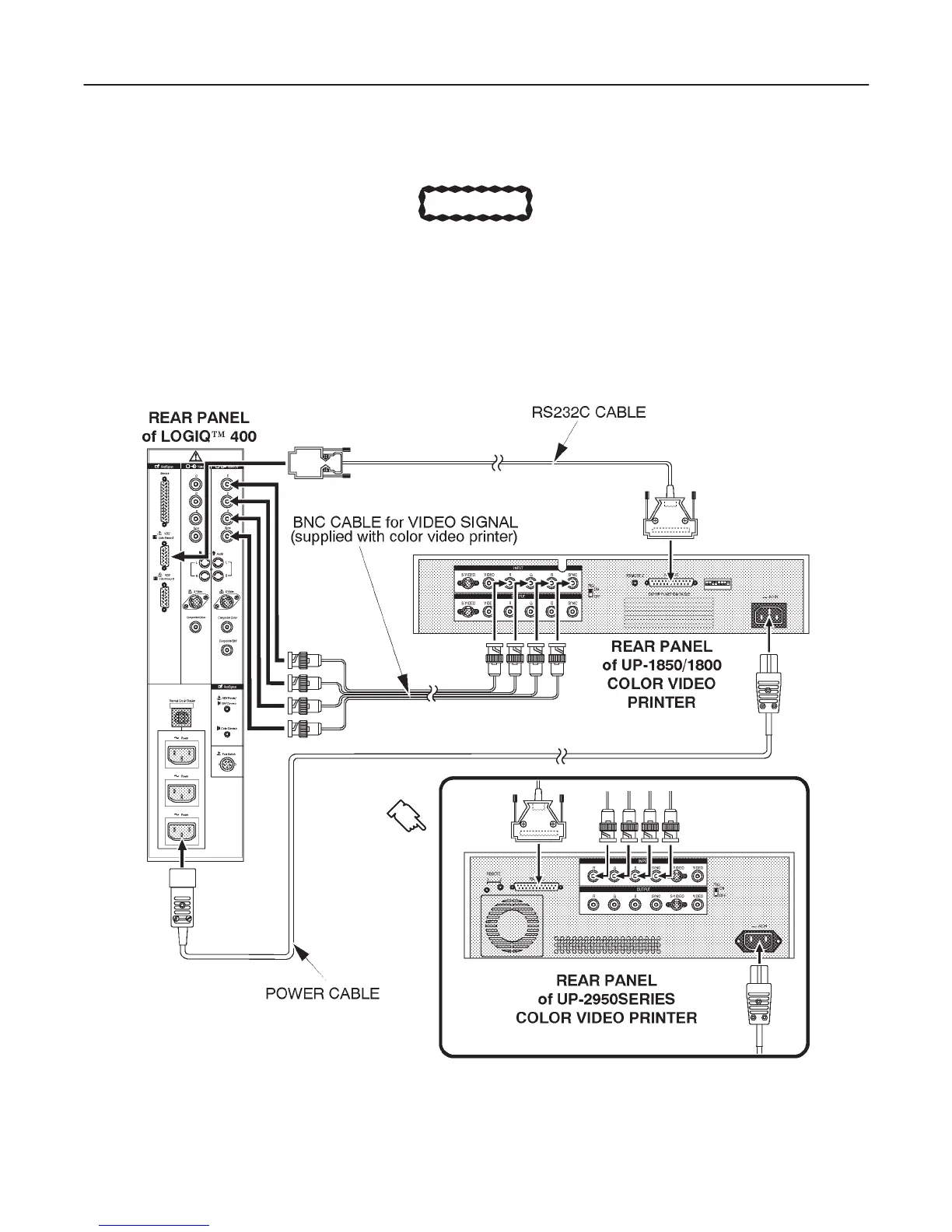

ILLUSTRATION 8–27
