6–2–70 Shield Finger Long (FRU No. 515), Shield Finger Short (FRU No. 516)
Time Required
45 Minutes
Tool Required
Screwdriver
Procedure
Refer to ILLUSTRATION 6–96.
1. Turn OFF the system.
2. Remove the Front Cover (FRU 306). Refer to 6–2–36 on page 6–132.
3. Unscrew eight screws (
1
–
8
).
4. Remove the connector frame.
5. Remove the Shield Finger Long (FRU 515) or Shield Finger Short (FRU 516).
SHIELD FINGER LONG/SHORT DISASSEMBLY

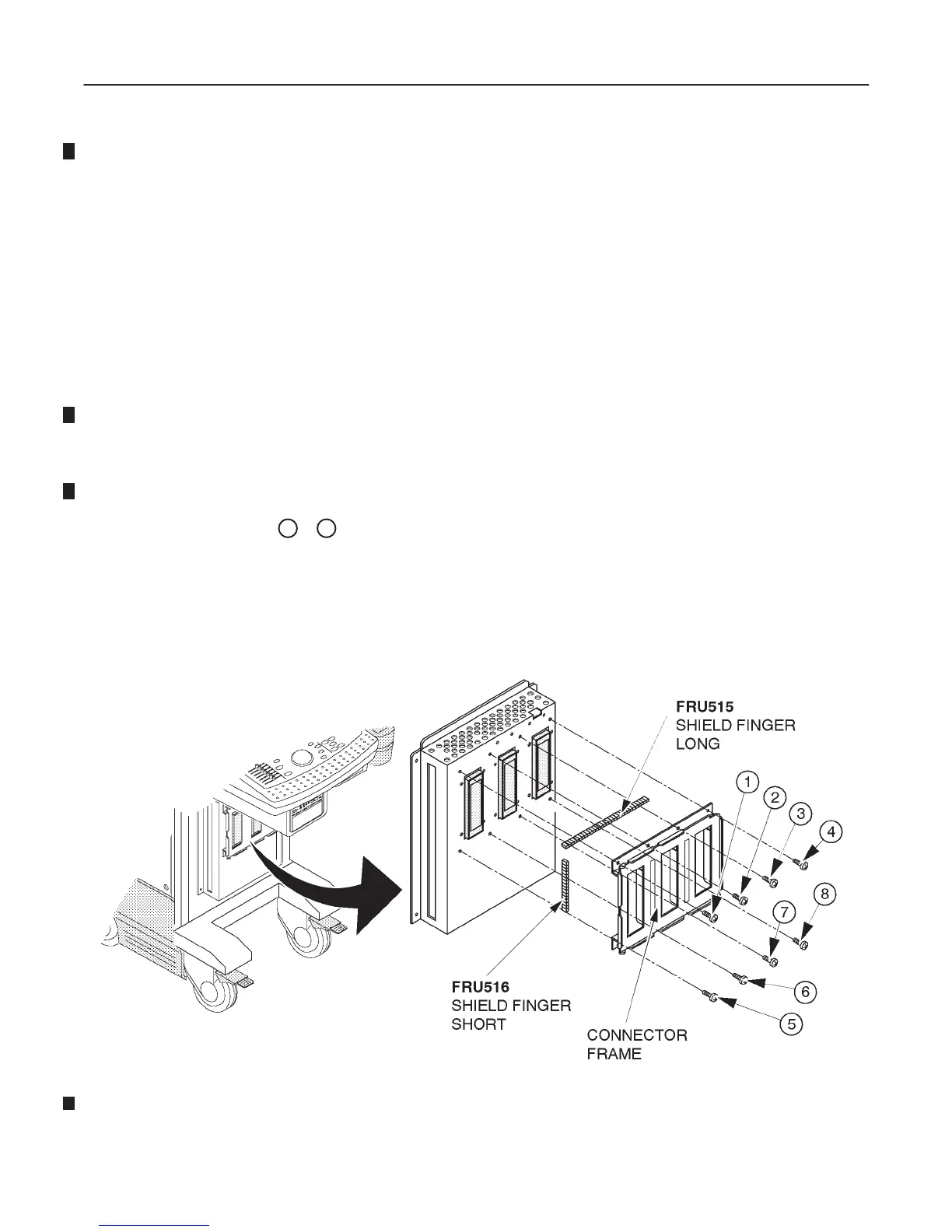

ILLUSTRATION 6–96
