2–2–6 Probe Cable Arm Installation
Probe Cable Arm is supplied with the LOGIQ 400 console (except to Japanese console). This provides the proce-
dures for installing the probe cable arm onto console.
1. Set the arm spacer to the axis of the probe cable arm. Refer to ILLUSTRATION 2–4.
2. Insert the probe cable arm into the hole onto console as shown in ILLUSTRATION 2–4.

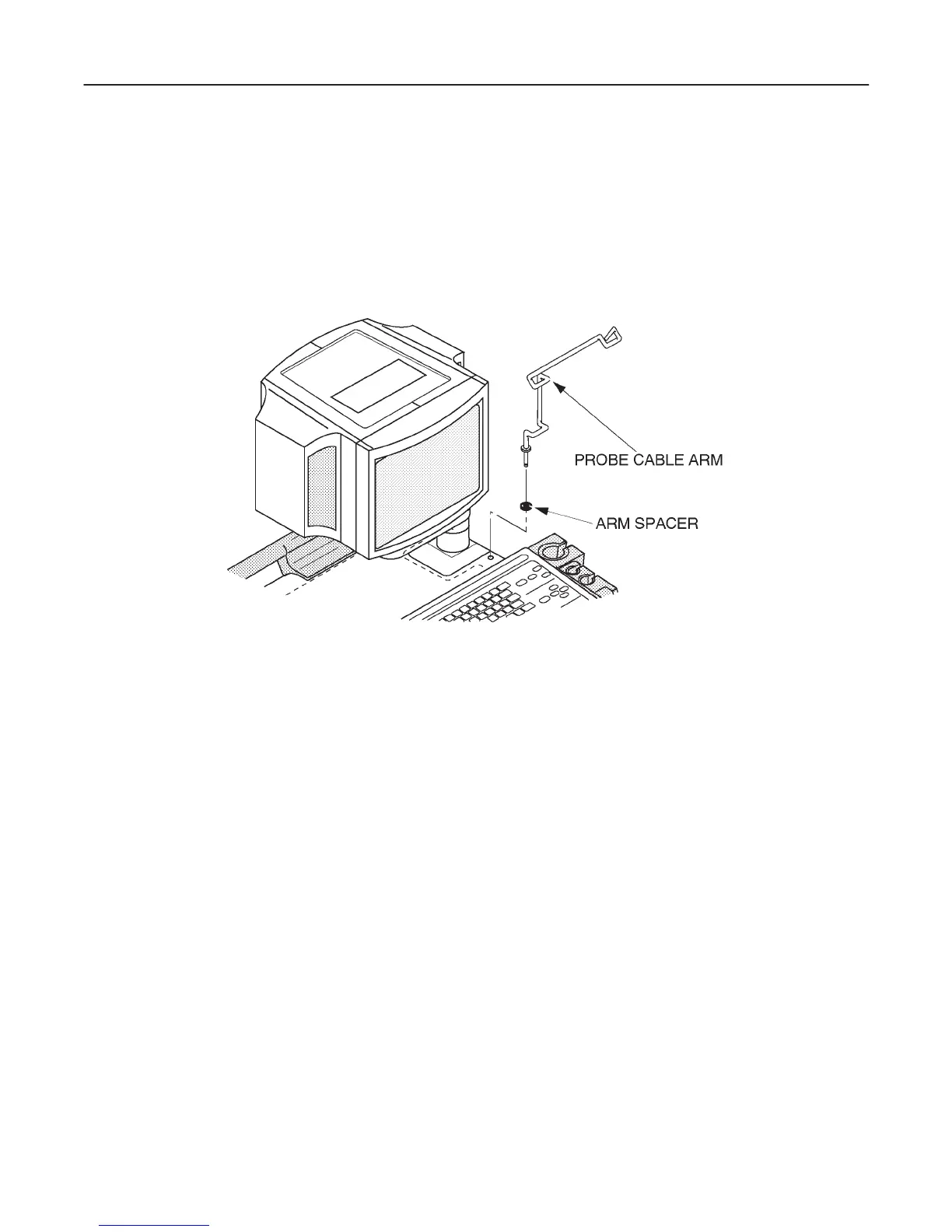

PROBE CABLE ARM INSTALLATION
ILLUSTRATION 2–4
