6–2–40 Corner Guard (FRU No. 311)
Time Required
10 Minutes
Tool Required
Screwdriver
Procedure
Refer to ILLUSTRATION 6–63.
1. Turn OFF the system.
2. Remove the Keyboard Panel Assy (FRU 400). Refer to 6–2–49 on page 6–147.
3. Unscrew inside three hexagonal bolts (
1
–
3
).
4. Unscrew outside five screws (
4
–
8
).
5. Remove the Corner Guard upwards.

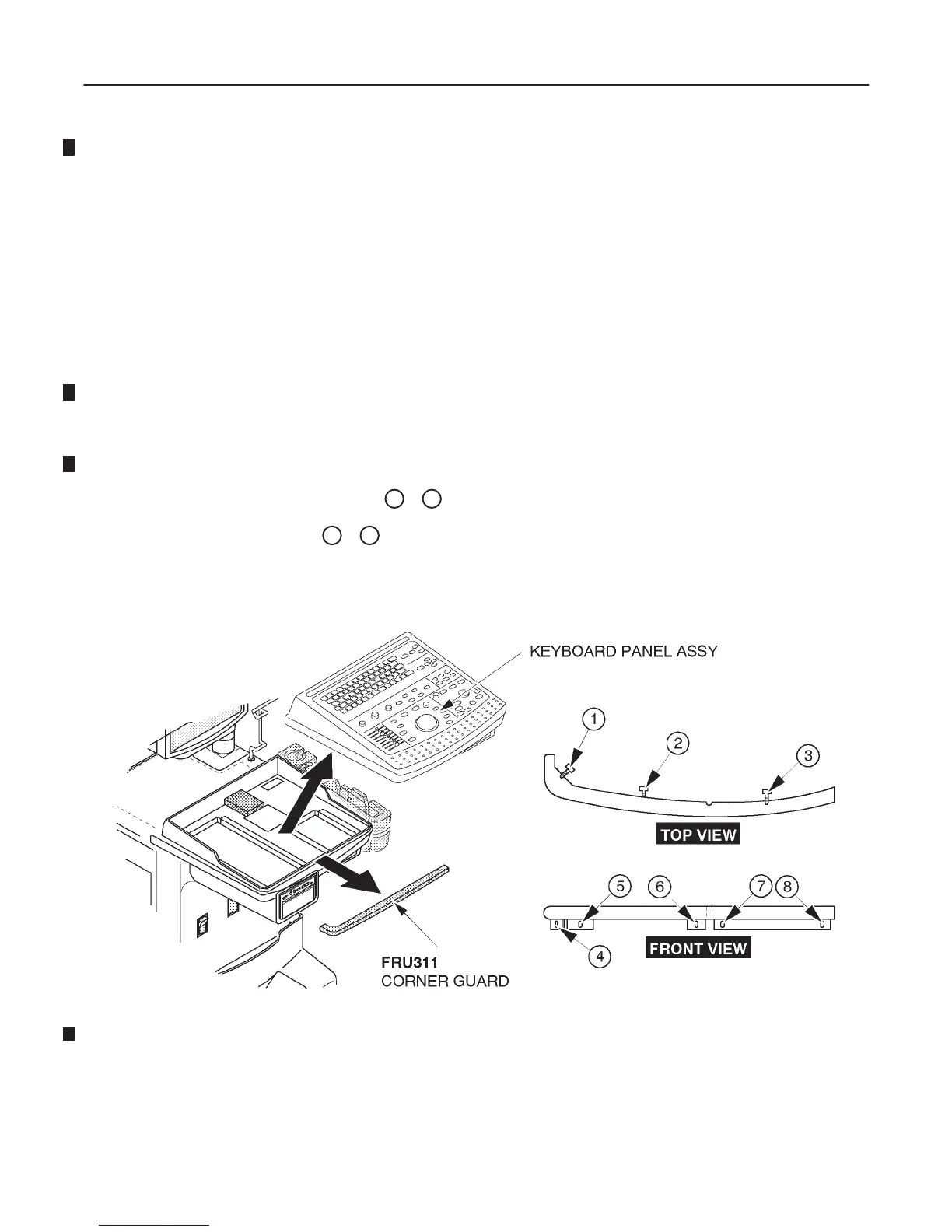

CORNER GUARD DISASSEMBLY
ILLUSTRATION 6–63
Note
Reuse the hexagonal bolts and screws removed to install the new corner guard.
