8–2–10 Operational Check-out (Continued)
g. Move the cursor to “NEXT” position by rotating the trackball and press the Set button four times to display the
fifth page (5/6).
h. Move the cursor to “S–Video” position for the External Video Signal parameter and press Set key to select it.
Refer to ILLUSTRATION 8–19.
i. Move the cursor to “VCR” position for the Port A parameter and press Set key to select it. Refer to
ILLUSTRATION 8–19.

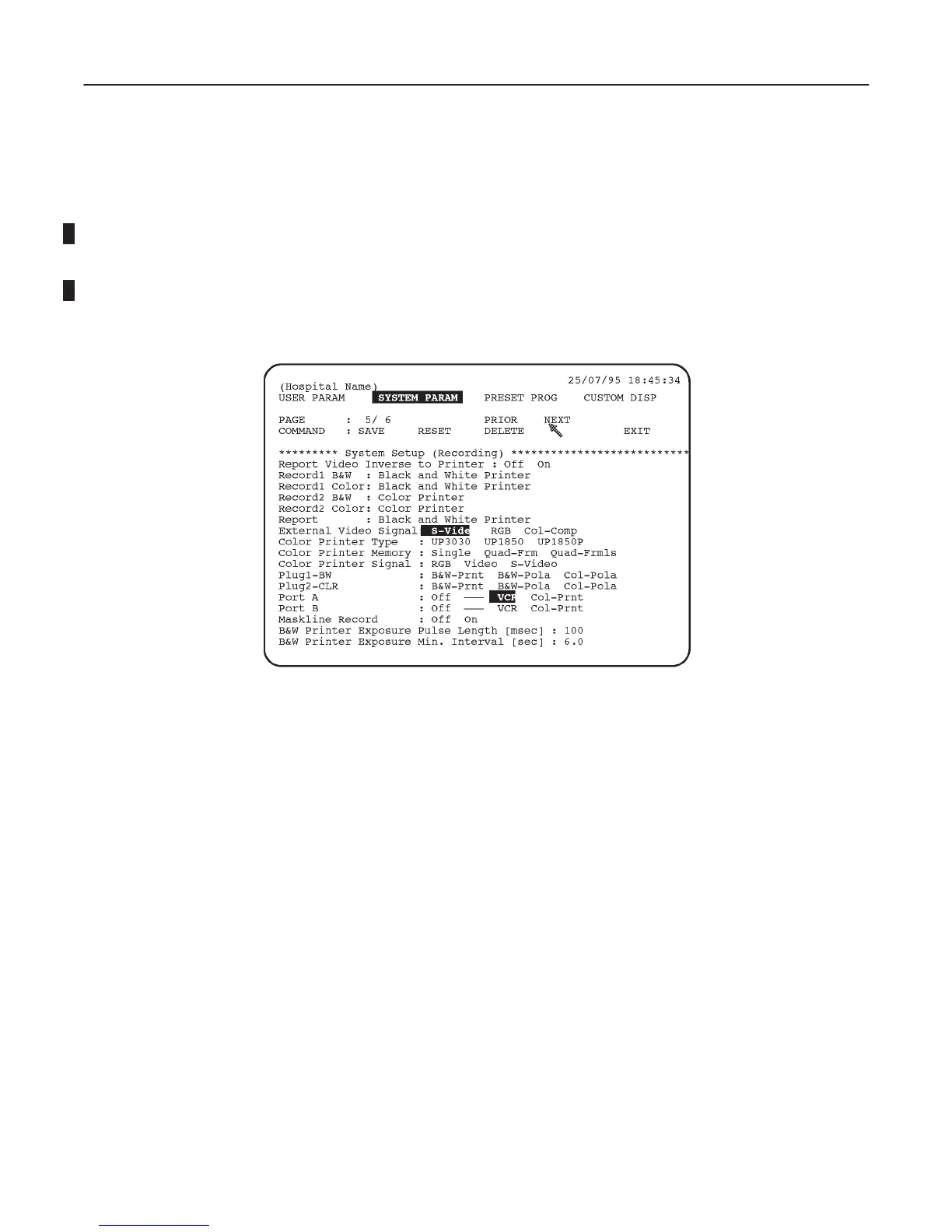

SYSTEM PARAMETER SET-UP MENU (5/6)
ILLUSTRATION 8–19
j. Move the cursor to “SAVE” position and press Set button to save the selected parameters.
k. Press the Top Menu Select key twice to exit the System Parameter Set-Up menu.
6. Make sure that the Video Cassette Recorder is properly controlled by the console. For the VCR operation, refer to
LOGIQ 400 User Manual.
7. Perform leakage current test.
8. Turn OFF the power switch of the main unit.
8–2–11 Final Procedures
1. Properly dispose of excess material.
2. This completes the installation of the Video Cassette Recorder.
