6–2–52 Trackball (FRU No. 405)
Time Required
20 Minutes
Tool Required
Screwdriver
Procedure
Refer to ILLUSTRATION 6–75.
1. Turn OFF the system.
2. Remove the Keyboard Panel Assy. Refer to 6–2–49 on page 6–147.
3. Unscrew four screws (
1
–
4
).
4. Disconnect one connector (
5
).
5. Unscrew four screws (
6
–
9
).
6. Remove The Holding Metal Plate.

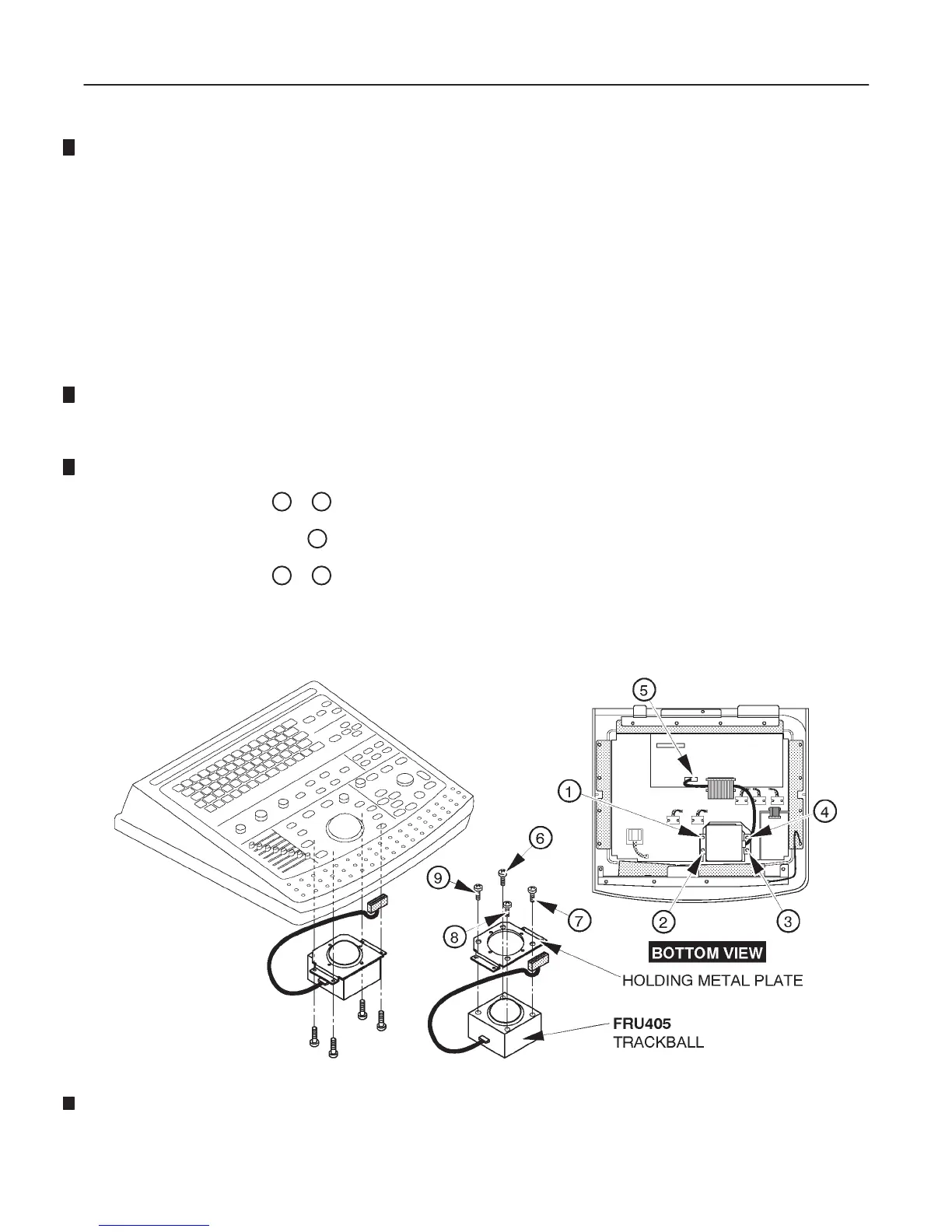

TRACKBALL DISASSEMBLY
ILLUSTRATION 6–75
