Enhanced Security HDD Option Type M10 (D792-09)
D255/D256/M281/M282 2-80 SM

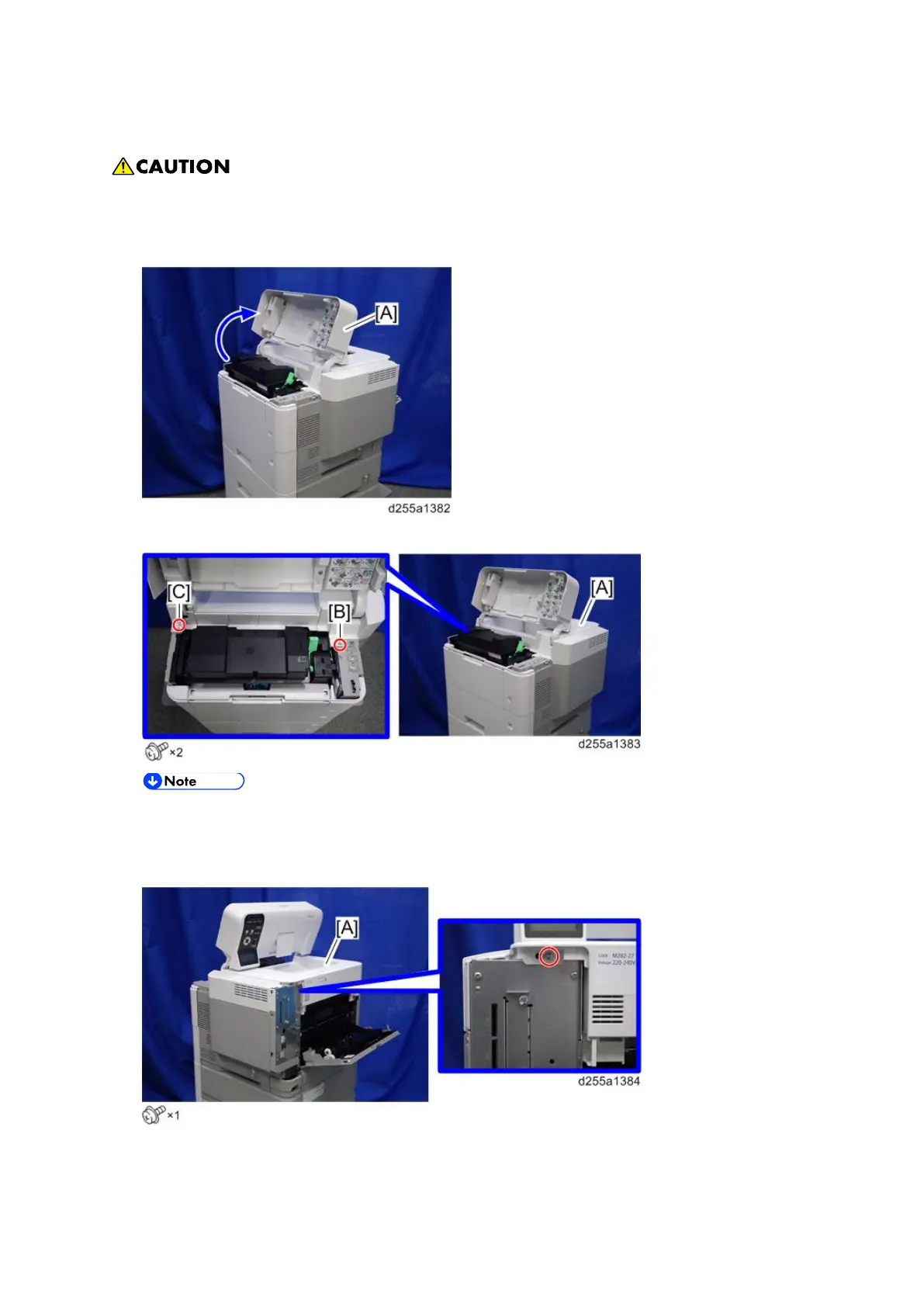

2.7.3 INSTALLATION PROCEDURE (SP 5300/5310)
 Turn OFF the main power, and unplug the machine power cord before starting the
following procedure.
1. Open the upper cover [A].
2. Remove the two screws from the upper cover [A].
 The screw [B] is a sems screw. The screw [C] is a tapping screw. Be careful not use
the wrong screws when installing the upper cover.
3. Remove the screw from the rear side of the upper cover [A].
To Next Page
