Drive Unit
SM 4-125 D255/D256/M281/M282
Replacement
and Adjustment
4.22.2 MAIN DRIVE UNIT

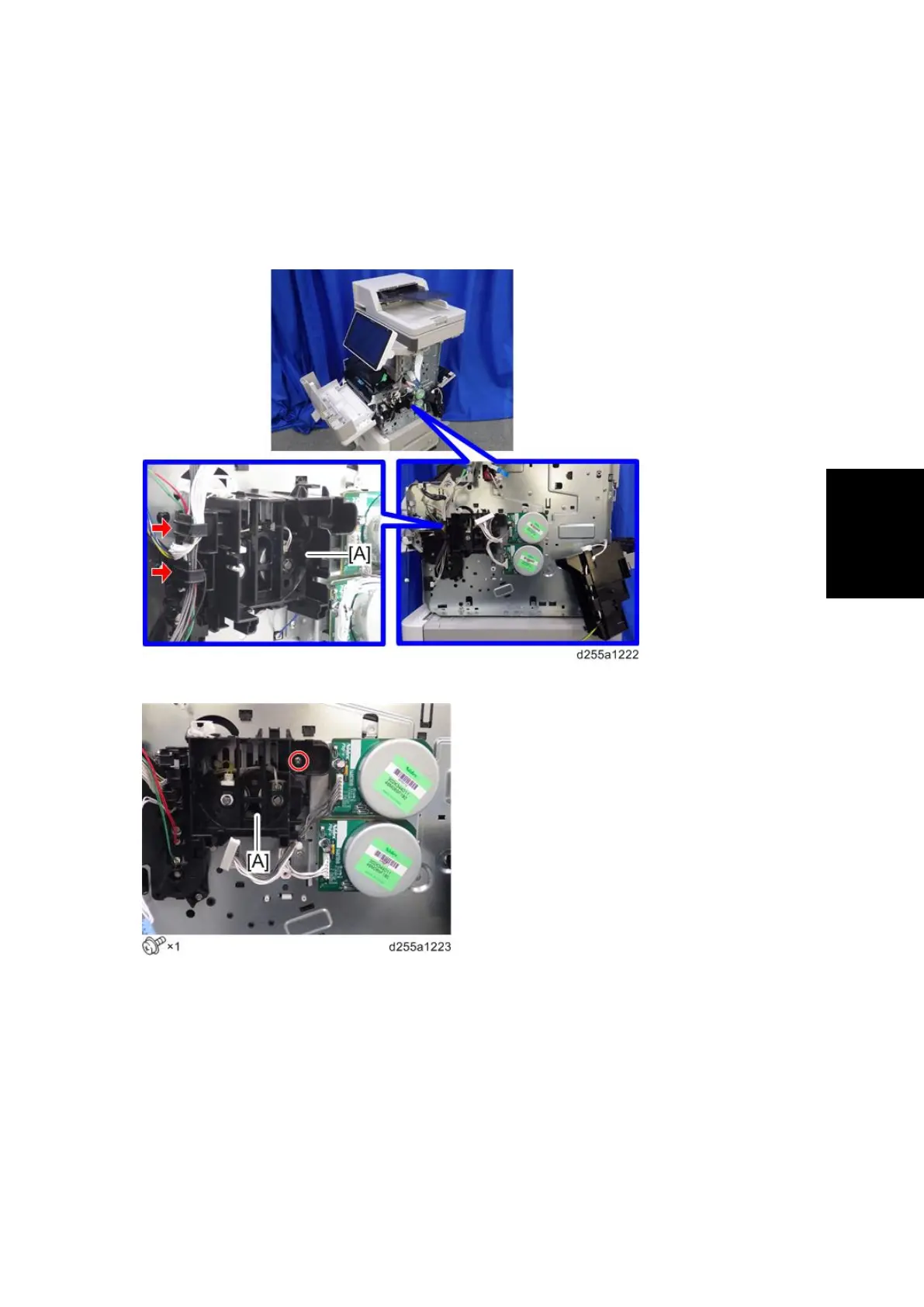

1. Remove the IOB. (MP 501/601: page 4-147, SP 5300/5310: page 4-148)
2. Remove the PSU. (page 4-154)
3. Remove the harness from the harness guide of the bracket [A].
4. Remove the bracket [A].
