Exterior Covers (SP 5300/5310)
D255/D256/M281/M282 4-58 SM

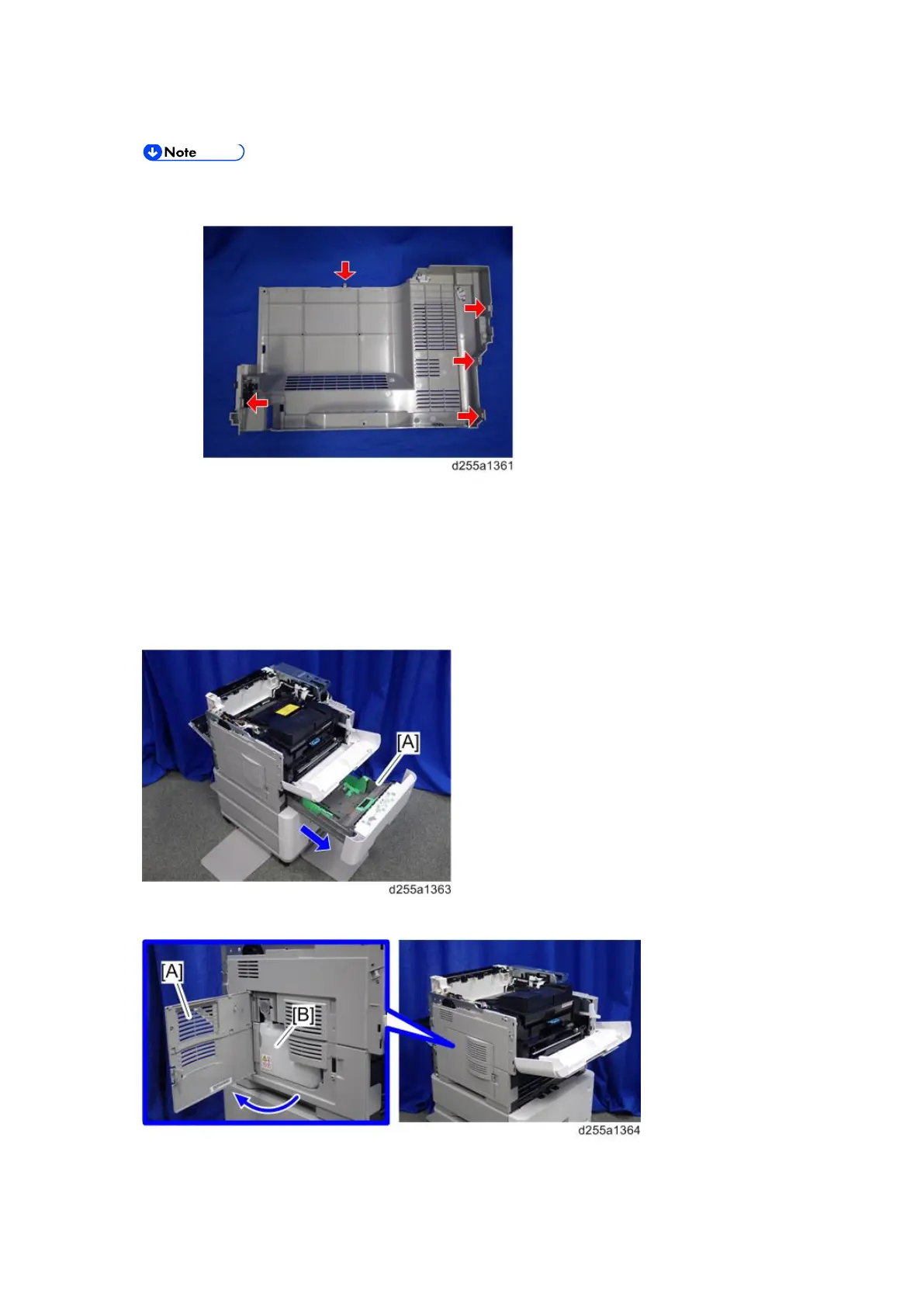

 Be careful not to damage the hooks on the inside of the right cover when you remove
or install the right cover.
4.7.4 LEFT UPPER COVER
1. Remove the following covers.
 Upper cover (page 4-47)
 Left rear cover (page 4-61)
2. Remove the paper feed tray [A] by pulling it out.
3. Open the waste toner bottle cover [A], and then remove the waste toner bottle [B].
