Scanner Unit (MP 501/601 Only)
D255/D256/M281/M282 4-76 SM
4.10 SCANNER UNIT (MP 501/601 ONLY)
4.10.1 SCANNER UNIT
1. Remove the following covers.
 Scanner front cover (page 4-14)
 Right upper cover (page 4-20)
 Left upper cover (page 4-26)
 Rear center stay (page 4-36)

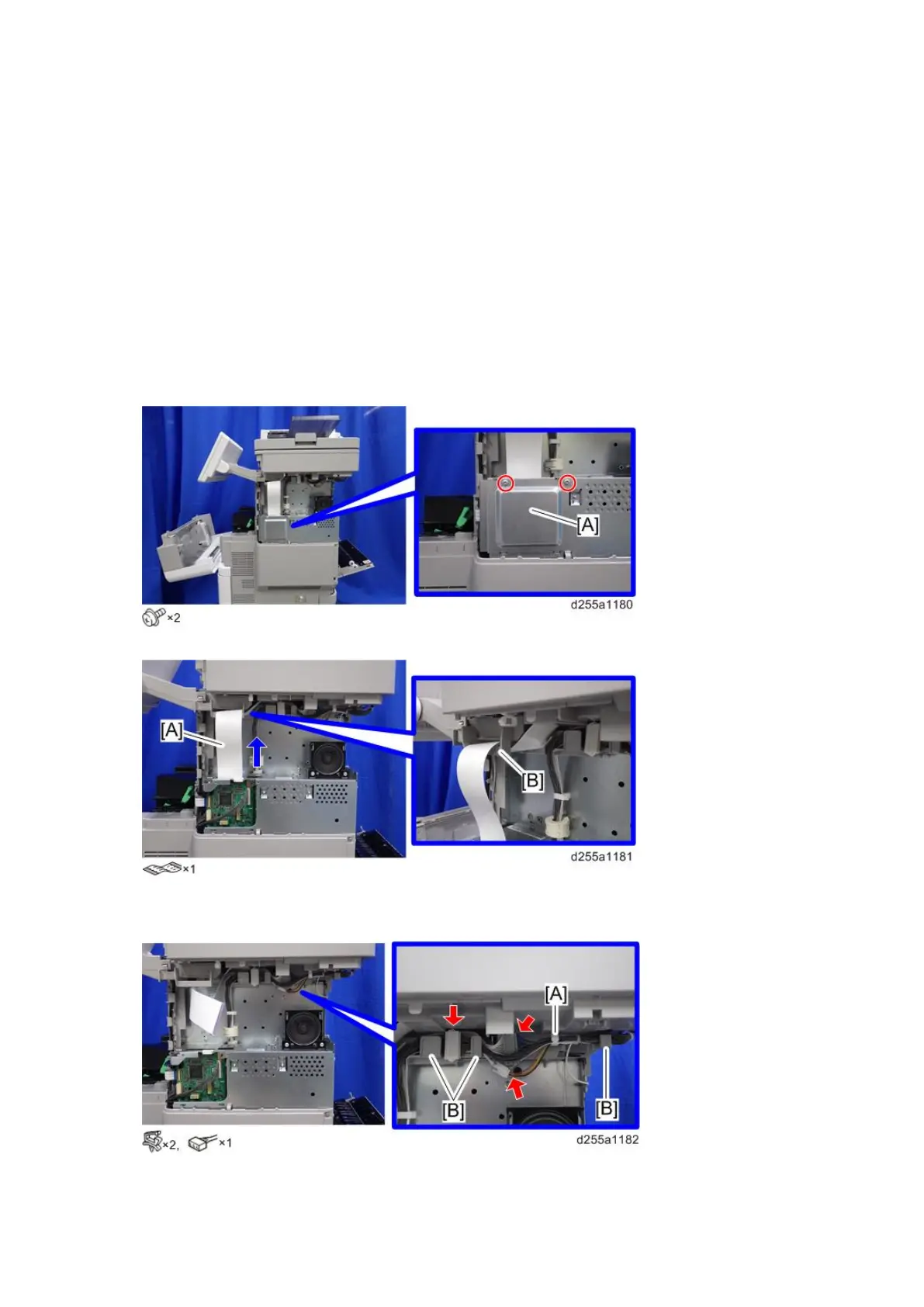

2. Remove the bracket [A].
3. Disconnect the flat cable [A] and release it from the harness guide [B].
4. Open the clamp [A] and disconnect the three connectors. Then release the connectors
from the harness guides [B].
