Exterior Covers (MP 501/601)
SM 4-33 D255/D256/M281/M282
and Adjustment

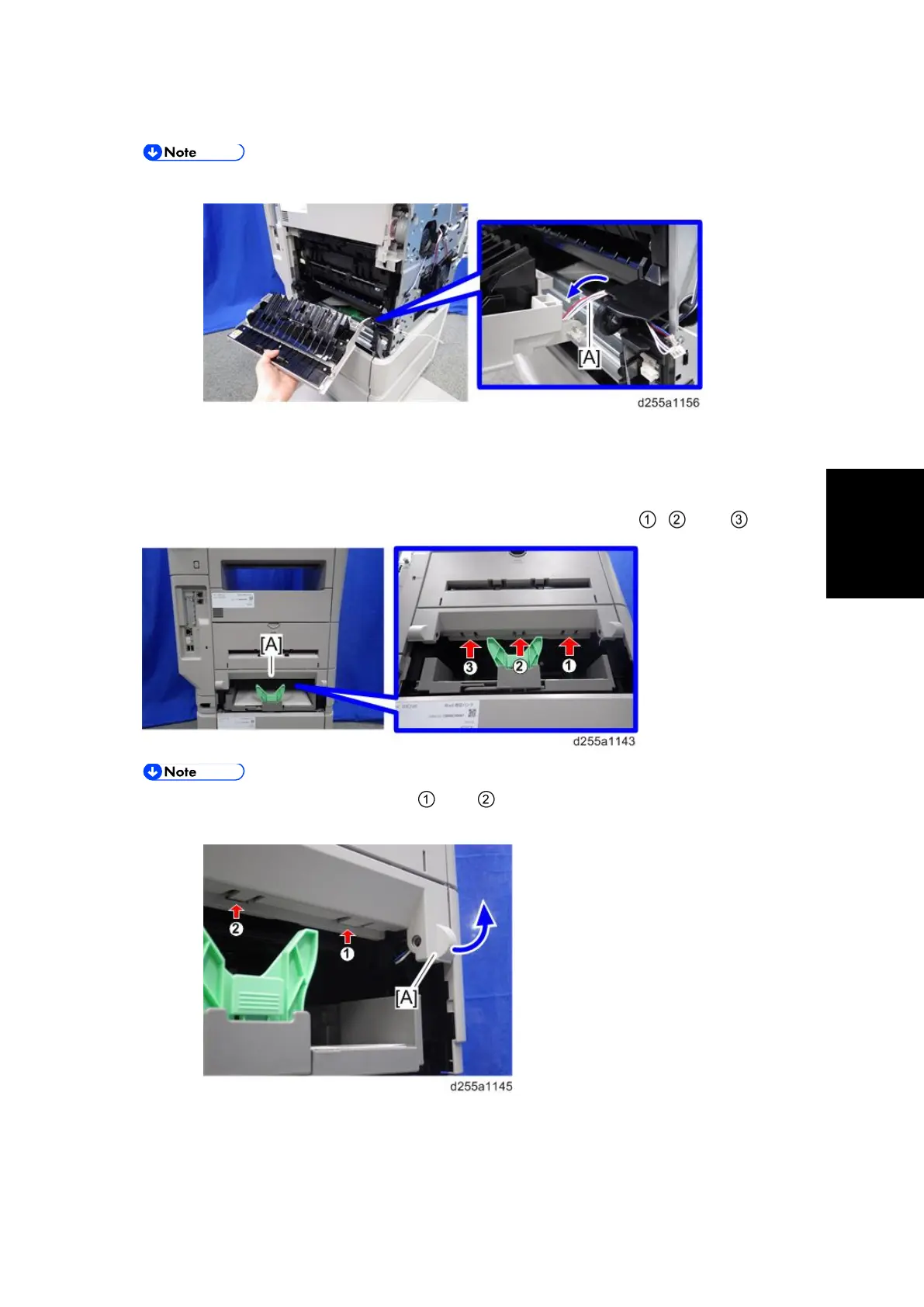

 When removing the rear upper cover, release the harness [A] from the mainframe.
4.6.10 REAR MIDDLE COVER
1. Remove the rear lower cover. (page 4-35)
2. Release three hooks of the rear middle cover [A] in the order of
, , and .
 When releasing the hooks at
and , pull the right side [A] of the rear middle
cover while pressing each hook upward.
To Next Page
