ARDF (MP 501/601 Only)
D255/D256/M281/M282 4-168 SM

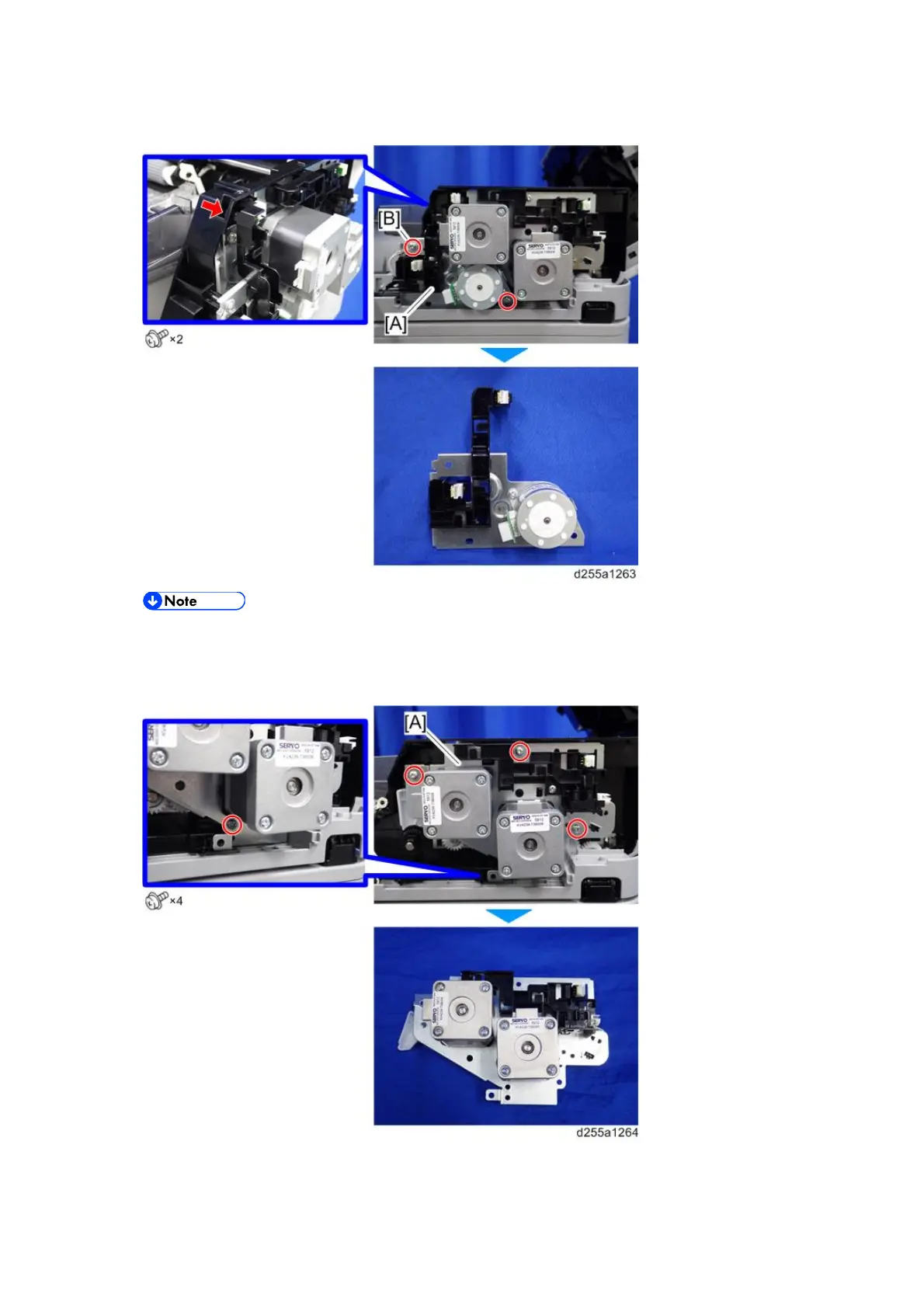

5. Remove the ARDF inverter motor unit [A]. (hook×1)
 The screw [B] is a ground screw. Be careful not to use the wrong screw when
installing the ARDF paper feed motor and ARDF paper transport motor.
6. Remove the ARDF paper feed motor and ARDF paper transport motor [A].
