ARDF (MP 501/601 Only)
D255/D256/M281/M282 7-30 SM
7.12.2 ORIGINAL TRANSPORT SECTION AND EXIT SECTION

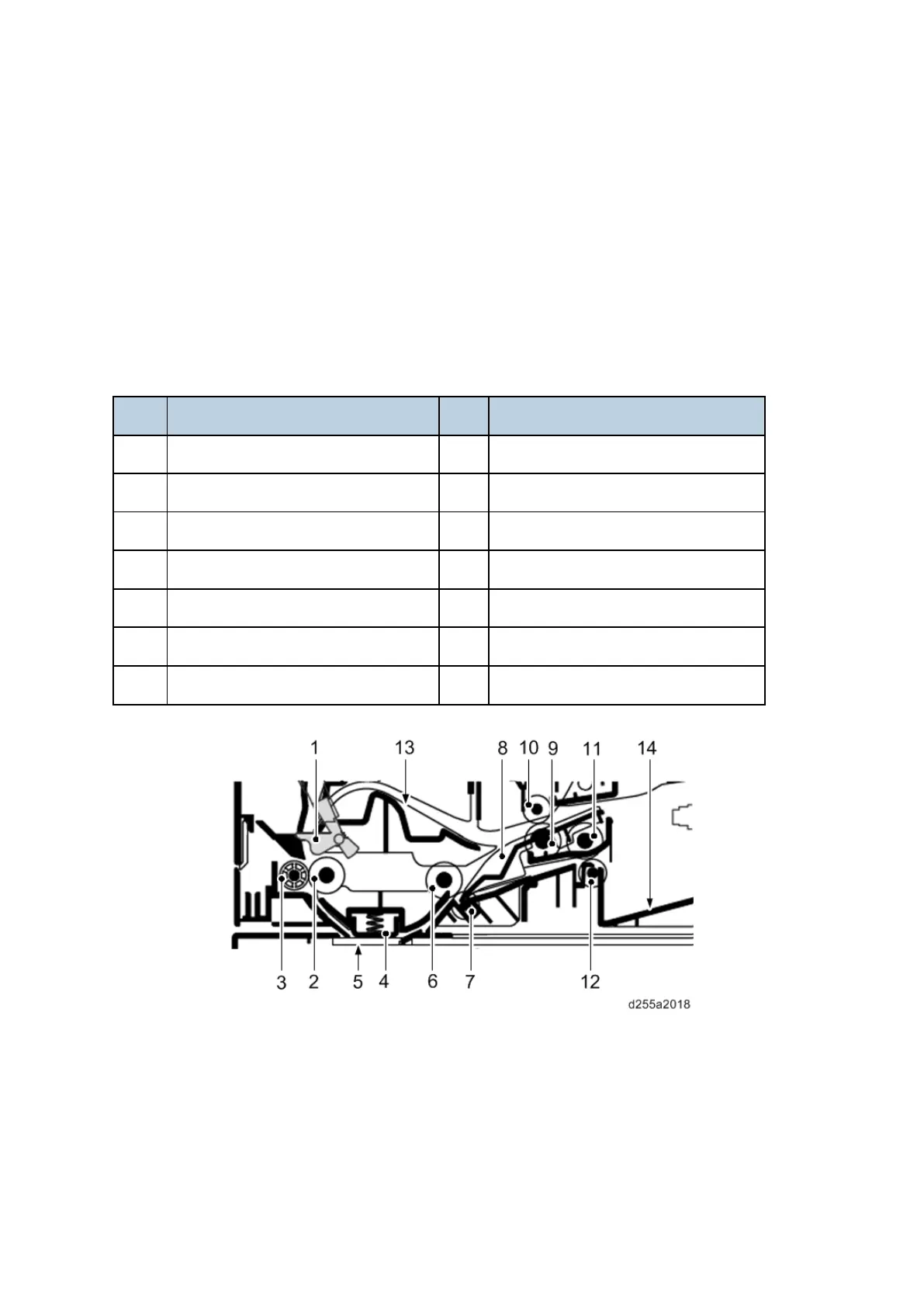

The original transport section consists of the parts shown below. A transported original is scanned
by the optical section (CCD) of the main unit when it passes the exposure glass of the ARDF in
the main unit.
The original exit section consists of the parts shown below. An original that has completed
scanning is ejected to the original exit table by the exit roller.
The original is transported temporarily to the original exit table and transported again to the
original transport section by the junction roller.
No. Name No. Name
1 Actuator (ARDF registration sensor) 8 Junction guide
2 ARDF registration roller 9 Junction roller
3 ARDF registration pulley 10 Junction pulley
4 Reading guide 11 ARDF exit roller
5 Exposure glass for ARDF 12 ARDF exit pulley
6 ARDF transport roller 13 ARDF exit guide
7 ARDF transport pulley 14 Original exit tray
