Fusing Unit
D255/D256/M281/M282 4-98 SM
4.16 FUSING UNIT
4.16.1 FUSING UNIT
1. Remove the following covers.
 MP 501/601: Rear upper cover (page 4-26), Controller cover (page 4-45)
 SP 5300/5310: Rear upper cover (page 4-62), Controller cover (page 4-67)

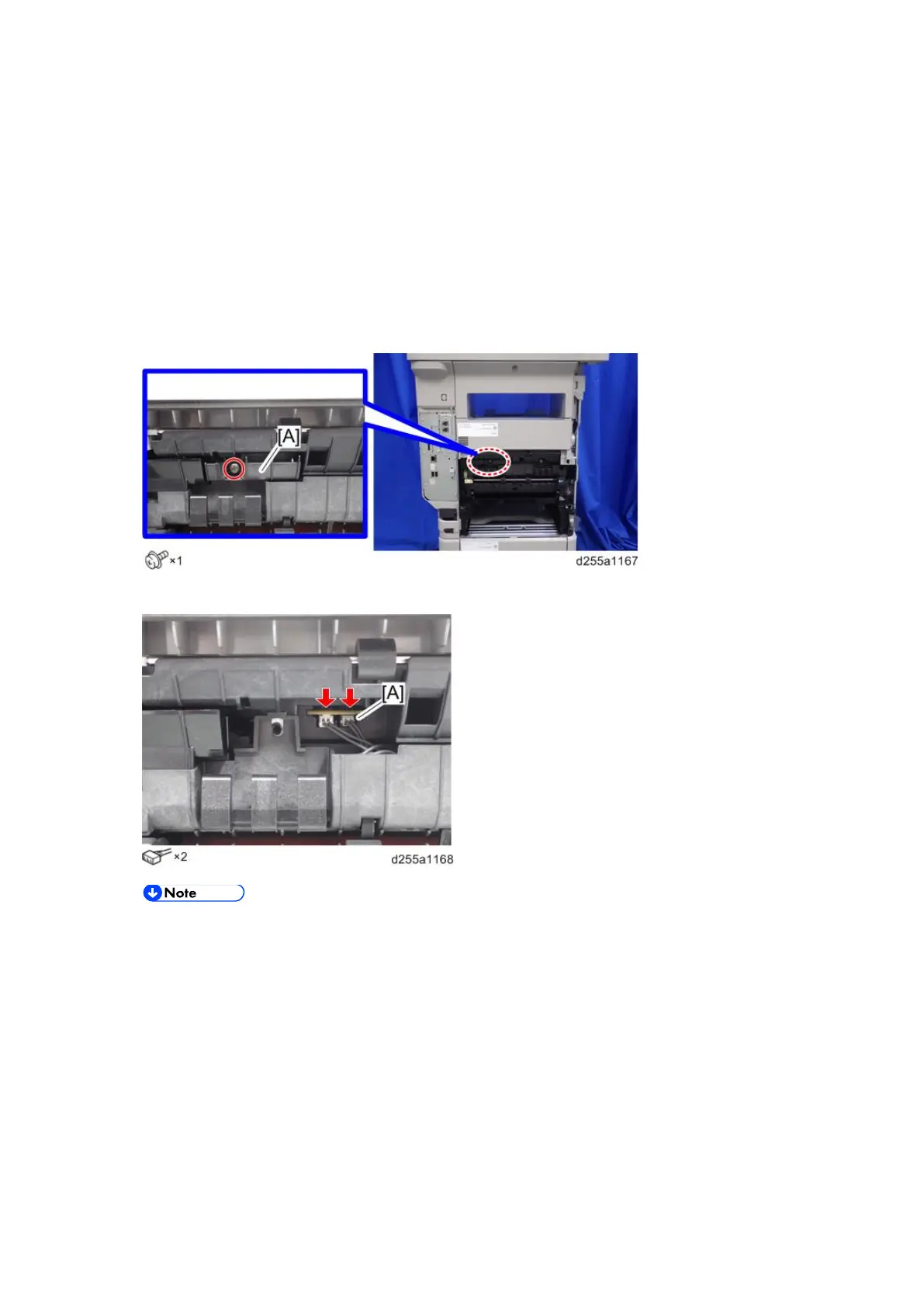

2. Remove the connector cover [A] from the rear side of the machine.
3. Disconnect the two connectors.
 The connector [A] is gray. Be careful not to connect the wrong connector when
installing the fusing unit.
