Image Adjustment
D255/D256/M281/M282 4-6 SM
2. Check the side-to-side registration [B] for each paper feed station, and adjust them
using SP1-002.
Paper Feed Station SP No. Adjustment Range
Tray 1 (Main unit) SP1-002-001
4±2.5 mm
Tray 2 (Optional tray) SP1-002-002
Tray 3 (Optional tray) SP1-002-003
Tray 4 (Optional tray) SP1-002-004
Tray 5 (Optional tray) SP1-002-005
Bypass Tray SP1-002-006
Duplex Tray SP1-002-007
Blank Margin

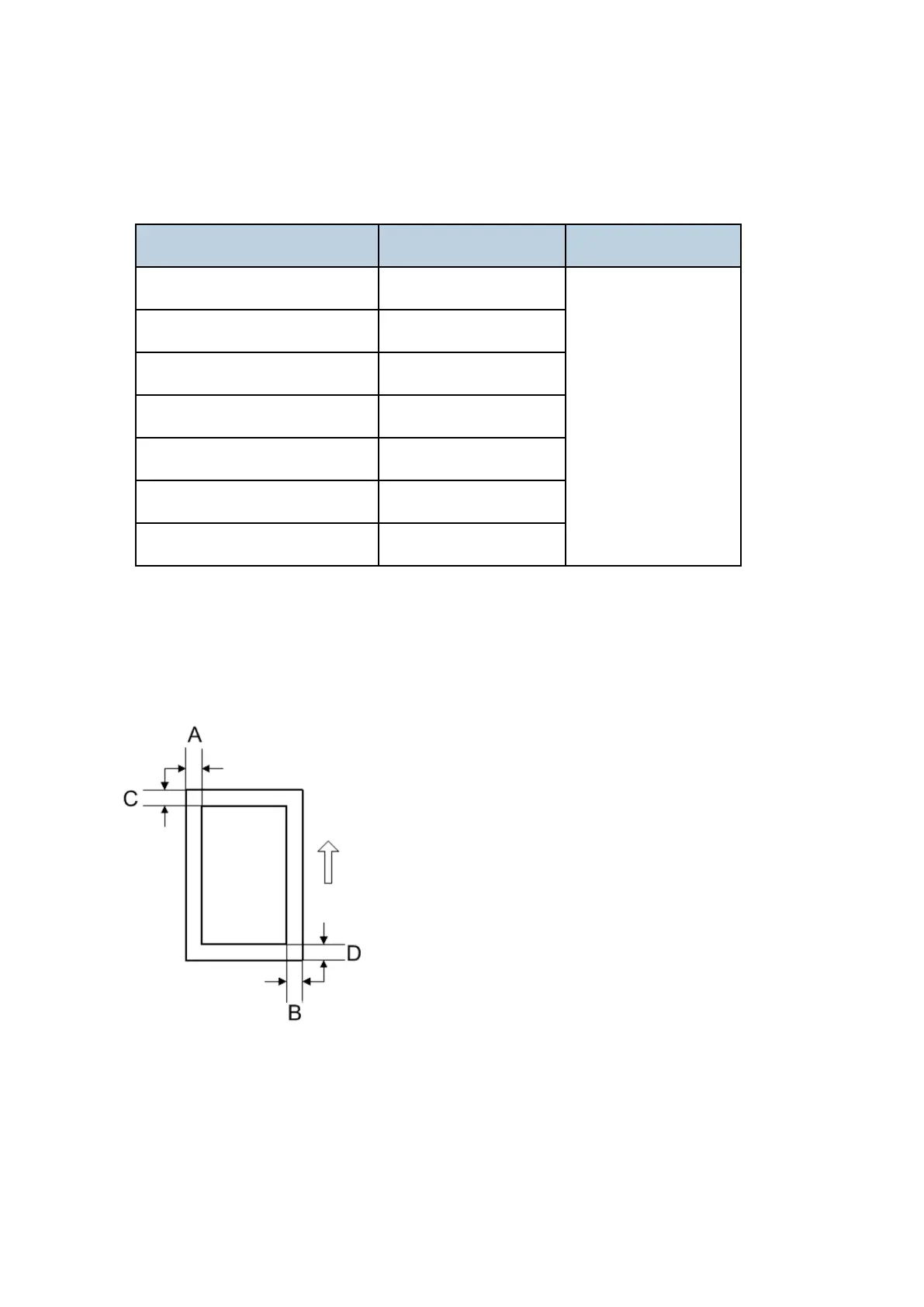

If the leading edge/side-to-side registration cannot be adjusted within the specifications, adjust the
leading/left side edge blank margin.
A: Left Edge Blank Margin
B: Right Edge Blank Margin
C: Leading Edge Blank Margin
D: Trailing Edge Blank Margin
1. Check the trailing edge [A], right edge [B], leading edge [C], left edge [D] blank margins,
and adjust them using the following SP modes.
