Exterior Covers (SP 5300/5310)
D255/D256/M281/M282 4-66 SM

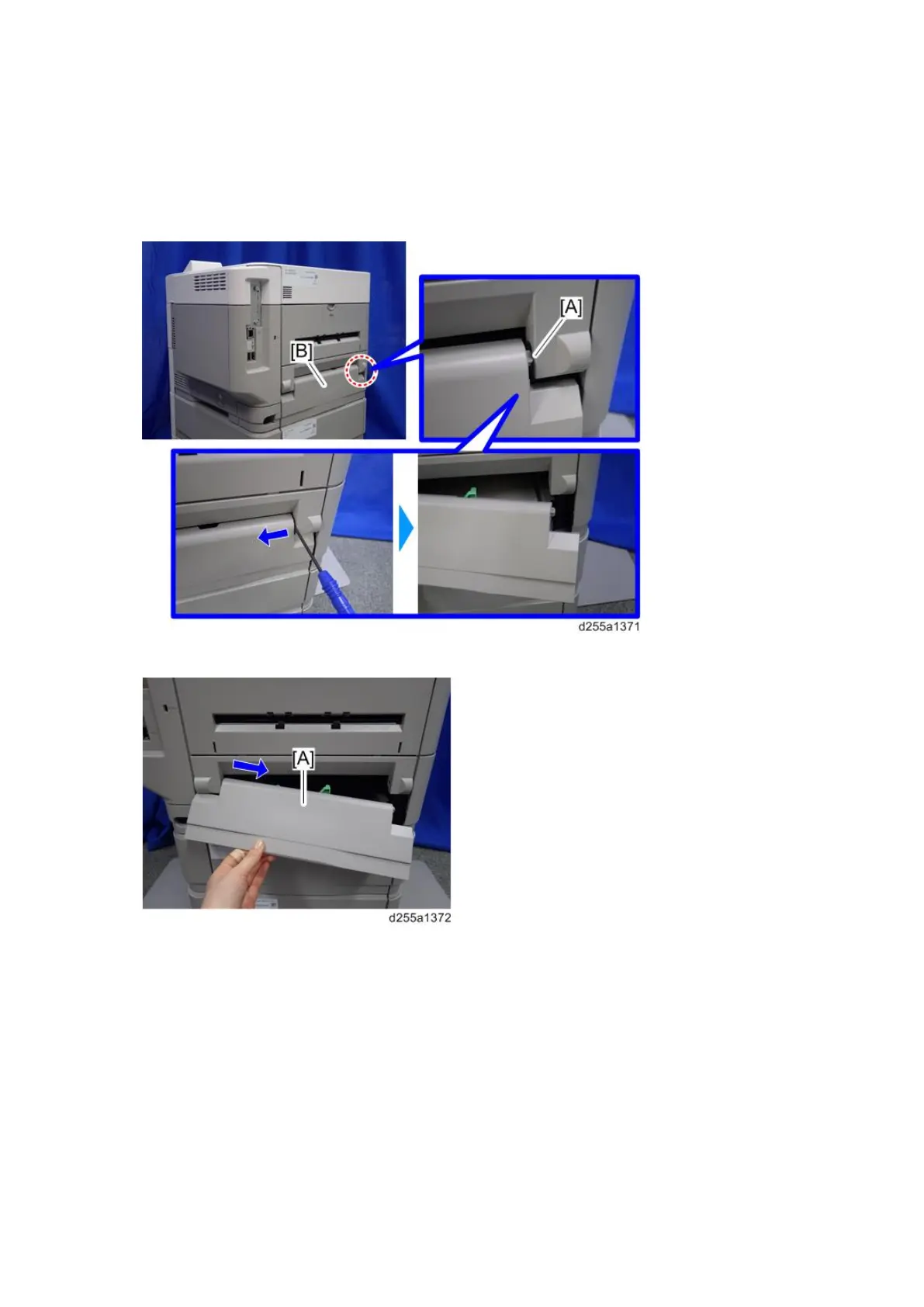

4.7.9 REAR LOWER COVER
1. Release the right hinge [A] of the rear lower cover [B] by pushing the rear lower cover
inward with a flathead screwdriver.
2. Remove the rear lower cover [A] by sliding it to the right.
