Drive Unit
D255/D256/M281/M282 4-126 SM

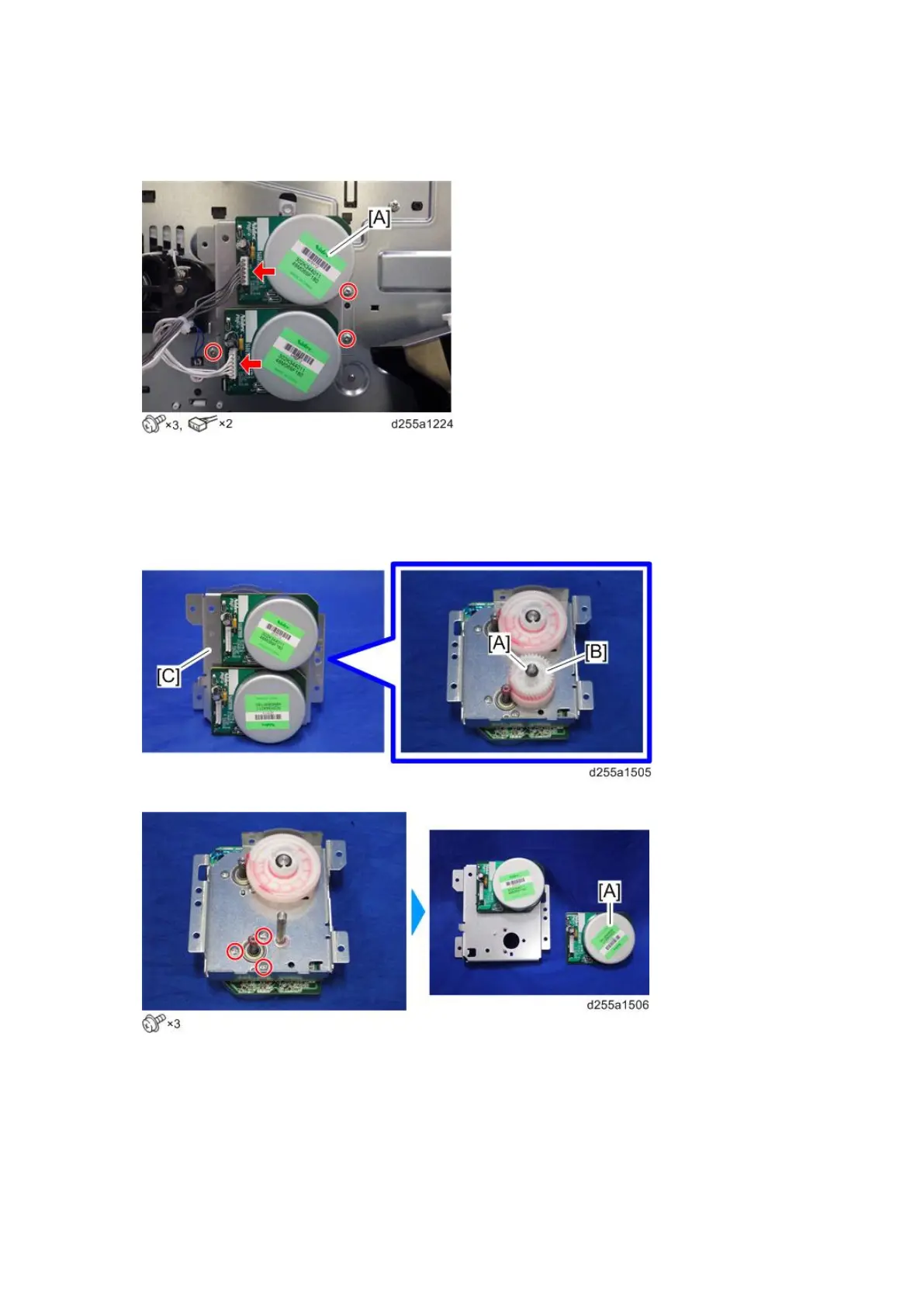

5. Remove the main drive unit [A].
Main Motor
1. Remove the main drive unit. (page 4-125)
2. Remove the clip [A] and gear [B] from the backside of the main drive unit [C].
3. Remove the main motor [A].
