Scanner
Uni
t (
MP 501/
601 O
nl
y)
D255/D256/
M281/M
282
4-
78
SM
4.1
0.2
SCANNER
C
ARRIAGE
1.
R
em
ov
e
the
ARDF
uni
t
.
(pag
e
4-
160
)

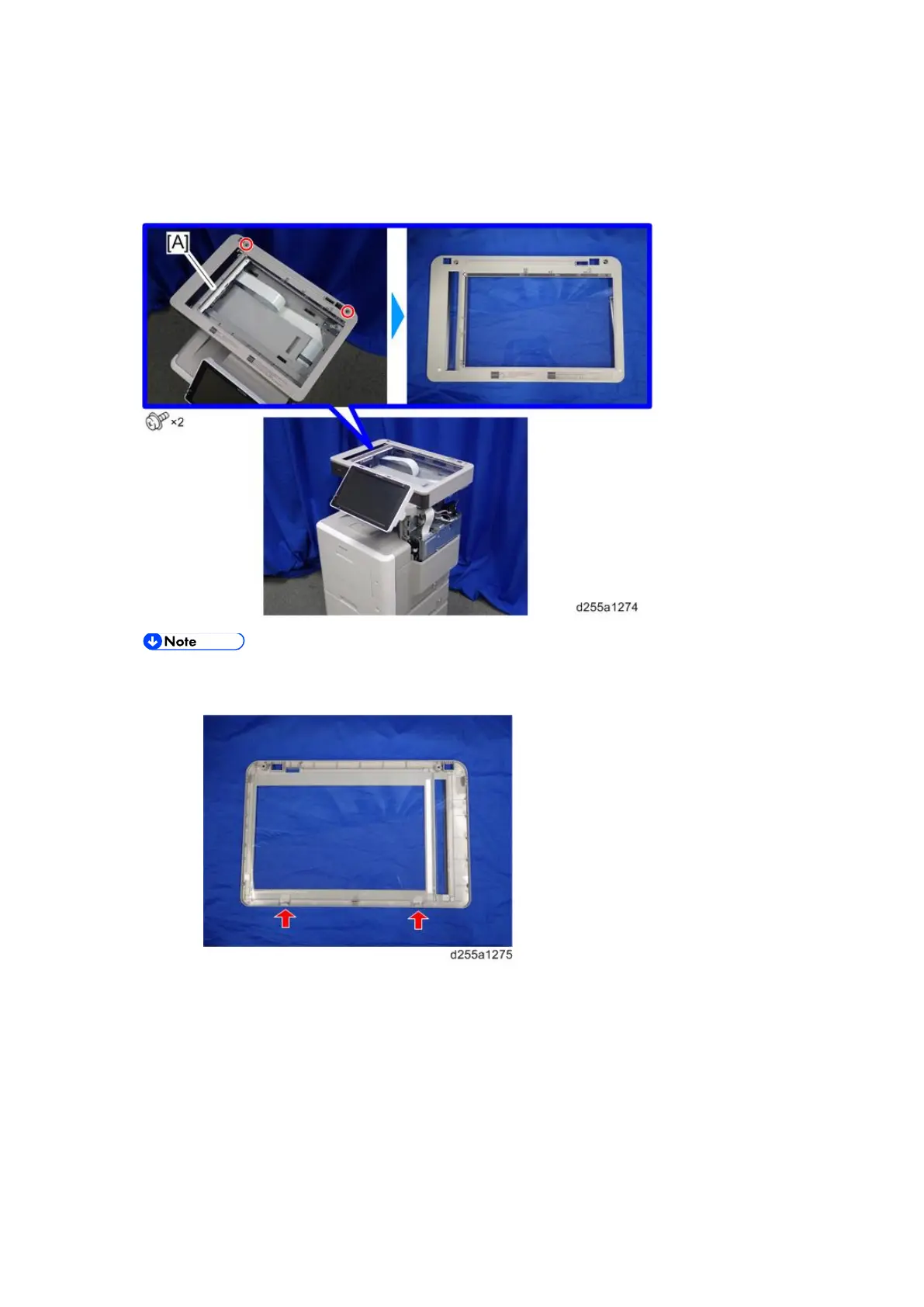

2.
Rem
ov
e
the
exposur
e
glass
[A].

Be
caref
ul
not
to
dam
ag
e
the
h
ooks
on
the
ins
ide
of
the
exp
osur
e
gl
ass
w
hen
yo
u
r
em
o
v
e
or
i
nstall
the
exp
osur
e
glass.
271
273
Table of Contents
D255/D256/M281/M282 SERVICE MANUAL
1
LEGEND & DOCUMENTATION HISTORY
4
TABLE OF CONTENTS
5
READ THIS FIRST
17
Symbols, Abbreviations and Trademarks
17
Trademarks
17
PRODUCT INFORMATION
23
MACHINE CODES AND PERIPHERALS CONFIGURATION
23
MAIN MACHINE
23
OPTIONS
24
INSTALLATION
29
INSTALLATION REQUIREMENTS
29
ENVIRONMENT
29
MACHINE LEVEL
30
MINIMUM SPACE REQUIREMENTS
30
MACHINE DIMENSIONS
31
POWER REQUIREMENTS
32
MAIN MACHINE INSTALLATION
33
INSTALLATION FLOWCHART ACCESSORY CHECK
33
MP 501/601
33
SP 5300/5310
35
INSTALLATION PROCEDURE
36
SMC STORAGE
36
IMPORTANT NOTICE ON SECURITY ISSUES (MP 501/601 ONLY)
37
SETTINGS ACCORDING TO THE SERVICE CONTRACT
42
Meter Click Charge
42
MOVING THE MACHINE
43
TRANSPORTING THE MACHINE
44
CASTER TABLE TYPE M24 (D3C7-01)
47
ACCESSORY CHECK
47
INSTALLATION PROCEDURE
49
When installing with the paper feed unit
49
PAPER FEED UNIT PB1100 (D3C2-01, 02)
50
ACCESSORY CHECK
50
INSTALLATION PROCEDURE
51
When installing with the caster table
51
Installing the optional paper feed unit on the caster table
51
When installing two or more optional paper feed units
57
Installing the main machine on the optional paper feed unit
60
OPTIONAL COUNTER INTERFACE UNIT TYPE M12 (B870-21) (MP 501/601 ONLY)
66
ACCESSORY CHECK
66
INSTALLATION PROCEDURE
66
NFC CARD READER TYPE M24 (D3CP-08) (MP 501/601 ONLY)
73
ACCESSORY CHECK
73
INSTALLATION PROCEDURE
74
ENHANCED SECURITY HDD OPTION TYPE M10 (D792-09)
88
ACCESSORY CHECK
88
INSTALLATION PROCEDURE (MP 501/601)
90
After Installing the HDD
107
INSTALLATION PROCEDURE (SP 5300/5310)
108
After Installing the HDD
120
HARD DISK DRIVE OPTION TYPE P8 (M500-05) (SP /5310 ONLY)
121
ACCESSORY CHECK
121
INSTALLATION PROCEDURE
122
After Installing the HDD
134
INTERNAL OPTIONS
135
LIST OF SLOTS
135
IEEE 1284 INTERFACE BOARD TYPE M19 (D3C0-17)
136
ACCESSORY CHECK
136
INSTALLATION PROCEDURE
136
IEEE 802.11 INTERFACE UNIT TYPE M24 (M500-08)
137
ACCESSORY CHECK
137
INSTALLATION PROCEDURE
137
BLUETOOTH INTERFACE UNIT TYPE D (D566-01) (MP /601 ONLY)
138
ACCESSORY CHECK
138
INSTALLATION PROCEDURE
138
USB DEVICE SERVER OPTION TYPE M19 (D3BC-28, )
139
ACCESSORY CHECK
139
Interface Board
139
INSTALLATION PROCEDURE
140
What Do the LED Indicators Mean?
143
Notes for Energy Save Mode Setting
143
IP Address Setting
144
Check All Connections
145
FILE FORMAT CONVERTER TYPE M19 (D3BR-04) (MP /601 ONLY)
146
ACCESSORY CHECK
146
INSTALLATION PROCEDURE
146
EXTENDED USB BOARD TYPE M19 (D3BS-01)
147
ACCESSORY CHECK
147
INSTALLATION PROCEDURE
147
SD CARD OPTIONS
148
SD CARD SLOTS
148
SD CARD APPLI MOVE
149
OVERVIEW
149
SD CARD APPLI MOVE
149
MOVE EXEC
150
UNDO EXEC
150
OCR UNIT TYPE M13 (D3AC-23, 24, 25) (MP 501/601 ONLY)
152
ACCESSORY CHECK
152
INSTALLATION PROCEDURE
152
RECOVERY PROCEDURE
156
XPS DIRECT PRINT OPTION TYPE M24 (D3CP-12)
157
ACCESSORY CHECK
157
INSTALLATION PROCEDURE
157
IPDS UNIT TYPE M24 (M500-02, 03, 04)
158
ACCESSORY CHECK
158
INSTALLATION PROCEDURE
158
VM CARD TYPE P8 (M500-09, 10, 11) (SP 5300/5310 ONLY)
159
ACCESSORY CHECK
159
INSTALLATION PROCEDURE
159
DATAOVERWRITESECURITY UNIT TYPE M19 (D3BS-03) (MP 501/601 ONLY)
160
OVERVIEW
160
ACCESSORY CHECK
160
BEFORE YOU BEGIN THE PROCEDURE
161
Seal Check and Removal
162
INSTALLATION PROCEDURE
163
CONFIGURING "AUTO ERASE MEMORY" (PERFORMED BY THE CUSTOMER)
166
SECURITY SETTING
168
SECURITY FUNCTION INSTALLATION
168
DATA OVERWRITE SECURITY (MP 501/601)
169
Before You Begin the Procedure
169
Using Auto Erase Memory
170
DATA OVERWRITE SECURITY (SP 5300/5310)
171
Before You Begin the Procedure
171
Using Auto Erase Memory
172
Checking the Auto Erase Memory Status
172
HDD ENCRYPTION (MP 501/601)
173
Before You Begin the Procedure:
173
Enable Encryption Setting
174
Backing Up the Encryption Key
176
Encryption Key Restoration
177
HDD ENCRYPTION (SP 5300/5310)
178
Before You Begin the Procedure:
178
Enable Encryption Setting
179
Backing Up the Encryption Key
180
Encryption Key Restoration
180
@REMOTE SETTINGS
183
OPERATION GUIDANCE FOR USERS
188
PREVENTIVE MAINTENANCE
191
YIELD PARTS SETTINGS
191
YIELD PARTS REPLACEMENT PROCEDURE
191
After installing the new yield parts
191
Operation check
192
REPLACEMENT AND ADJUSTMENT
195
NOTES ON THE MAIN POWER SWITCH
195
PUSH SWITCH
195
Characteristics of the Push Switch (DC Switch)
195
Shutdown Method
196
Forced Shutdown
196
BEFOREHAND
197
SPECIAL TOOLS
198
IMAGE ADJUSTMENT
199
PRINTING
199
Registration: Leading Edge/Side-to-Side
199
Blank Margin
200
Main Scan Magnification
201
SCANNING (MP 501/601 ONLY)
202
Registration: Platen Mode
202
ARDF IMAGE ADJUSTMENT (MP 501/601 ONLY)
203
Registration
203
FACTORY SP SETTINGS
204
MP 501/601
204
SP 5300/5310
206
EXTERIOR COVERS (MP 501/601)
208
SCANNER FRONT COVER
208
FRONT COVER
209
RIGHT UPPER COVER
214
RIGHT LOWER COVER
216
LEFT UPPER COVER
220
LEFT MIDDLE COVER
221
LEFT LOWER COVER
223
LEFT REAR COVER
224
REAR UPPER COVER
225
REAR MIDDLE COVER
227
REAR LOWER COVER
229
REAR CENTER STAY
230
REAR LEFT STAY
231
PAPER EXIT COVER
232
PAPER EXIT TRAY
233
CONTROLLER COVER
239
EXTERIOR COVERS (SP 5300/5310)
241
UPPER COVER
241
FRONT COVER
244
RIGHT COVER
248
LEFT UPPER COVER
252
LEFT LOWER COVER
254
LEFT REAR COVER
255
REAR UPPER COVER
256
REAR MIDDLE COVER
258
REAR LOWER COVER
260
CONTROLLER COVER
261
OPERATION PANEL (MP 501/601)
262
OPERATION PANEL
262
Before Installing the New Operation Panel
267
INTERNAL PARTS
267
OPERATION PANEL (SP 5300/5310)
268
OPERATION PANEL
268
OPU BOARD
269
SCANNER UNIT (MP 501/601 ONLY)
270
SCANNER UNIT
270
SCANNER CARRIAGE
272
LASER UNIT (MP 501/601)
276
CAUTION DECAL LOCATION
276
LASER UNIT
276
LASER UNIT (SP 5300/5310)
279
CAUTION DECAL LOCATION
279
LASER UNIT
279
DEVELOPMENT UNIT
282
DEVELOPMENT UNIT
282
AFTER REPLACEMENT OF DEVELOPMENT UNIT
284
DRUM UNIT
285
DRUM UNIT
285
CHARGE ROLLER
287
TRANSFER UNIT
289
TRANSFER ROLLER
289
DISCHARGE PLATE UNIT
291
FUSING UNIT
292
FUSING UNIT
292
PAPER EXIT UNIT (MP 501/601)
297
PAPER EXIT UNIT
297
PAPER EXIT UNIT (SP 5300/5310)
301
PAPER EXIT UNIT
301
PAPER FEED UNIT
305
PAPER FEED ROLLER, PICKUP ROLLER
305
SEPARATION ROLLER
306
BYPASS TRAY UNIT
308
BYPASS PAPER FEED ROLLER
308
DUPLEX UNIT
310
DUPLEX UNIT
310
DRIVE UNIT
317
PAPER FEED MOTOR
317
MAIN DRIVE UNIT
319
Main Motor
320
Drum Motor
321
ELECTRICAL COMPONENTS
322
CONTROLLER BOX
322
Controller Box (MP 501/601)
322
Controller Box (SP 5300/5310)
326
CONTROLLER BOARD
329
Controller Board (MP 501/601)
329
Controller Board (SP 5300/5310)
332
NVRAM on the controller board
335
BICU
338
Replacing the NVRAM (EEPROM) on the BiCU
339
IOB
341
IOB (MP 501/601)
341
IOB (SP 5300/5310)
342
Replacing the NVRAM (EEPROM) on the IOB
343
CONNECT-LEFT PCB
344
FUSING THERMISTOR CONNECTION PCB
346
POWER PACK
347
PSU
348
HDD (MP 501/601 ONLY)
350
Adjustment after Replacement
351
FANS
352
PSU FAN
352
DIRECTION OF INSTALLING THE FANS
353
ARDF (MP 501/601 ONLY)
354
ARDF UNIT
354
ARDF PAPER FEED ROLLER, ARDF PICKUP ROLLER
356
ARDF FRICTION PAD
357
ARDF INVERTER MOTOR
357
ARDF PAPER FEED MOTOR, ARDF PAPER TRANSPORT MOTOR
359
PAPER FEED UNIT (PAPER FEED UNIT PB1100)
362
PAPER FEED ROLLER, PICKUP ROLLER
362
SEPARATION ROLLER
363
MAIN BOARD
365
DRIVE UNIT
366
SYSTEM MAINTENANCE
371
FIRMWARE UPDATE
371
OVERVIEW
371
FIRMWARE TYPE
371
MP 501/601
371
SP 5300/5310
373
PROCEDURE
374
Update procedure (MP 501/601)
375
Update procedure (SP 5300/5310)
378
ERROR SCREENS DURING UPDATING
379
RFU UPDATING THE FIRMWARE
386
RFU PERFORMABLE CONDITION
386
PACKAGE FIRMWARE UPDATE (MP 501/601 ONLY)
387
OVERVIEW
387
IMMEDIATE UPDATE
388
UPDATE AT THE NEXT VISIT (RESERVE)
390
How to Set the Machine to Download Firmware Later (RESERVE)
391
How to Check if the Firmware Downloaded with RESERVE
393
How to Install Firmware Downloaded with RESERVE
394
UPDATE VIA SD CARD
397
UPDATING JAVAVM
399
MP 501/601
399
Creating an SD Card for Updating
399
Updating Procedure
399
List of Error Messages
400
SP 5300/5310
402
Deactivating SDK Applications
402
Updating JavaVM
403
Activating SDK Applications
404
CAPTURING THE DEBUG LOGS
405
OVERVIEW
405
Security of the Operation Log
407
RETRIEVING THE DEBUG LOGS
407
Procedure for Retrieving the Debug Log
407
NVRAM DATA UPLOAD/DOWNLOAD
410
UPLOADING CONTENT OF NVRAM TO AN SD CARD
410
DOWNLOADING AN SD CARD TO NVRAM
411
UP/SP DATA IMPORT/EXPORT
413
OVERVIEW
413
Import/export conditions
413
UP DATA IMPORT/EXPORT (MP 501/601)
413
Data that can be imported and exported
413
Data that cannot be imported or exported
413
Exporting Device Information
414
Importing Device Information
415
UP DATA IMPORT/EXPORT (SP 5300/5310)
416
Data that can be imported and exported
416
Data that cannot be imported or exported
416
Exporting Device Information
416
Importing Device Information
417
SP DATA IMPORT/EXPORT (MP 501/601)
418
Data that can be imported and exported
418
Exporting Device Information
418
Importing Device Information
420
SP DATA IMPORT/EXPORT (SP 5300/5310)
421
Data that can be imported and exported
421
Exporting Device Information
421
Importing Device Information
422
POSSIBLE SOLUTIONS FOR IMPORT/EXPORT PROBLEMS
423
ADDRESS BOOK UPLOAD/DOWNLOAD
425
INFORMATION LIST
425
DOWNLOAD
426
UPLOAD
427
SMC LIST CARD SAVE FUNCTION
428
OVERVIEW
428
SMC List Card Save
428
PROCEDURE
428
MP 501/601
428
SP 5300/5310
430
FILE NAMES OF THE SAVED SMC LISTS
431
ERROR MESSAGES
432
TEST PATTERN PRINTING
433
MP 501/601
433
SP 5300/5310
435
TROUBLESHOOTING
439
SELF-DIAGNOSTIC MODE
439
SERVICE CALL CODES
439
Service Call Conditions
439
SC LOGGING
440
SC AUTOMATIC REBOOT (MP 501/601)
440
SERVICE CALL 101-195
443
SC100 (ENGINE: SCANNING) (MP 501/601 ONLY)
443
SC100 (ENGINE: OTHERS)
451
SERVICE CALL 202-270
452
SC200 (ENGINE: IMAGE WRITING)
452
SERVICE CALL 303-396
454
SC300 (ENGINE: IMAGING 1: CHARGE, DEVELOPMENT)
454
SC300 (ENGINE: IMAGING 2: AROUND THE DRUM)
455
SERVICE CALL 490-491
457
SC400 (ENGINE: IMAGING 3: AROUND THE DRUM)
457
SERVICE CALL 501-582
461
SC500 (ENGINE: PAPER TRANSPORT 1: PAPER FEED, DUPLEX, TRANSPORT)
461
SC500 (ENGINE: PAPER TRANSPORT 2: FUSING, OTHERS)
471
SC500 (ENGINE: PAPER TRANSPORT 3: PAPER FEED, DUPLEX, TRANSPORT, FUSING)
482
SERVICE CALL 622-691
483
SC600 (ENGINE: COMMUNICATION AND OTHERS)
483
SC600 (CONTROLLER)
492
SERVICE CALL 700
496
SC700 (ENGINE: PERIPHERALS) (MP 501/601 ONLY)
496
SERVICE CALL 816-899
498
SC800 (CONTROLLER)
498
SERVICE CALL 900-998
526
SC900 (ENGINE: OTHERS)
526
SC900 (CONTROLLER)
528
JAM DETECTION
531
PAPER JAM DISPLAY
531
JAM CODES AND DISPLAY CODES
531
SENSOR LAYOUT
538
MP 501/601
538
SP 5300/5310
539
PAPER SIZE CODES
541
TROUBLESHOOTING GUIDE
543
IMAGE QUALITY
543
Skewed image
543
Toner sticking to the right side area on the second side of the paper
543
Image quality failure due to the fixing failure
545
Toner scattered
546
Black or White spots repeat at 30mm or 96mm intervals
549
PAPER TRANSPORT
550
Paper jam occurred in the paper path between Tray 1 and around the registration roller
550
Paper jam (J001) occurred after removing the jammed paper from the registration section
552
Non-feed jam in ARDF (MP 501/601 Only)
554
OTHERS
554
Troubles that can be improved by executing drum refresh mode
554
Problem at regular intervals
555
SC670 (engine start up error) is displayed
556
SC672 (Controller start up error) is displayed
557
DETAILED DESCRIPTIONS
565
PRODUCT OVERVIEW
565
MP 501/601 COMPONENT LAYOUT / PAPER PATH
565
SP 5300/5310 Component Layout / Paper Path
567
PARTS LAYOUT
568
MP 501/601 Switches & Sensors
568
SP 5300/5310 Switches & Sensors
570
MP 501/601 Drive unit, Fans
571
SP 5300/5310 Drive unit, Fans
572
MP 501/601 Electrical Components
573
SP 5300/5310 Electrical Components
575
MP 501/601 Others
576
SP 5300/5310 Others
577
SCANNER UNIT (MP 501/601 ONLY)
578
LASER UNIT
579
DEVELOPMENT UNIT
580
DRUM UNIT
581
DRUM
581
CLEANING UNIT
582
TRANSFER UNIT
583
FUSING UNIT
584
PAPER EXIT UNIT
586
DUPLEX UNIT
588
PAPER FEED UNIT
589
BYPASS TRAY UNIT
591
ARDF (MP 501/601 ONLY)
592
ORIGINAL FEED SECTION
592
ORIGINAL TRANSPORT SECTION AND EXIT SECTION
594
ENERGY SAVE
596
ENERGY SAVER MODES
596
Timer Settings
596
Return to Stand-by Mode
596
Recommendation
597
Energy Save Effectiveness
597
D255/D256/M281/M282 SERVICE MANUAL APPENDICES
599
TABLE OF CONTENTS
601
SPECIFICATIONS
607
GENERAL SPECIFICATIONS (MP 501/601)
607
MAINFRAME
607
COPIER SPECIFICATIONS
611
PRINTER SPECIFICATIONS
614
SCAN SPECIFICATIONS
615
Scan to Email
617
Scan to Folder
618
Network TWAIN Driver
620
GENERAL SPECIFICATIONS (SP 5300/5310)
621
MAINFRAME
621
SUPPORTED PAPER SIZES
625
PAPER FEED
625
SOFTWARE ACCESSORIES
627
PRINTER DRIVERS
627
Windows
627
Mac OS Environment
629
UNIX Environment
629
SAP R/3 Environment (Device Type / Barcode & OCR Package)
629
SCANNER AND LAN FAX DRIVERS
630
OPTIONAL EQUIPMENT
631
PAPER FEED UNIT PB1100
631
PREVENTIVE MAINTENANCE TABLES
635
MAINTENANCE TABLES
635
PREVENTIVE MAINTENANCE ITEMS
635
Mainframe
635
Paper Feed Unit PB1100
637
SP MODE TABLES
641
SERVICE PROGRAM MODE
641
ENABLING AND DISABLING SERVICE PROGRAM MODE
641
Entering SP Mode
641
Exiting SP Mode
641
TYPES OF SP MODES
641
SP Mode Button Summary
642
Switching Between SP Mode and Copy Mode for Test Printing (MP 501/601 Only)
643
Selecting the Program Number (MP 501/601 Only)
643
Service Mode Lock/Unlock
644
REMARKS
645
Display on the Operation Panel Screen
645
Others
646
MAIN SP TABLES-1
647
SP1-XXX (FEED)
647
MAIN SP TABLES-2
650
SP2-XXX (DRUM)
650
MAIN SP TABLES-3
651
SP3-XXX (PROCESS)
651
MAIN SP TABLES-4
653
SP4-XXX (SCANNER)
653
MAIN SP TABLES-5 (ENGINE)
659
SP5-XXX (MODE)
659
MAIN SP TABLES-5 (CONTROLLER)
662
SP5-XXX (MODE)
662
MAIN SP TABLES-6 (MP 501/601 ONLY)
707
SP6-XXX (PERIPHERALS)
707
MAIN SP TABLES-7 (ENGINE)
708
SP7-XXX (DATA LOG)
708
MAIN SP TABLES-7 (CONTROLLER)
711
SP7-XXX (DATA LOG)
711
MAIN SP TABLES-8
736
SP8-XXX (DATA LOG2)
736
PRINTER SERVICE MODE
790
PRINTER SERVICE MODE
790
SCANNER SERVICE MODE (MP 501/601 ONLY)
802
SP1-XXX
802
SP2-XXX
803
INPUT AND OUTPUT CHECK
805
INPUT CHECK TABLE (SP5-803)
805
OUTPUT CHECK TABLE (SP5-804)
805
SOFTWARE CONFIGURATION
809
PRINTING FEATURES
809
BEHAVIOR OF USB PRINTER DETECTION
809
AUTO PDL DETECTION FUNCTION
809
Overview
809
Conditions for detection of the PDL
809
PDL detection by the printer system, PCL interpreter and PS interpreter
810
PDL selection and switching
811
Triggers
811
Some possible problems
813
Printer Bit Switch description
813
PRINT IMAGES ROTATION
814
Printer Bit Switch description
814
PJL USTATUS
815
Printer Bit Switch description
815
SCANNER FEATURES (MP 501/601 ONLY)
818
DISPLAY SETTINGS OF RECENTLY USED SCAN DESTINATION
818
THE SETTING OF SMTP AUTHENTICATION IN SCAN TO EMAIL
819
Typical example
819
THE QUALIFICATION SWITCHING OF SCAN TO FOLDER
821
MANAGEMENT FEATURES
823
HOW TO DISABLE THE DOCUMENT SERVER FUNCTION
823
SECURITY FEATURES
824
HOW TO RESTRICT ACCESS TO THE WIM JOB MENU
824
HOW TO RESTRICT WEB IMAGE MONITOR ACCESS TO THE DOCUMENT SERVER (MP 501/601 ONLY)
824
USER AUTHENTICATION FOR SPECIFIC MFP APPLICATIONS
826
D255/D256 FAX OPTION
827
TABLE OF CONTENTS
829
READ THIS FIRST
833
Symbols and Abbreviations
833
Conventions Used in this Manual
833
Cautions, Notes, etc.
833
INSTALLATION
835
FAX CONNECTION UNIT TYPE M24 (D3CP-05, 06, 07)
835
ACCESSORY CHECK
835
INSTALLATION PROCEDURE
835
Installing the fax connection unit
836
Registering the client machine(s)
838
Registering the remote machine
840
Configuring the remote reception settings
841
Remote fax icon addition for remote machine
843
REPLACEMENT AND ADJUSTMENT
844
FCU
844
SRAM DATA TRANSFER PROCEDURE
844
When replacing the Fax modular cable
855
TROUBLESHOOTING
856
ERROR CODES
856
ERROR CODES
856
FAX CONNECTION UNIT ERROR CODES
879
FAX CONNECTION UNIT ERROR CODE LIST
879
MACHINE_ERR_01
879
MACHINE_ERR_02
879
MACHINE_ERR_03
880
MACHINE_ERR_04
880
MACHINE_ERR_05
880
MACHINE_ERR_06
881
MACHINE_ERR_07
881
MACHINE_ERR_08
881
IFAX TROUBLESHOOTING
882
IFAX TROUBLESHOOTING
882
IP-FAX TROUBLESHOOTING
885
IP-FAX TRANSMISSION
885
Cannot send by IP Address/Host Name
885
Cannot send via VoIP Gateway
886
Cannot send by Alias Fax number
887
IP-FAX RECEPTION
888
Cannot receive via IP Address/Host Name
888
Cannot receive by VoIP Gateway
889
Cannot receive by Alias Fax number
889
SERVICE TABLES
892
SERVICE PROGRAM TABLES
892
SP1-XXX (BIT SWITCHES)
892
SP2-XXX (RAM)
893
SP3-XXX (MACHINE SET)
894
SP4-XXX (ROM VERSIONS)
895
SP5-XXX (RAM CLEAR)
895
SP6-XXX (REPORTS)
896
SP7-XXX (TESTS)
898
BIT SWITCHES - 1
899
SYSTEM SWITCHES
899
BIT SWITCHES - 2
914
I-FAX SWITCHES
914
PRINTER SWITCHES
921
BIT SWITCHES - 3
929
COMMUNICATION SWITCHES
929
BIT SWITCHES - 4
939
G3 SWITCHES
939
BIT SWITCHES - 5
949
IP FAX SWITCHES
949
NCU PARAMETERS
958
DEDICATED TRANSMISSION PARAMETERS
962
PROGRAMMING PROCEDURE
962
PARAMETERS
962
Fax Parameters
962
E-mail Parameters
966
SERVICE RAM ADDRESSES
970
SERVICE RAM ADDRESSES
970
DETAILED SECTION DESCRIPTIONS
982
OVERVIEW
982
BOARDS
983
FCU
983
FACE3.5 (Fax Application Control Engine)
983
Modem (FAME2)
983
DRAM
983
SAF Memory Back-up
984
ROM
984
SRAM
984
SRAM Back-up
984
Switches
984
CPU
984
VIDEO DATA PATH
985
TRANSMISSION
985
Memory Transmission and Parallel Memory Transmission
985
Immediate Transmission
986
JBIG Transmission
986
RECEPTION
986
FAX COMMUNICATION FEATURES
988
DOCUMENT SERVER
988
INTERNET MAIL COMMUNICATION
989
Mail Transmission
989
Data Formats
989
Direct SMTP Transmission
990
Selectable Options
990
Secure Internet Transmission
990
Mail Reception
991
POP3/IMAP4 Mail Reception Procedure
991
SMTP Reception
991
Mail Delivery Conditions: Transferring Mail Received With SMTP
991
Auth. E-mail RX
992
Handling Mail Reception Errors
992
Remaining SAF capacity error
993
Secure Internet Reception
993
Transfer Request: Request By Mail
993
E-Mail Options (Sub TX Mode)
994
Subject and Level of Importance
994
How the Subject Differs According to Mail Type
994
Subjects Displayed on the PC E-mail Messages
995
Message Disposition Notification (MDN)
996
Handling Reports
996
Report Sample
997
IP-FAX
998
WHAT IS IP-FAX?
998
T.38 PACKET FORMAT
998
UDP Related Switches
998
SETTINGS
998
SPECIFICATIONS
999
GENERAL SPECIFICATIONS
999
FCU
999
CAPABILITIES OF PROGRAMMABLE ITEMS
1000
IFAX SPECIFICATIONS
1001
IP-FAX SPECIFICATIONS
1002
FAX UNIT CONFIGURATION
1003
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Ricoh M281 Series and is the answer not in the manual?
Ask a question
Ricoh M281 Series Specifications
General
Brand
Ricoh
Model
M281 Series
Category
Copier
Language
English
Related product manuals
Ricoh MD-P2
356 pages
Ricoh MP 2001L
120 pages
Ricoh MP C4504
24 pages
Ricoh MP 1813L
120 pages
Ricoh MP 2501L
120 pages
Ricoh MPC 2050
1171 pages
Ricoh MP 401 spf
224 pages
Ricoh Aficio MP171
260 pages
Ricoh MP C2004 series
36 pages
Ricoh Aficio MP C3000
166 pages
Ricoh MP C2504 series
36 pages
Ricoh Aficio C3002
244 pages
To Next PageTo Next PageTo Previous PageTo Previous Page
Loading...
Need help?
General
