Ricoh M281 Series User Manual

Paper Exit Unit (SP 5300/5310)
SM 4-107 D255/D256/M281/M282
Replacement
and Adjustment
4.18 PAPER EXIT UNIT (SP 5300/5310)
4.18.1 PAPER EXIT UNIT
1. Remove the following covers.
 Left lower cover (page 4-60)
 Controller box (page 4-132)

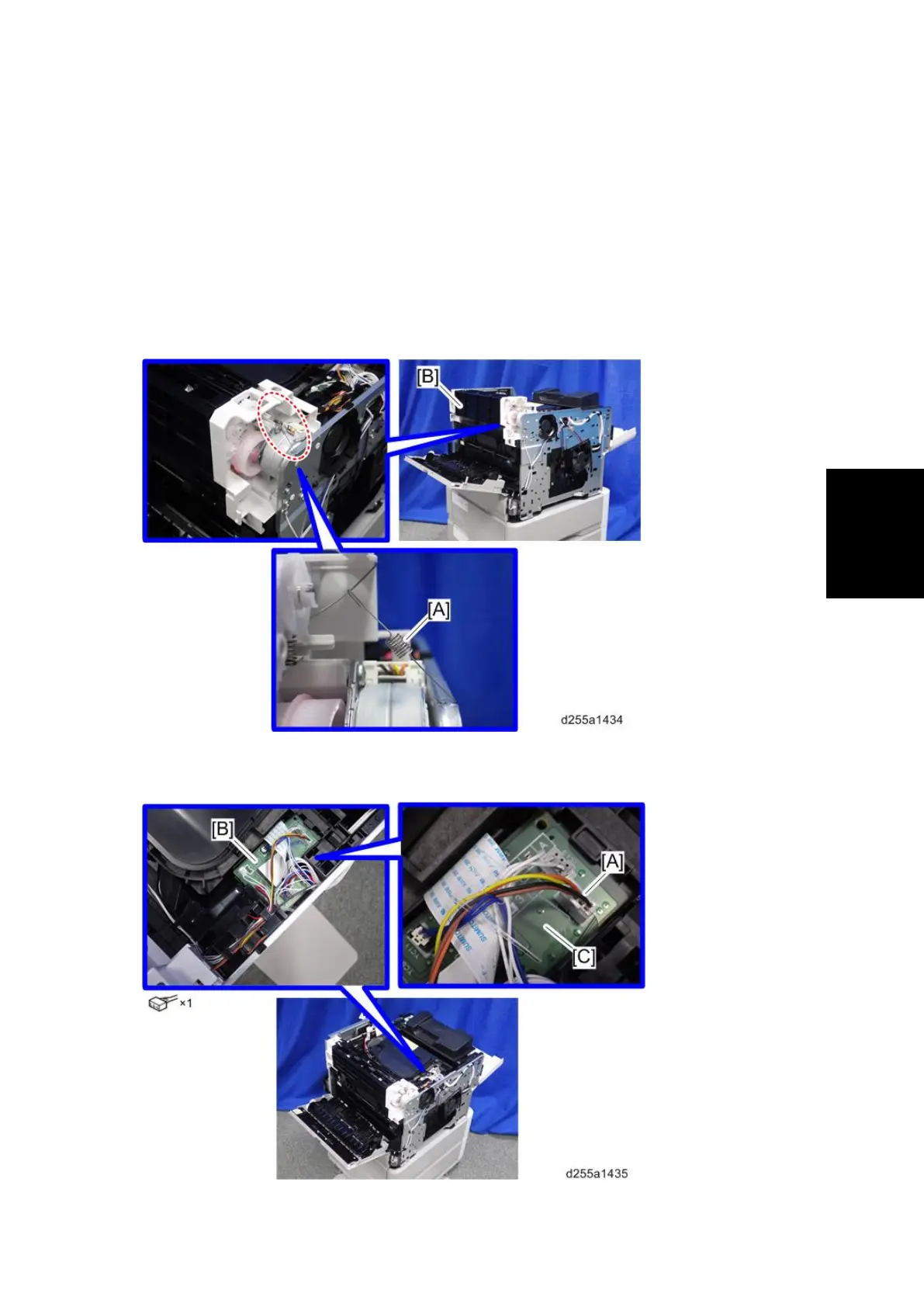

2. Remove the spring [A] from the paper exit unit [B].
3. Disconnect the connector [A] from the Connect-Left PCB [B], and then release it from
the plastic harness guide [C].
