Drive Unit
SM 4-127 D255/D256/M281/M282
Replacement
and Adjustment
Drum Motor

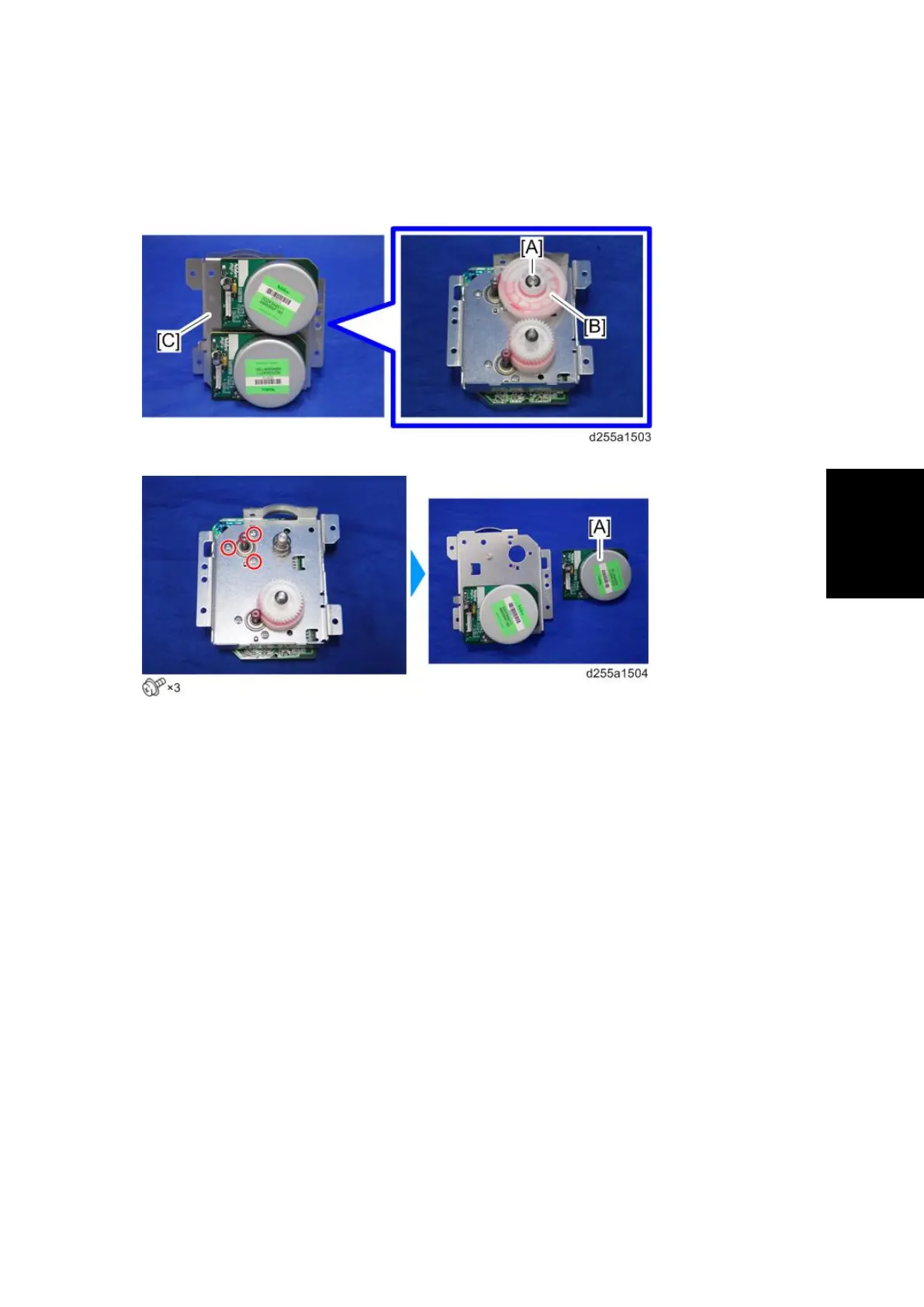

1. Remove the main drive unit. (page 4-125)
2. Remove the clip [A] and gear [B] from the backside of the main drive unit [C].
3. Remove the drum motor [A].
