Paper Exit Unit
D255/D256/M281/M282 7-22 SM
7.8 PAPER EXIT UNIT

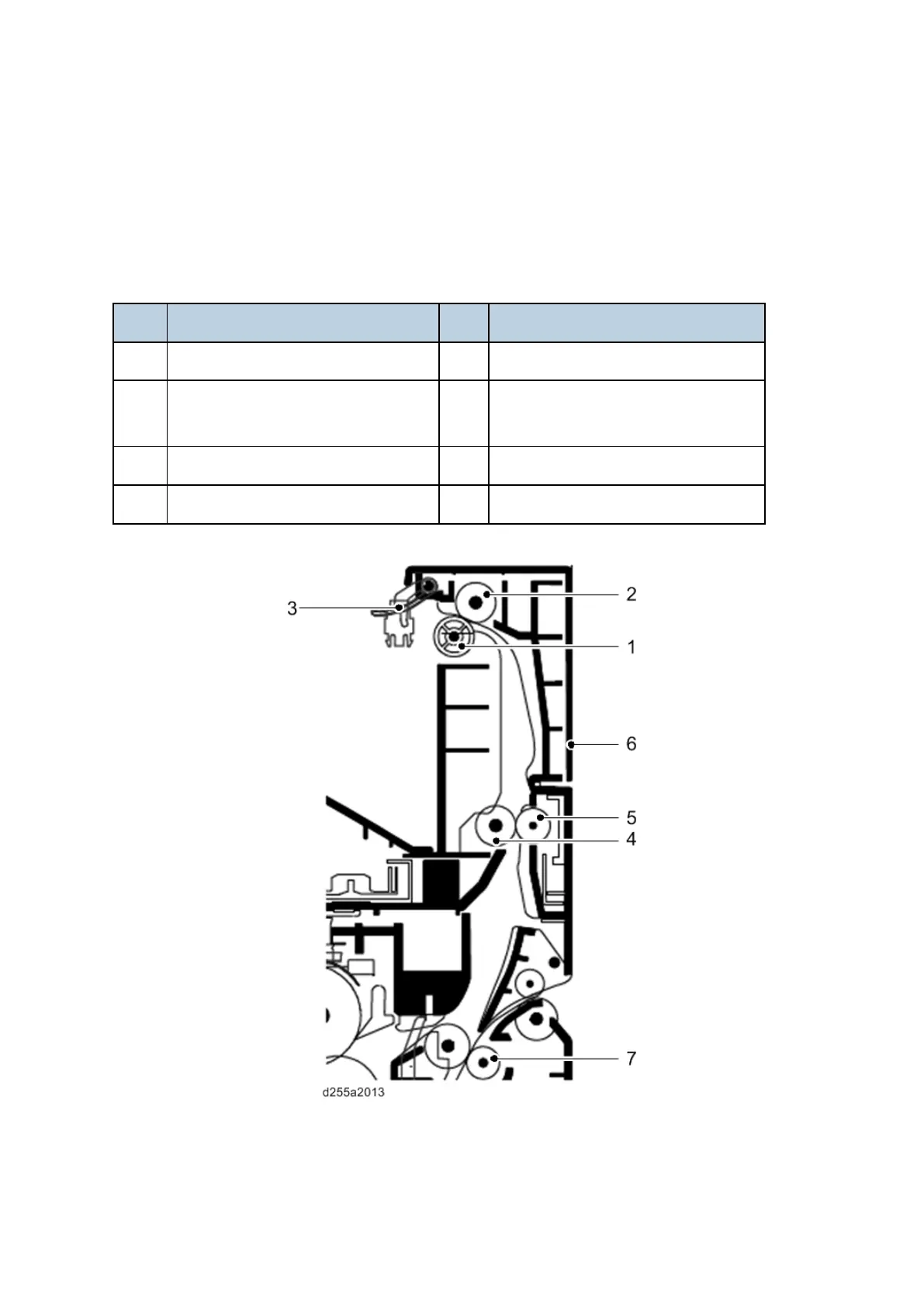

The paper exit unit consists of the transport path which sends the paper from the fusing unit to the
paper exit tray, and the transport path which sends the paper to the duplex unit when duplex
printing.
No. Name No. Name
1 Upper paper exit pulley 5 Lower paper exit pulley
2 Upper paper exit roller 6
MP 501/601: Paper exit cover
SP 5300/5310: Upper cover
3 Actuator (paper tray full sensor) 7 Duplex feed pulley
4 Lower paper exit roller
