Laser Unit (SP 5300/5310)
SM 4-85 D255/D256/M281/M282
and Adjustment
4.12 LASER UNIT (SP 5300/5310)
 Turn OFF the main power and unplug the machine before beginning any of the
procedures in this section. Laser beams can cause serious eye injury.

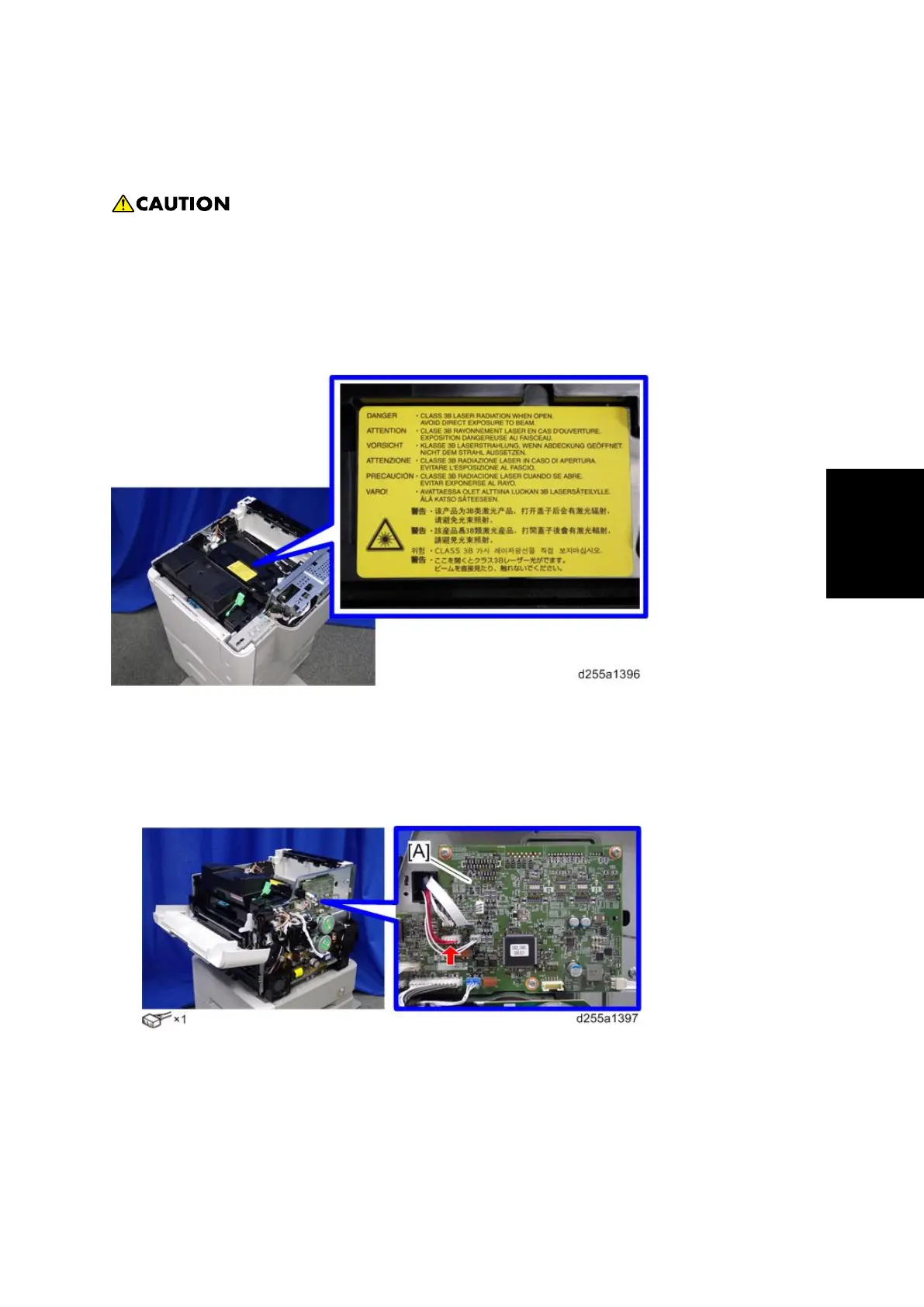

4.12.1 CAUTION DECAL LOCATION
The caution decal is attached as shown below.
4.12.2 LASER UNIT
1. Remove the controller box. (page 4-132)
2. Disconnect the red connector from IOB [A].
To Next Page
