Address Book Upload/Download
SM 5-57 D255/D256/M281/M282
Maintenance
5.8.3 UPLOAD
1. Turn OFF the main power.
2. Remove the controller cover. (MP 501/601: page 4-45, SP 5300/5310: page 4-67)

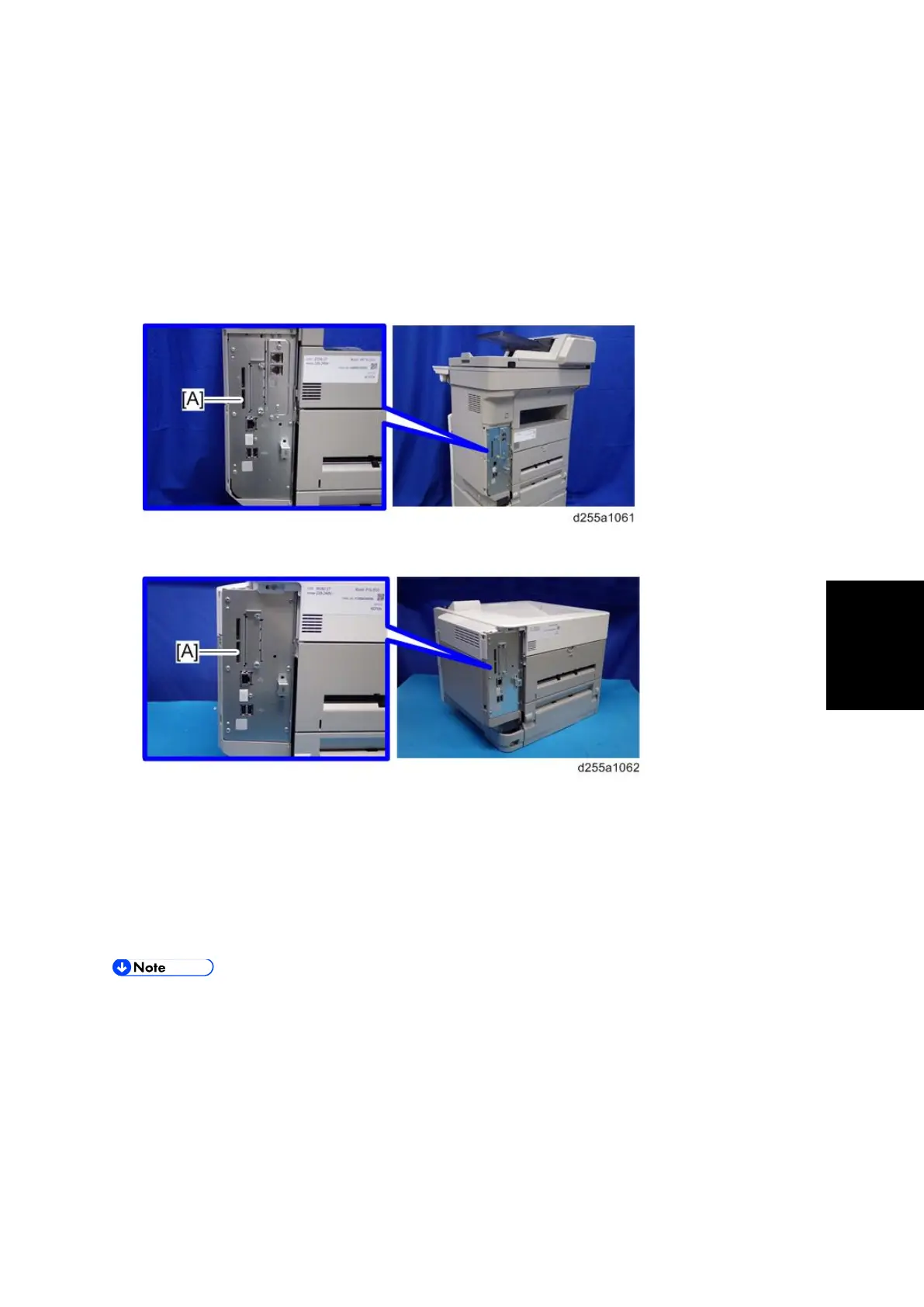

3. Install the SD card, which has already been uploaded, into the SD Card Slot 2 (lower)
[A].
MP 501/601
SP 5300/5310
4. Turn ON the main power.
5. Enter the SP mode.
6. Execute SP5-846-052 (Restore All Addr Book).
7. Exit the SP mode, and then turn OFF the main power.
8. Remove the SD card from the SD Card Slot 2 (lower).
9. Reassemble the machine.
 The counter in the user code information is initialized after uploading.
 The information of an administrator and supervisor cannot be downloaded nor uploaded.
 If there is no data of address book information in the SD card, an error message is
displayed.
