Paper Feed Unit
SM 7-25 D255/D256/M281/M282
Detailed
Descriptions

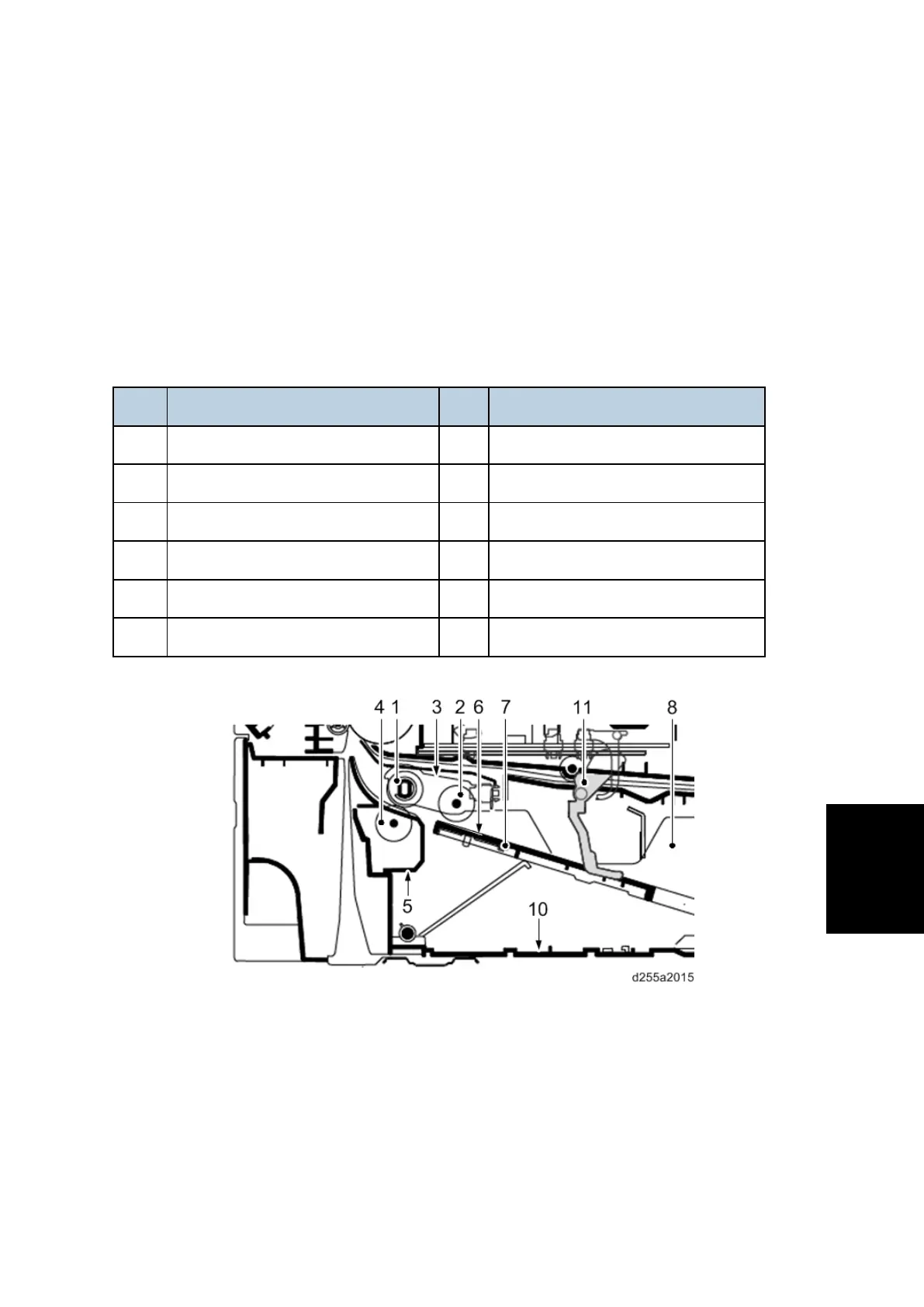

7.10 PAPER FEED UNIT
The paper feed unit consists of the paper feed section that feeds paper from the cassette, the
bypass tray, and the paper transport section that conveys the fed paper to the transportation
section.
The cassette can contain 500 sheets. The sheet from the cassette is pulled out by rotation of the
pickup roller and sent to the transportation section by rotation of the paper feed roller. The
separation roller prevents multiple feeding.
No. Name No. Name
1 Paper feed roller 7 Bottom plate
2 Pickup roller 8 Paper width guide
3 Feed roller holder 9 Paper length guide
4 Separation roller 10 Cassette base
5 Separation roller holder 11 Actuator (paper end sensor)
6 Friction pad
