Image Adjustment
SM 4-5 D255/D256/M281/M282
Replacement
and Adjustment
4.4 IMAGE ADJUSTMENT
4.4.1 PRINTING
 Make sure the paper is set correctly in each paper tray before you start these
adjustments.
 Use Trimming Area Pattern (SP2-109-003, No.14) to print the test pattern for the
following procedures.
 Set SP2-109-003 to "0" again after completing these printing adjustments.

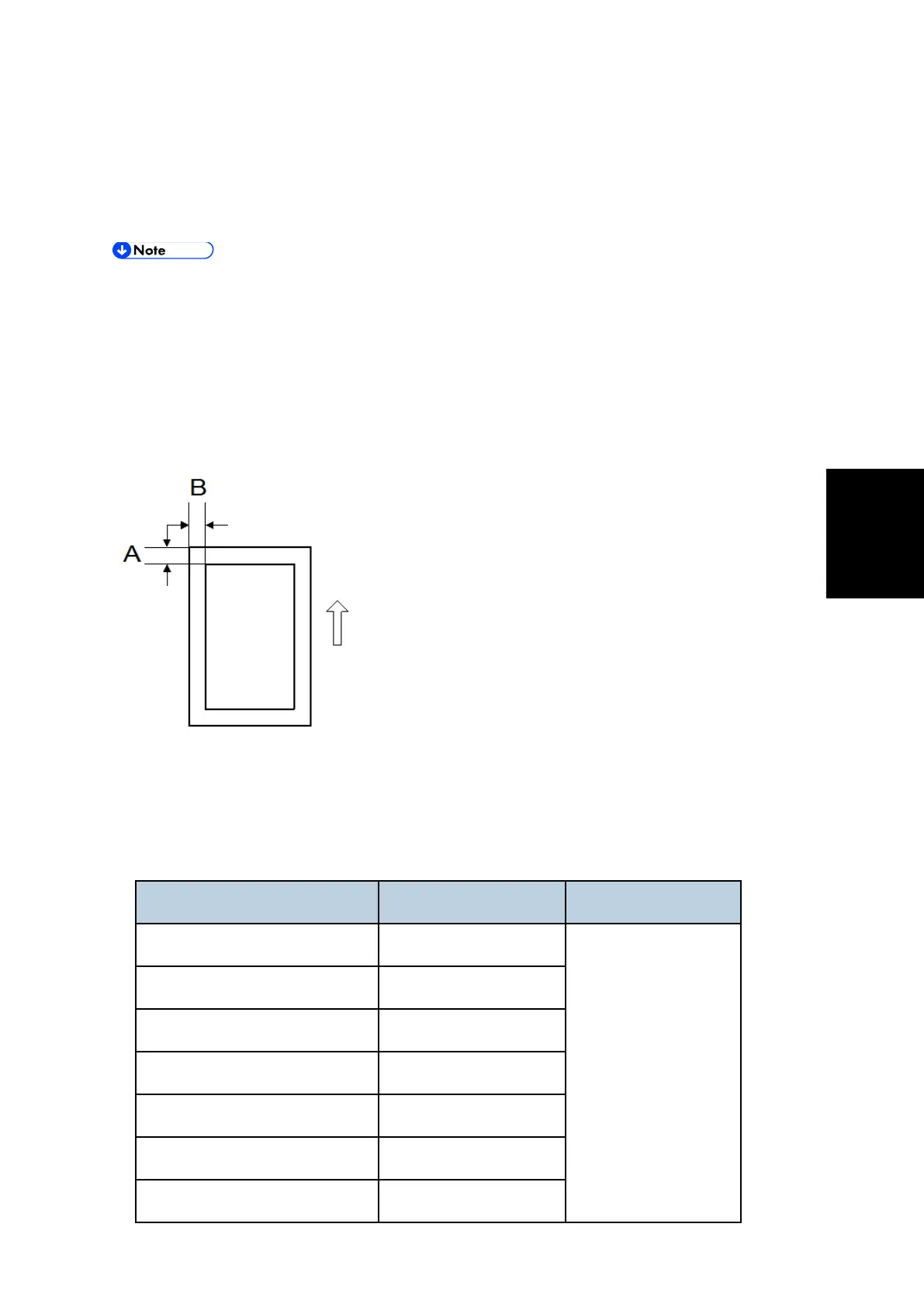

Registration: Leading Edge/Side-to-Side
A: Leading Edge Registration (4 ± 2.5 mm)
B: Side-to-side Registration (4 ± 2.5 mm)
1. Check the leading edge registration [A] for each paper feed station, and adjust them
using SP1-001.
Paper Feed Station SP No. Adjustment Range
Tray 1 (Main unit) SP1-001-001
4±2.5 mm
Tray 2 (Optional tray) SP1-001-002
Tray 3 (Optional tray) SP1-001-003
Tray 4 (Optional tray) SP1-001-004
Tray 5 (Optional tray) SP1-001-005
Bypass Tray SP1-001-006
Duplex Tray SP1-001-007
