Trilithic 180 DSP User Manual

www.trilithic.com
Page II-36
180 DSP Operation Manual
Signal Level Meter

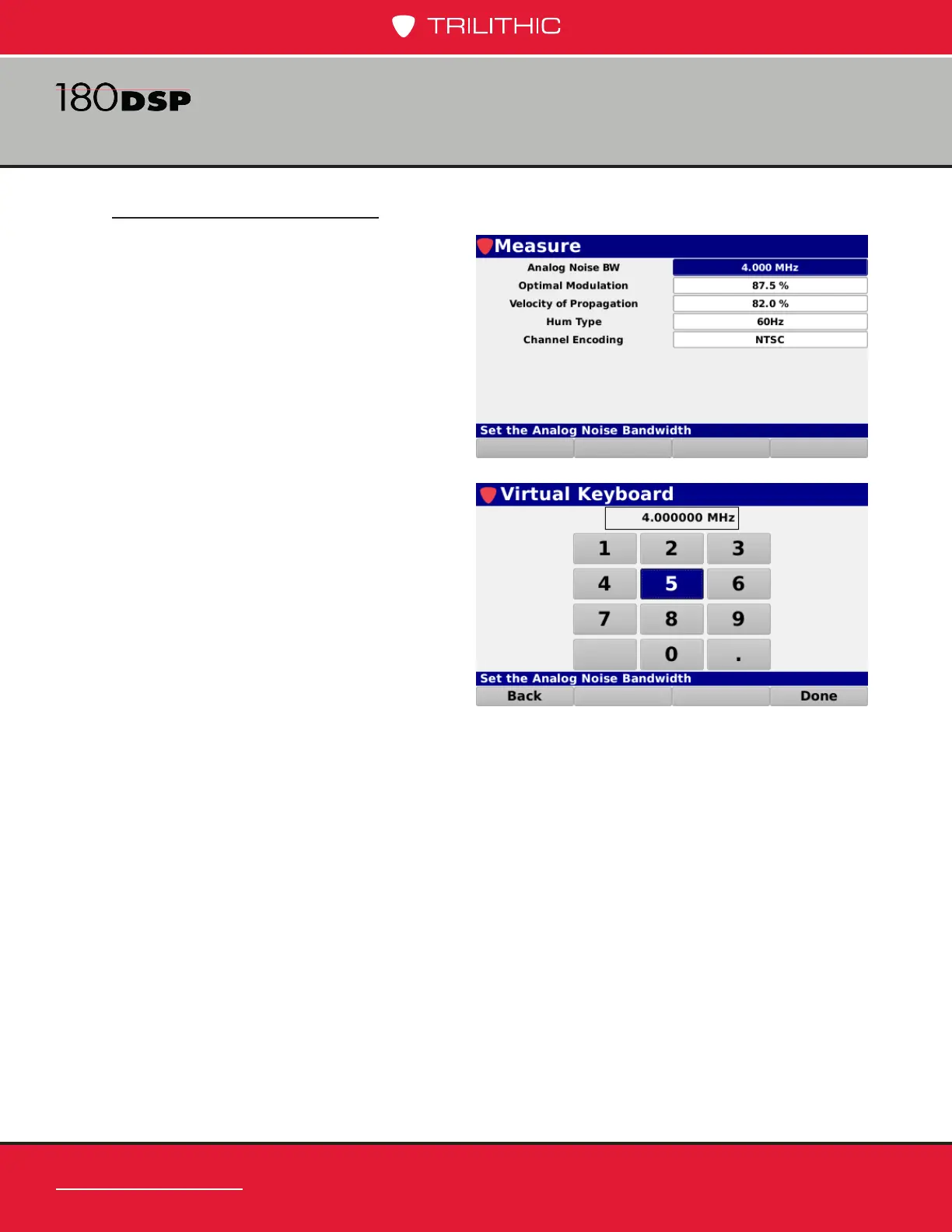

Analog Noise Bandwidth
The Analog Noise BW setting is used to
set the noise bandwidth that is used when
computing C/N for analog TV channels.
The default setting for the analog noise
bandwidth is 4.000 MHz. The analog
noise bandwidth can be set from a
minimum of 0.100 MHz up to a maximum
of 9.000 MHz.
Use either of the following methods to
change the analog noise bandwidth:
• Use the up/down arrow buttons
to change the value in 0.1 MHz
increments.
• Press the Enter button and use the
Virtual Keyboard to directly enter
the analog noise bandwidth as
shown in the image to the right.
