www.trilithic.com
Page IV-44
180 DSP Operation Manual
Signal Level Meter
Vertical Scale Adjustment

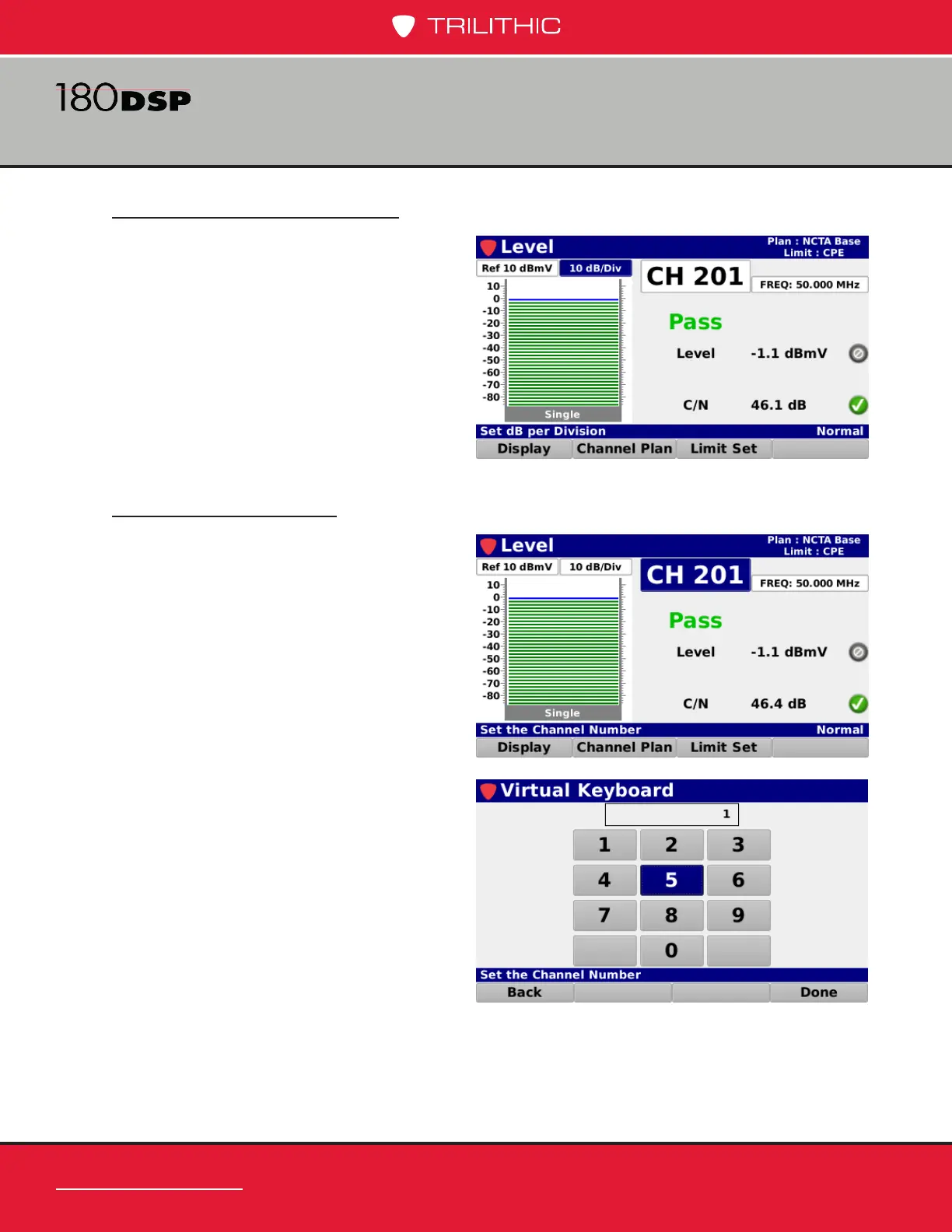

Highlight the vertical scale eld as shown
in the image to the right. Then, use the
up/down arrow buttons to select from a
vertical scale of 1, 2, 5 or 10 dB/div.
Channel Adjustment
Highlight the channel eld as shown in
the image to the right and then use either
of the following methods to change the
channel number:
• Use the up/down arrow buttons to
change the channel number in 1
channel increments.
• Press the Enter button and use the
Virtual Keyboard to directly enter
the channel number as shown in
the image to the right.
