Reference Level Adjustment
The reference level can be adjusted from
-40 to 60 dBmV and is the highest value
displayed on the bar graph. Highlight the

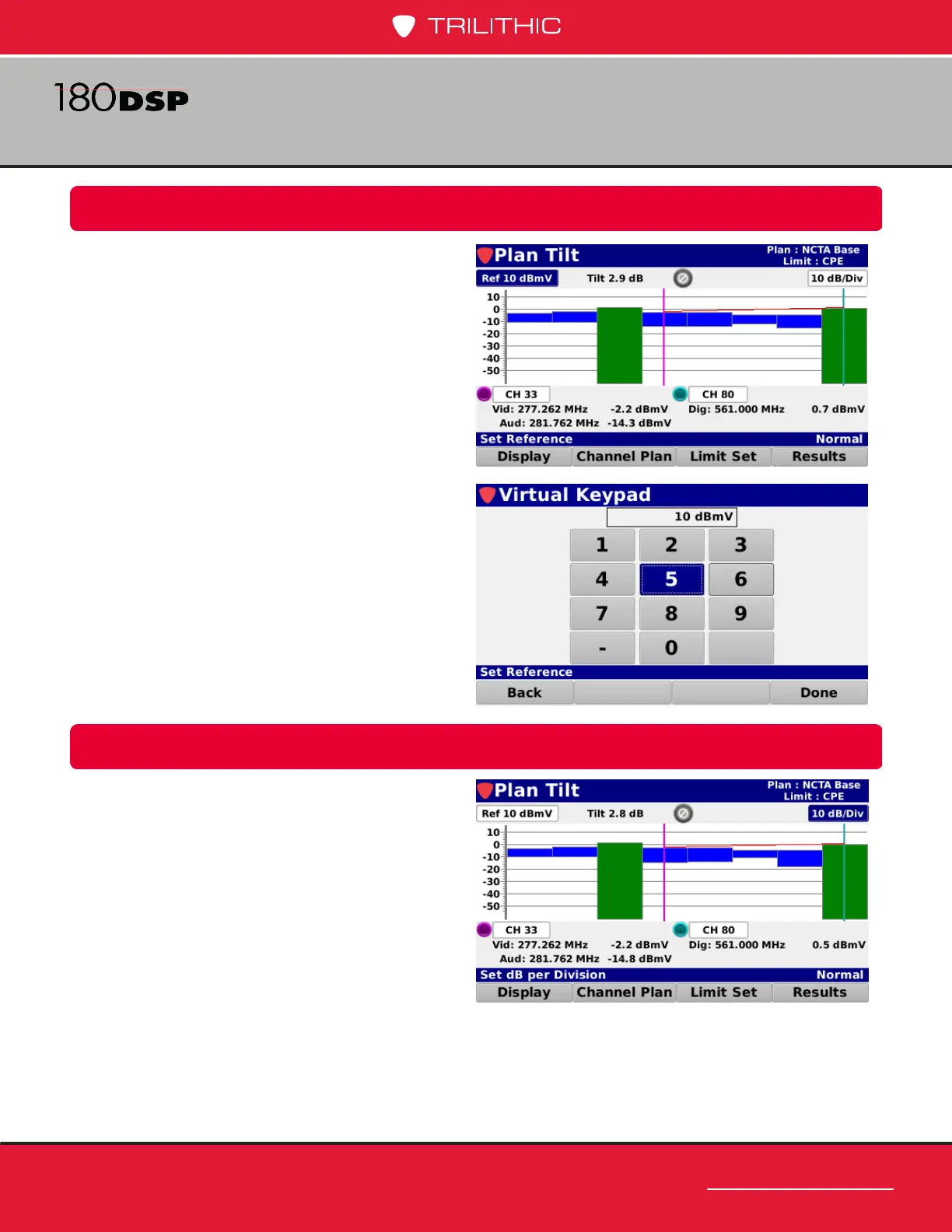

reference level eld as shown in the image to
the right and then use either of the following
methods to change the reference level:
• Use the up/down arrow buttons to
change the reference level in 1 dBmV
increments.
• Press the Enter button and use the
Virtual Keyboard to directly enter the
reference level as shown in the image
to the right.
Vertical Scale Adjustment
Highlight the vertical scale eld as shown in
the image to the right. Then, use the up/down
arrow buttons to select from a vertical scale
of 1, 2, 5 or 10 dB/div.
