Signal Level Meter

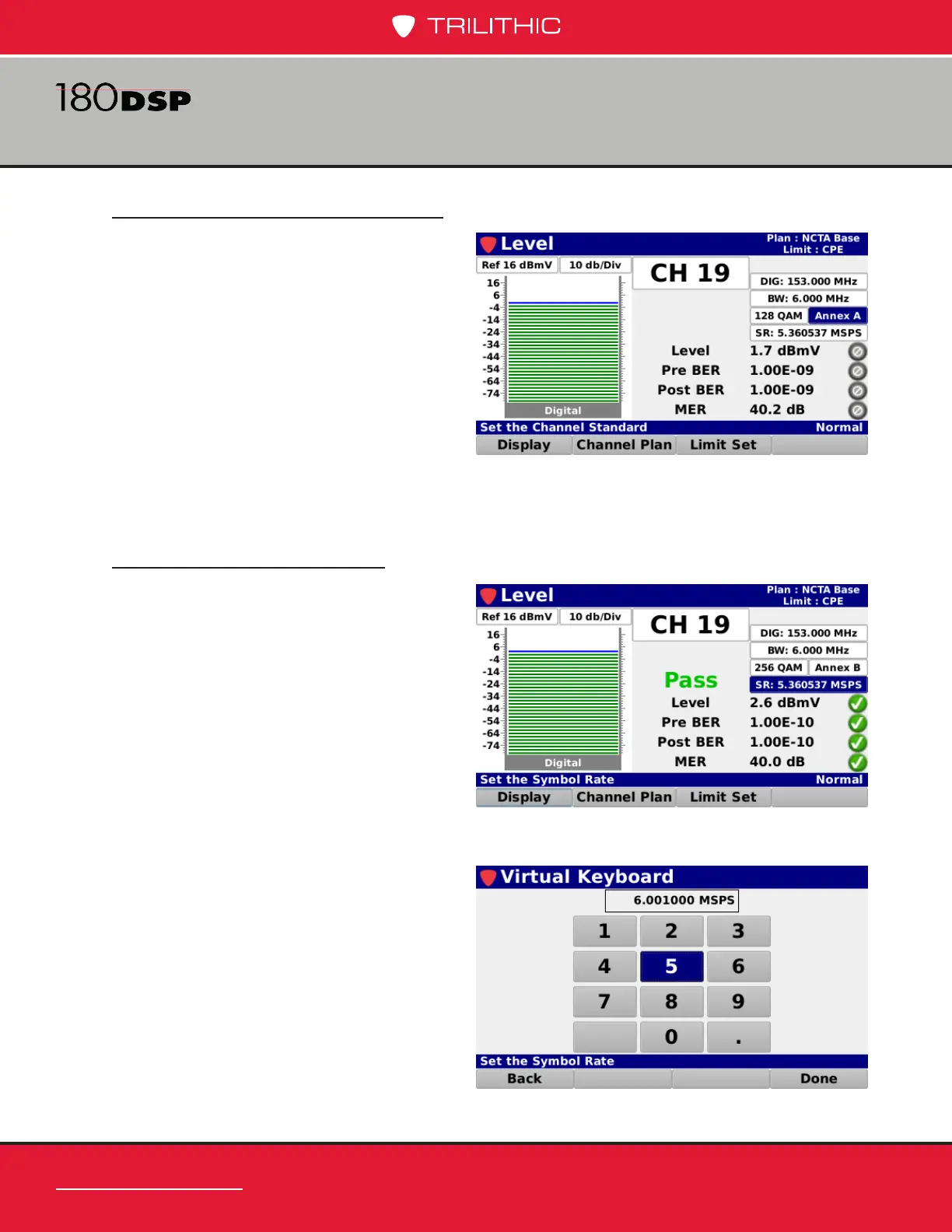

Channel Standard Adjustment
Highlight the channel standard eld as
shown in the image to the right. Then,
use the up/down arrow buttons to select
Arbitrary, Annex A, Annex B,
or Annex C.
Symbol Rate Adjustment
Highlight the symbol rate eld as shown in
the image to the right and then use either
of the following methods to change the
symbol rate:
• Use the up/down arrow buttons to
change the rate in 0.001 MSPS
increments.
• Press the Enter button and use the
Virtual Keyboard to directly enter
the bandwidth as shown in the
image to the right.
