180 DSP Operation Manual
Signal Level Meter

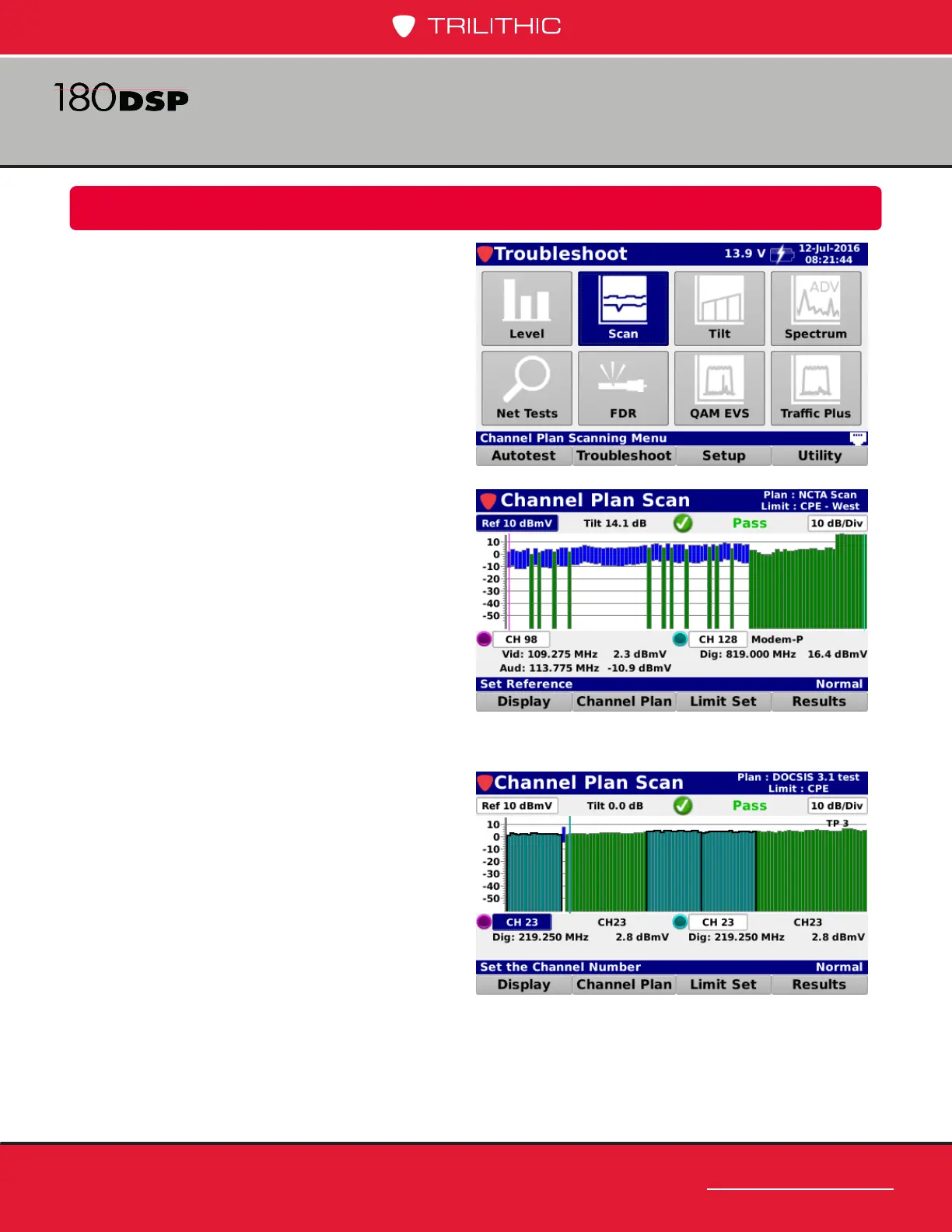

Here is an example of a channel scan that
has returned results for DOCSIS 3.1 and
digital channels.
The channels are represented by the
following:
• Analog channels – Blue
• Digital channels – Green
• DOCSIS 3.1 channels – Aqua
Channel Plan Scan
Chapter 3
The Channel Plan Scan screen will be
displayed as shown in the images to the right.
This screen allows you to perform a scan
of all of the channels in the current channel
plan.
Overview
Select the Scan icon as shown in the image
to the right to perform a channel plan scan on
the 180 DSP.
To Next Page
