Page IV-54

180 DSP Operation Manual

Signal Level Meter

Save Preset

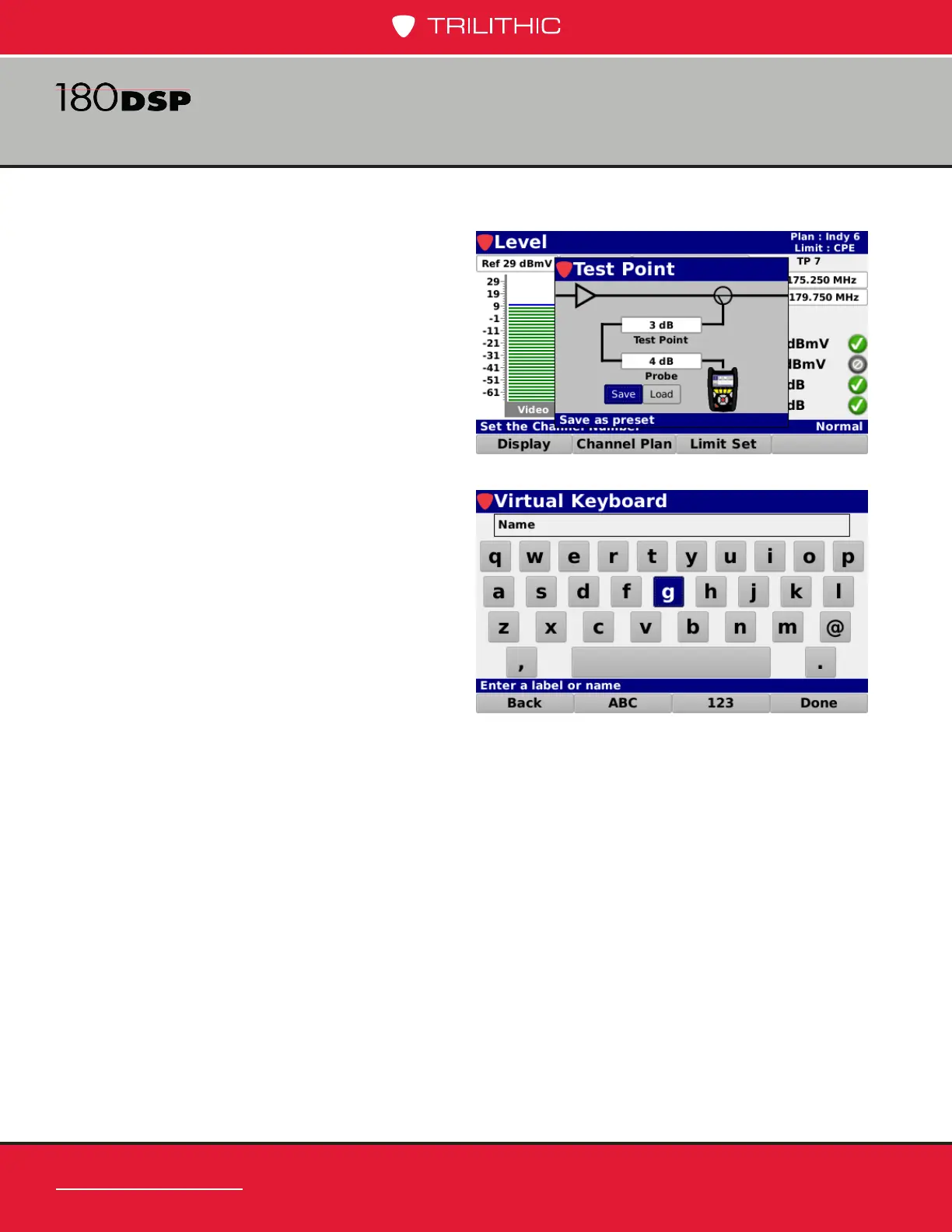

Select the Save button to save the test

point values as a preset.
