180 DSP Operation Manual
Signal Level Meter
Overview
The Source Generator (SRC) is an optional feature of the 180 DSP. If you do not have this
option, call Trilithic at (800) 344-2412 in order to purchase an option activation code and start
using this option today.
To view the installed functions on your instrument, see Section II: Setup Menu, Chapter 2:
Instrument Information.
When activated in a 180 DSP, the Source Generator feature provides users with the ability
to generate either a continuous wave (CW) or 16/32/64/128/256 QAM signal with adjustable
frequency, and modulation in the return path from 5 to 85 MHz.

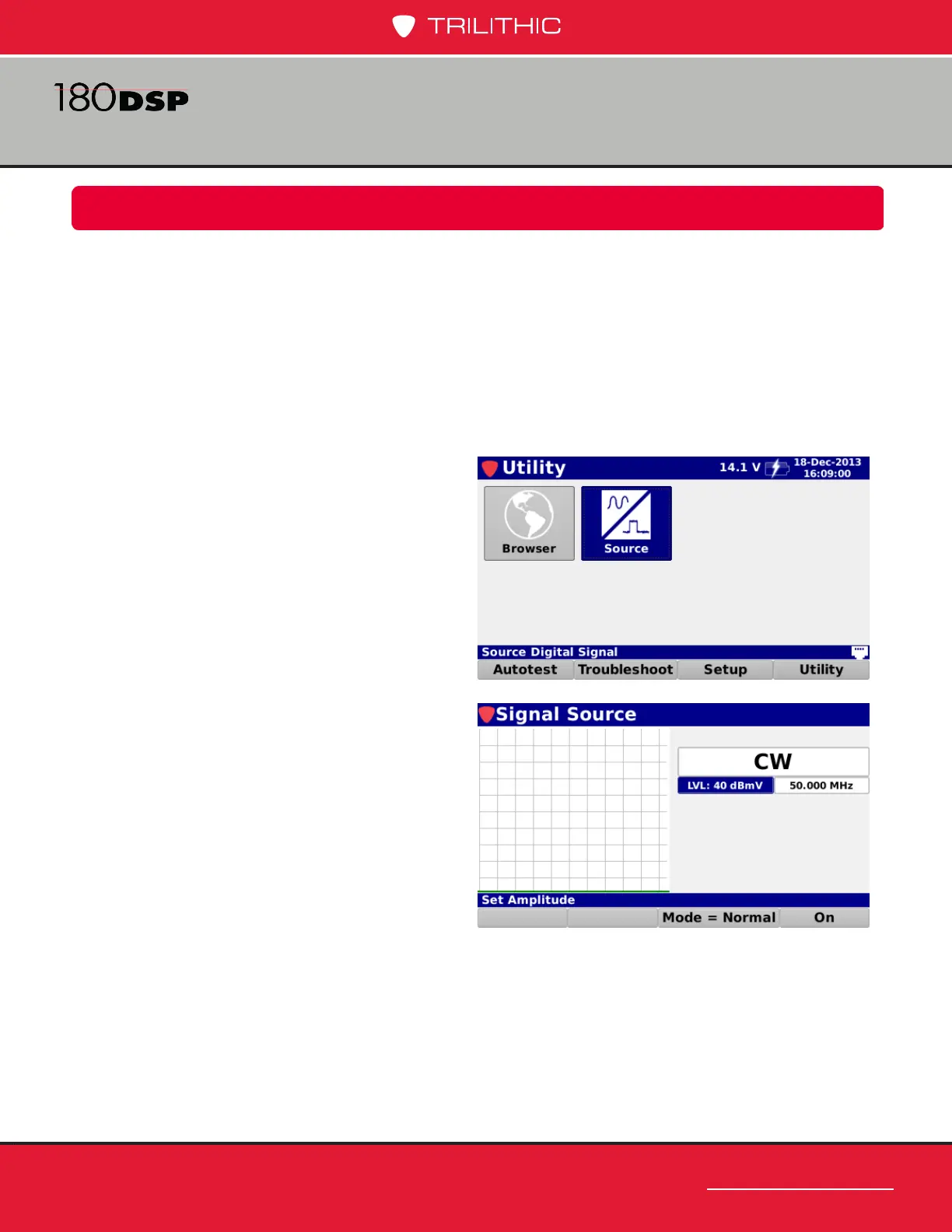

Select the Source icon as shown in the
image to the right to use the Source
Generator Option on the 180 DSP.
The Signal Source screen will be displayed
as shown in the image to the right. This
screen displays the type of signal source
along with related signal settings.
