Trilithic 180 DSP User Manual

www.trilithic.com
Page IV-43
180 DSP Operation Manual
www.trilithic.com
Signal Level Meter

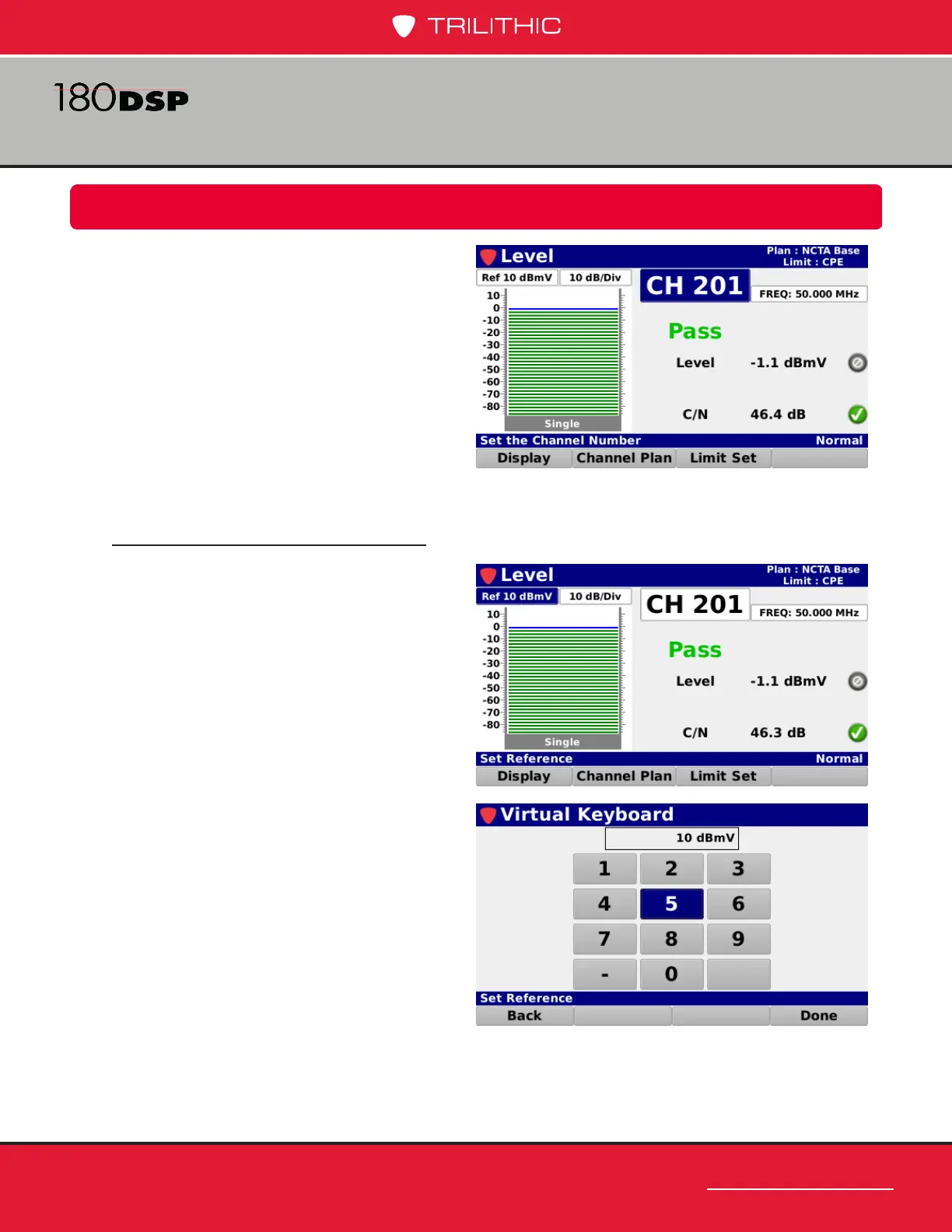

Single Carrier Channel Measurement
When a single carrier channel is selected,
the Level screen will display the following
information based on the settings of the
current channel plan:
• Reference Level (adjustable)
• Vertical Scale (adjustable)
• Channel Number (adjustable)
• Channel Name
• Center Frequency (adjustable)
Reference Level Adjustment
The reference level can be adjusted from
-40 to 60 dBmV and is the highest value
displayed on the bar graph. Highlight
the reference level eld as shown in the
image to the right and then use either
of the following methods to change the
reference level:
• Use the up/down arrow buttons
to change the reference level in 1
dBmV increments.
• Press the Enter button and use the
Virtual Keyboard to directly enter
the reference level as shown in the
image to the right.
