Trilithic 180 DSP User Manual

www.trilithic.com
Page IV-138
180 DSP Operation Manual
Signal Level Meter

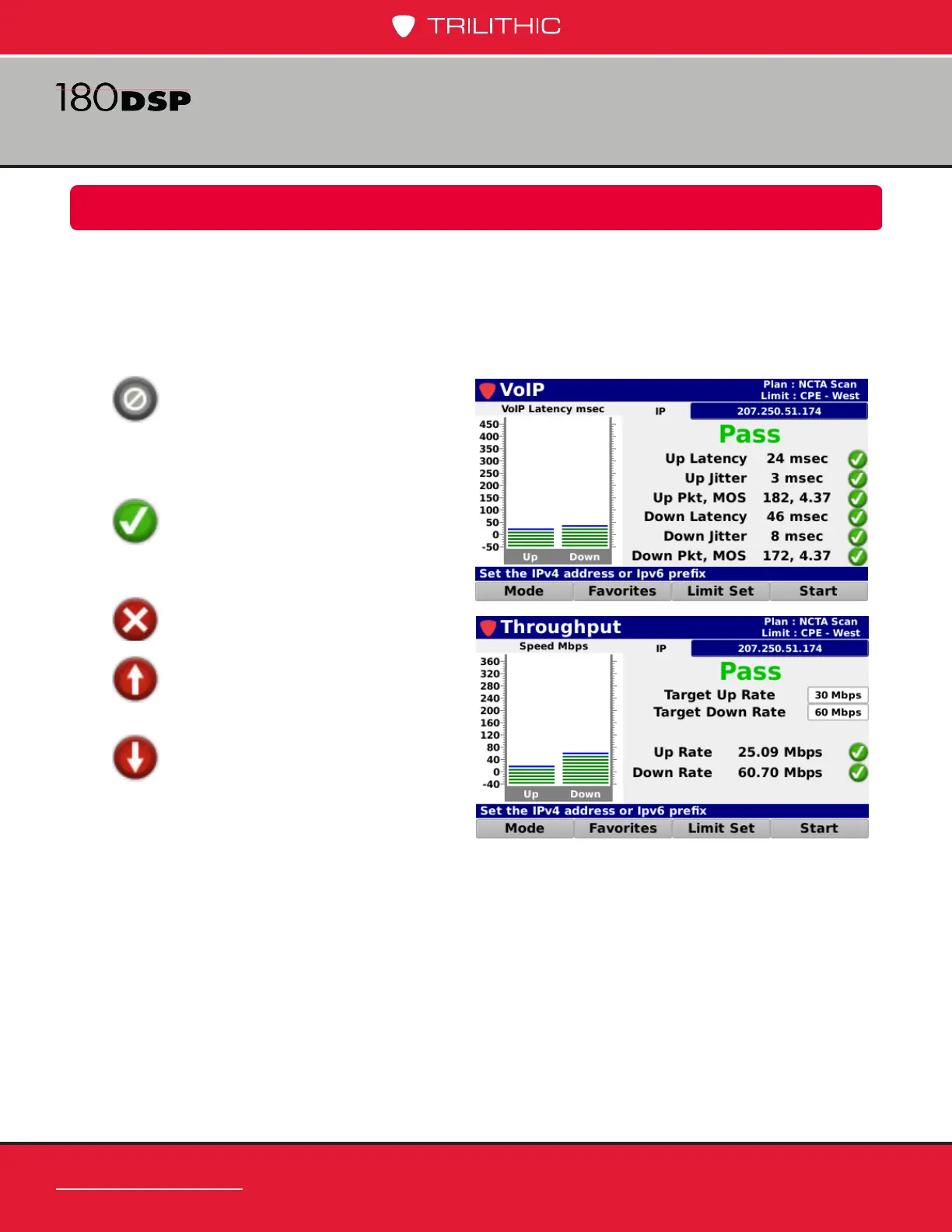

Pass/Fail Measurement Indicators
When a limit set has been opened, the network tests will be tested against the current limit set.
When any of the individual measurement parameters of a network tests fail, the network tests
as a whole will indicate a Fail status.
A Pass/Fail status will be displayed next to each measurement parameter. The pass/fail status
of the network tests will be indicated using the following icons:
This icon indicates that this
measurement was skipped. This
only applies to measurements
that have been removed from the
currently selected limit set.
This icon indicates that this
measurement is within the
measurement thresholds of the
currently selected limit set.
This icon indicates that the
measurement limit set has failed.
This icon indicates that the
measurement has failed the high
limit measurement threshold.
This icon indicates that the
measurement has failed the low
limit measurement threshold.
