Page IV-27

180 DSP Operation Manual

Signal Level Meter

Equalizer Tap

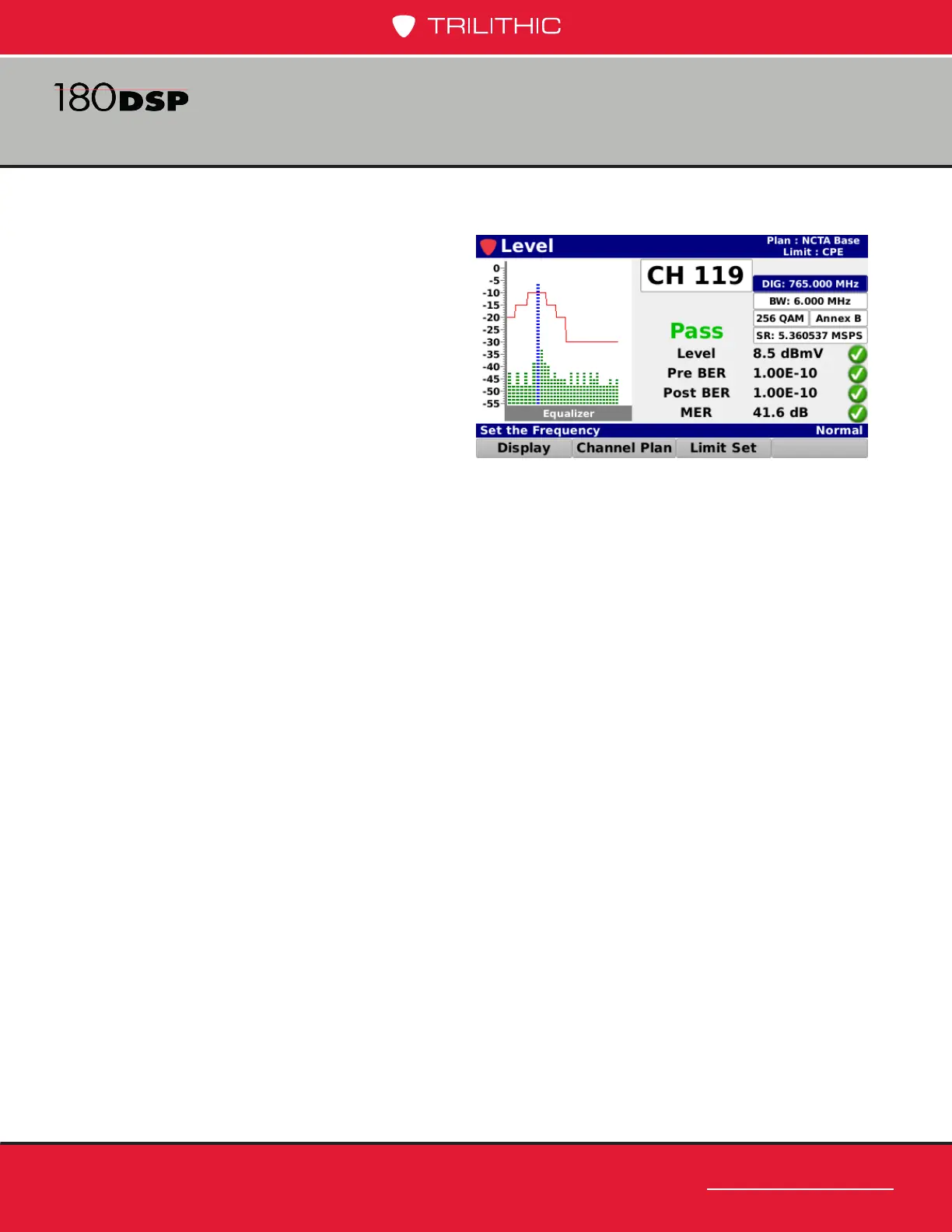

Select the Equalizer button from

the Display pop-up menu to display

the equalizer stress and whether the

DOCSIS specication is being broken.

The following measurement results

are displayed with a pass/fail status for

each measurement that is included in

the open limit set:

• Digital channel level value with

bar graph

• Pre BER

• Post BER

• MER
