Page IV-86
180 DSP Operation Manual
Signal Level Meter
Test Point Compensation

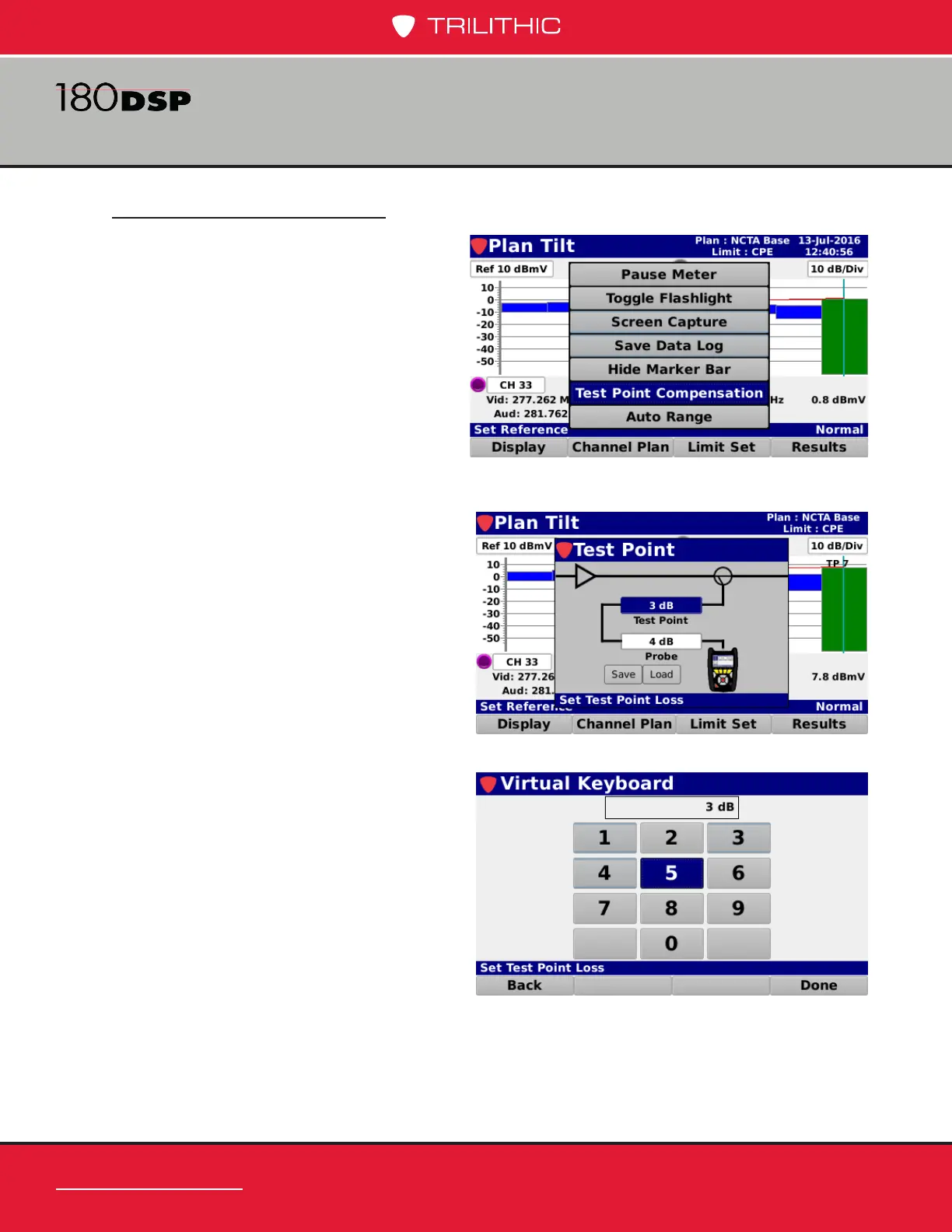

Select the Test Point Compensation
button from the Function menu to enter
test point loss measurements for both
test point and probe loss.
The Test Point screen will be displayed
as shown in the image to the right.
Test Point Loss
Highlight the Test Point eld and then
use either of the following methods to
change the loss value:
• Use the up/down arrow buttons
to change the test point loss
level in 1 dB increments.
• Press the Enter button and
use the Virtual Keyboard to
directly enter the loss value as
shown in the image to the right.
