180 DSP Operation Manual
Signal Level Meter
Available Options

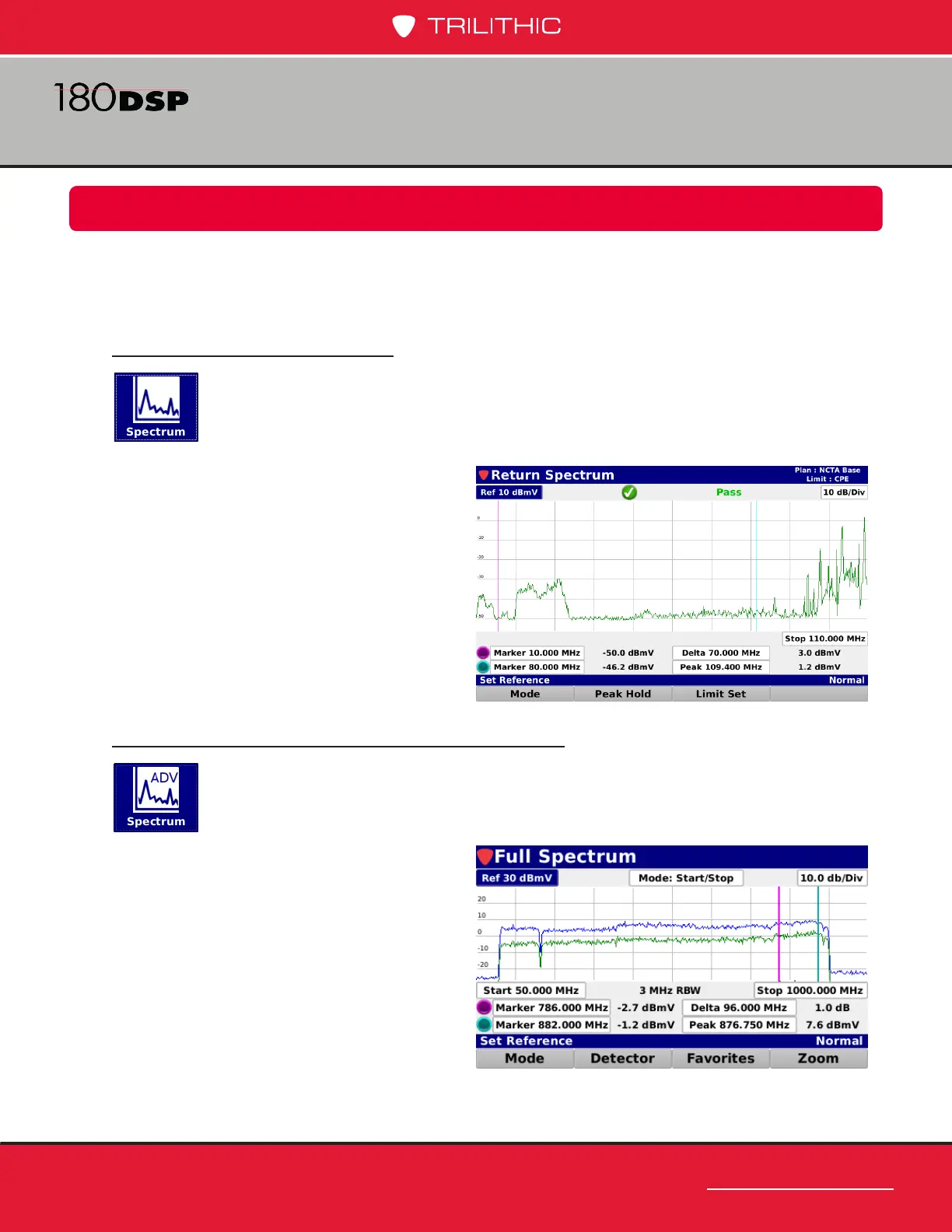

The spectrum analysis options that are available for the 180 DSP are shown in the following
sections. To view the installed functions on your instrument, see Section II: Setup Menu,
Chapter 2: Instrument Information.
Return Spectrum Analysis
When the Icon shown to the left is displayed on the Troubleshoot menu, your
180 DSP is equipped for Return Spectrum Analysis.
The standard conguration for spectrum
analysis on the 180 DSP provides
users with the ability to view raw return
spectrum traces from 4 to 110 MHz with
DSP spectrum snapshots to give the user
a view of any upstream channels.
Advanced Spectrum Analysis (OPTIONAL)
Forward Spectrum Analysis is an optional advanced feature on the 180 DSP.
When the Icon shown to the left is displayed on the Troubleshoot menu, your
180 DSP is equipped for both Forward and Return Spectrum Analysis.
When activated in a 180 DSP, this feature
provides users with the added ability to
view raw spectrum traces for the forward
(5 to 1000 MHz or 5 to 1250 MHZ,
depending on RF board) path with DSP
spectrum snapshots to give the user a
view of any upstream or downstream
channels.
If you do not have the Forward Spectrum
Analysis (FSA) option, call Trilithic at
(800) 344-2412 in order to purchase an
option activation code and start using this option today.
