180 DSP Operation Manual
Signal Level Meter
Symbol Rate
The Symbol Rate setting is used to
adjust the symbol rate of the channel.
The symbol rate can be set from a
minimum of 0.000 MSPS up to a
maximum of 6.952 MSPS.
Use either of the following methods to
change the symbol rate of the channel:
• Use the up/down arrow buttons
to change the value in 0.001
MSPS increments.

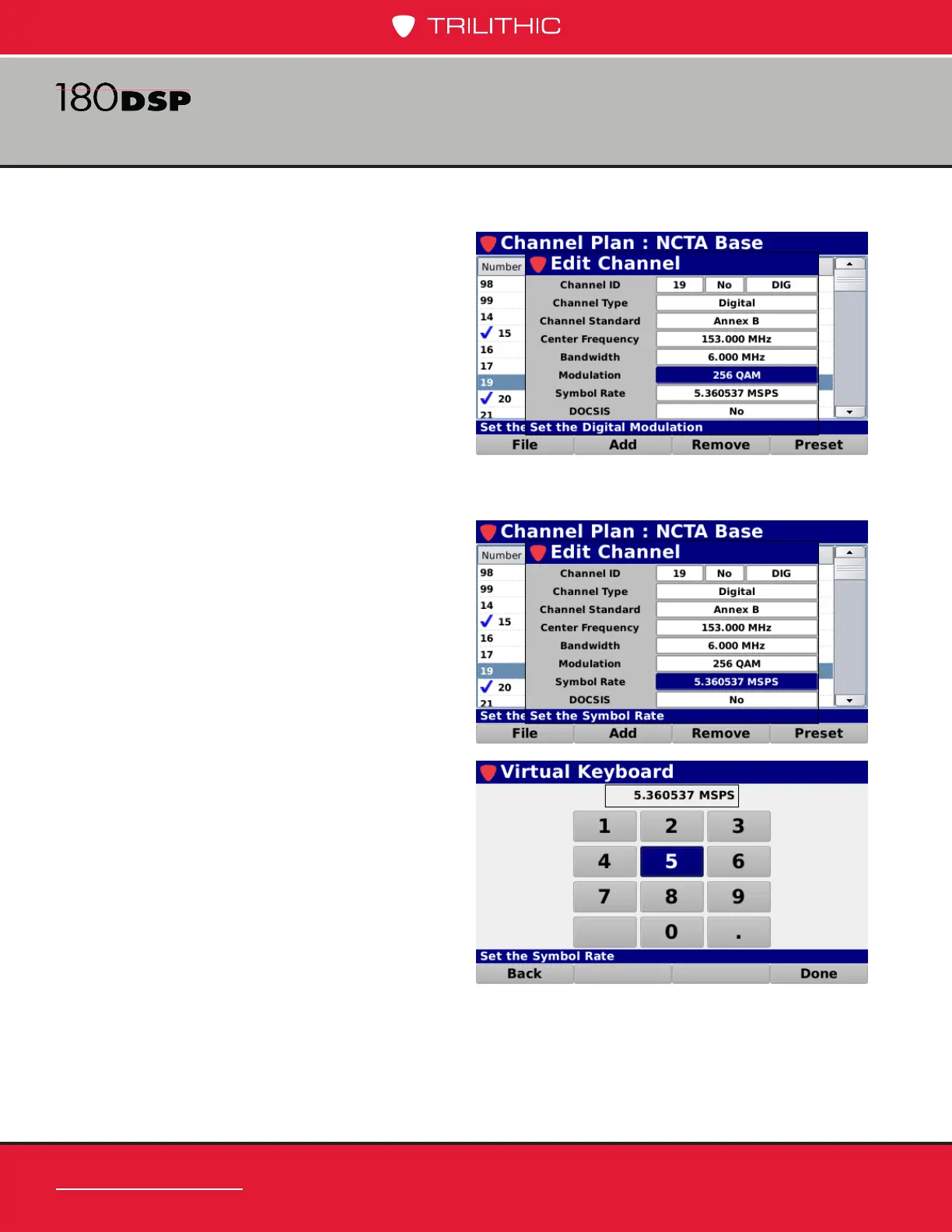

• Press the Enter button and use
the Virtual Keyboard to directly
enter the symbol rate as shown
in the image to the right.
Modulation
The Modulation setting is used
to adjust the modulation type of
the channel. Use the up/down
arrow buttons to select from
16/32/64/128/256 QAM.
