Trilithic 180 DSP User Manual

www.trilithic.com
Page IV-87
180 DSP Operation Manual
Signal Level Meter
Probe Loss

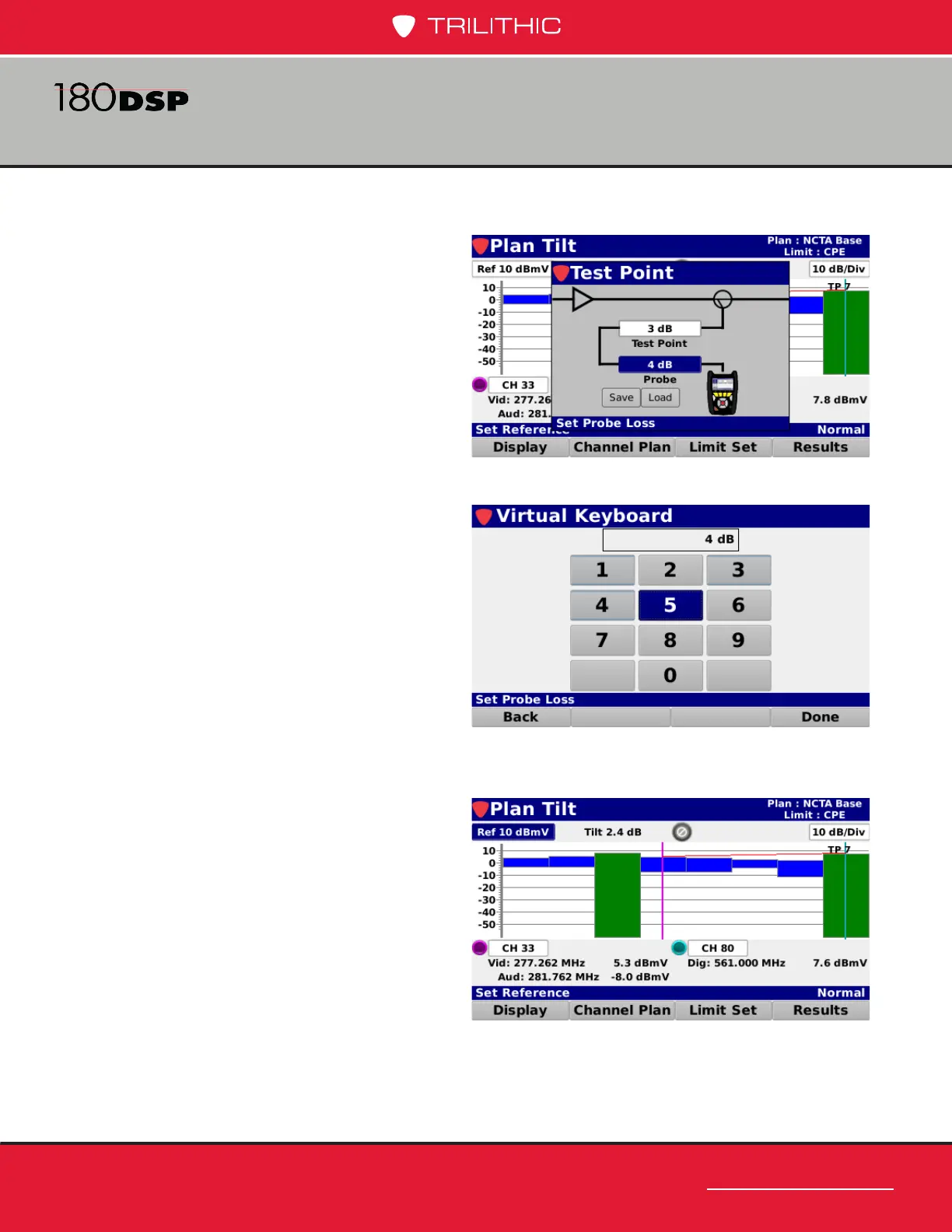

Highlight the Probe eld and then
use either of the following methods
to change the loss value:
• Use the up/down arrow
buttons to change the probe
loss level in 1 dB increments.
• Press the Enter button and
use the Virtual Keyboard to
directly enter the loss value
as shown in the image to the
right.
When nished entering the test point
loss information, press the Back button
to return to the Channel Plan Scan
screen.
The total test point compensation value
will be displayed, as shown in the
image to the right.
