180 DSP Operation Manual
Signal Level Meter
Test Point Compensation

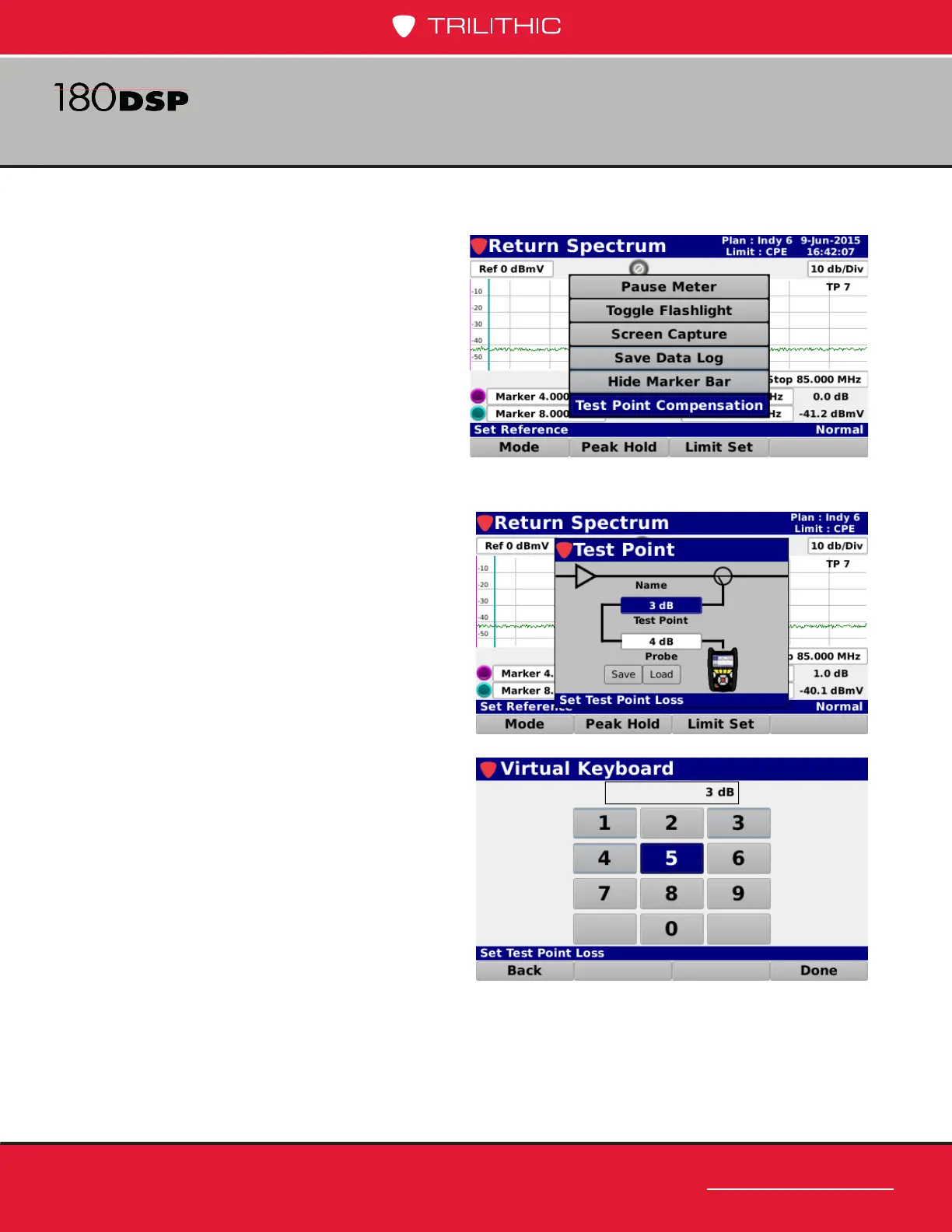

Select the Test Point Compensation
button from the Function menu to
enter test point loss measurements
for both test point and probe loss.
The Test Point screen will be
displayed as shown in the image to
the right.
Test Point Loss
Highlight the Test Point eld and
then use either of the following
methods to change the loss value:
• Use the up/down arrow
buttons to change the test
point loss level in 1 dB
increments.
• Press the Enter button and
use the Virtual Keyboard
to directly enter the loss
value as shown in the
image to the right.
