180 DSP Operation Manual
Signal Level Meter
Marker Adjustment
The Return Spectrum measurement
includes two on-screen markers that
are used for measurement of specic
frequencies within the return spectrum.
The markers are represented by the
following color bullets and vertical lines:
• Marker 1 – Purple
• Marker 2 – Light Blue
Highlight the desired marker and use
either of the following methods to change
the marker location:
• Use the up/down arrow buttons to
change the marker in 0.200 MHz
increments.

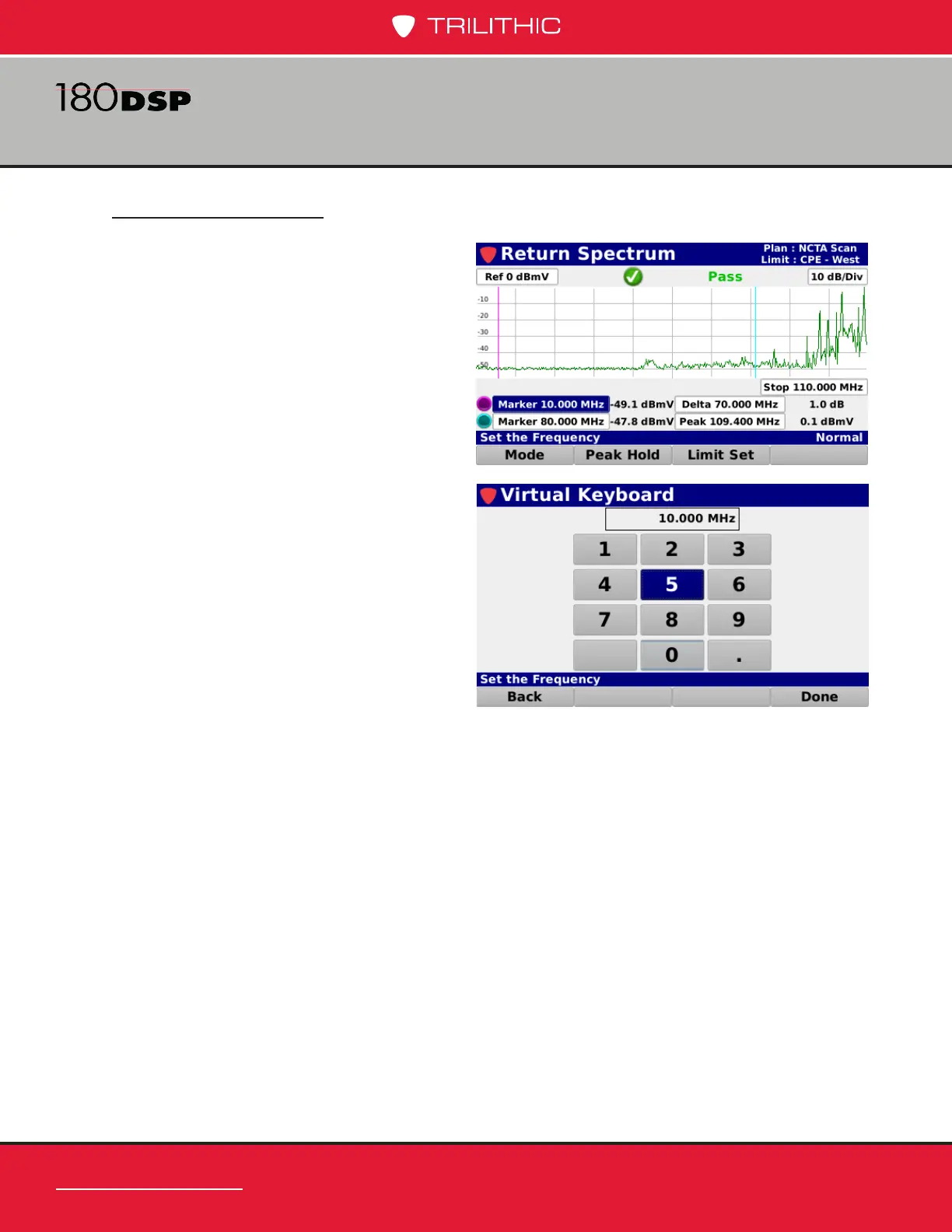

• Press the Enter button and use the
Virtual Keyboard to directly enter
the frequency as shown in the
image below.
The following information is displayed for the markers:
• Level – Displays the signal level at the specied frequency for each marker.
• Frequency Delta – Displays the frequency delta between the two markers.
• Frequency Peak – Displays the frequency of the peak signal level in the return
spectrum.
• Level Peak – Displays the peak signal level in the return spectrum.
• Level Delta – Displays the signal level difference between the minimum and
maximum level values in the return spectrum.
