Marker Adjustment
The FDR measurement includes one
on-screen marker that is used to mark a
specic distance to fault.
The markers are represented by the
following color bullets and vertical lines:
• Marker 1 – Purple
Highlight the desired marker and use either
of the following methods to change the
marker location:
• Use the up/down arrow buttons to
change the marker in 1 Foot/Meter
increments.

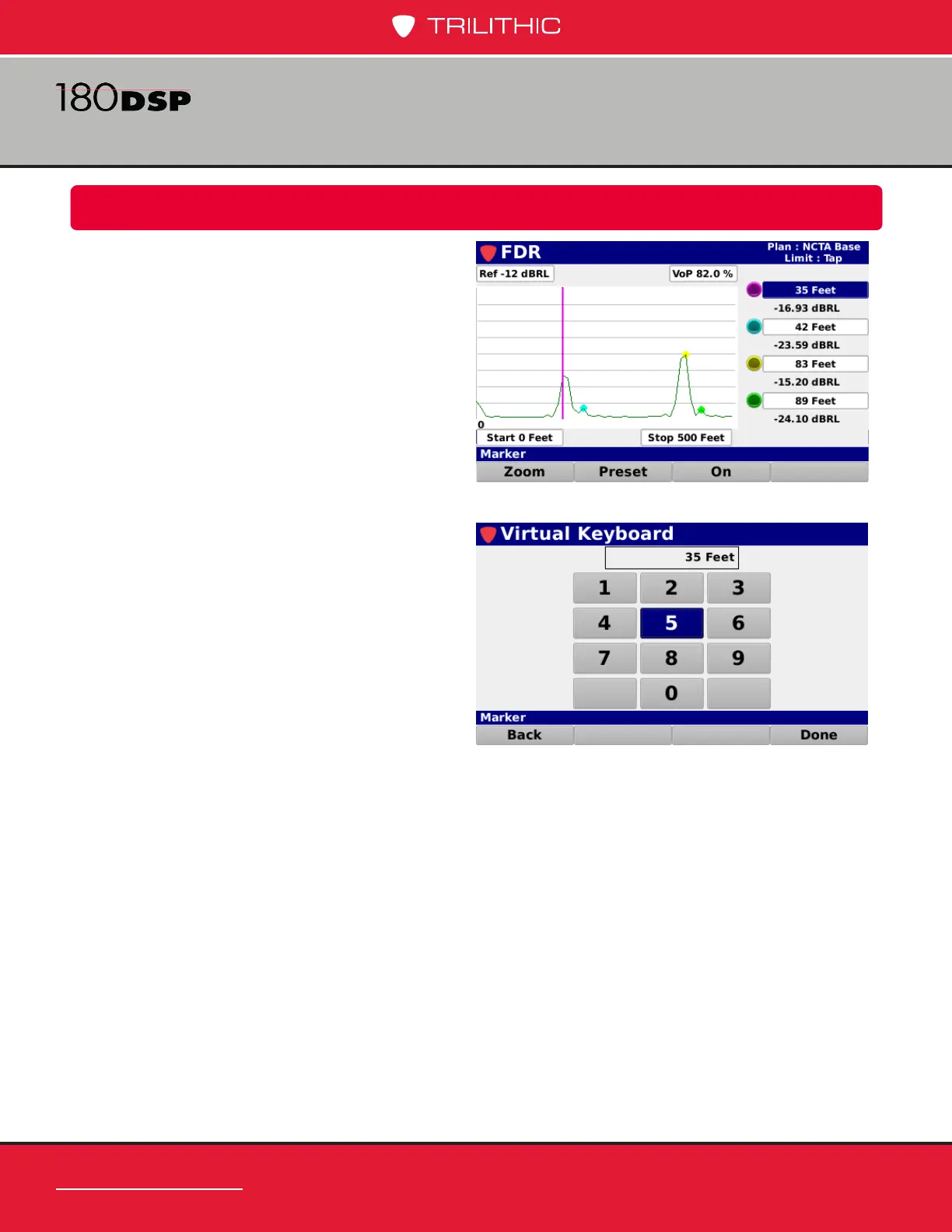

• Press the Enter button and use the
Virtual Keyboard to directly enter
the distance as shown in the image
below.
The following information is displayed for
the markers:
• Level – Displays the signal level at
the specied marker.
• Distance – Displays the distance to the marker.
