3-20 WorkCentre C2424 Service Manual

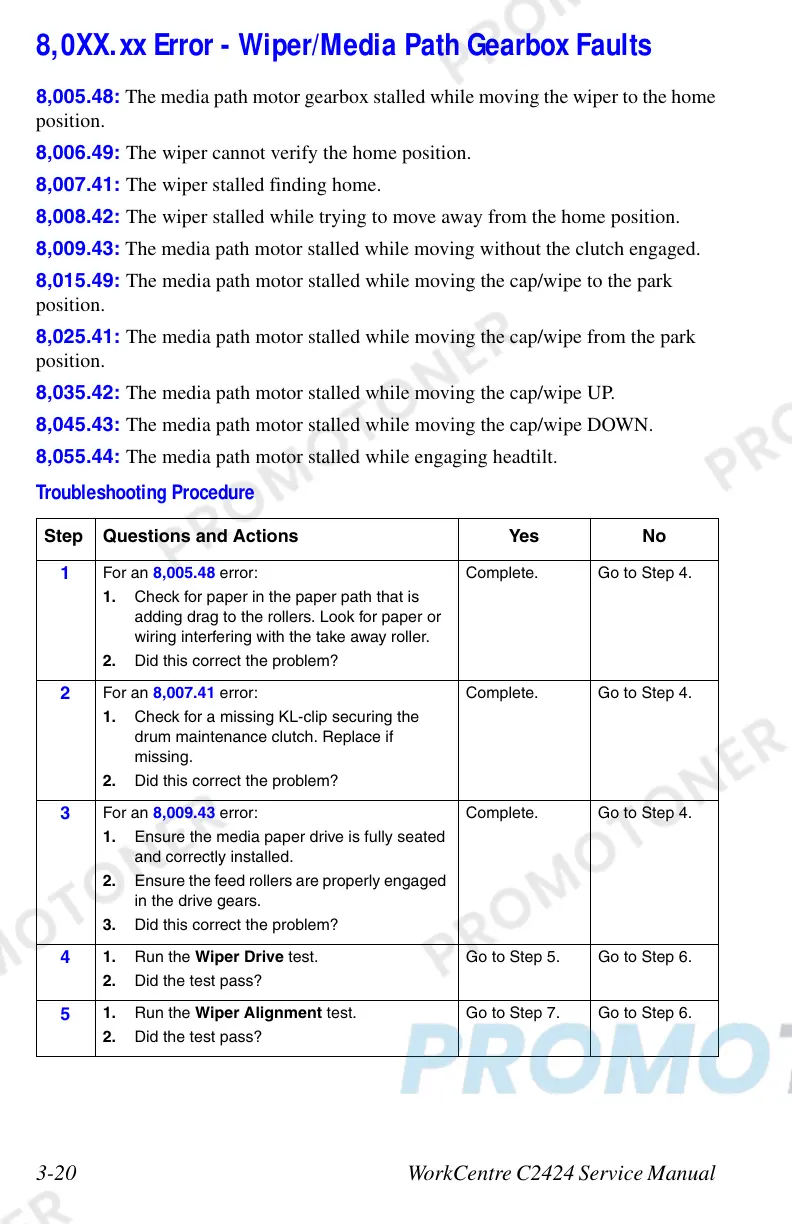

8,0XX.xx Error - Wiper/Media Path Gearbox Faults
8,005.48: The media path motor gearbox stalled while moving the wiper to the home
position.
8,006.49: The wiper cannot verify the home position.
8,007.41: The wiper stalled finding home.
8,008.42: The wiper stalled while trying to move away from the home position.
8,009.43: The media path motor stalled while moving without the clutch engaged.
8,015.49: The media path motor stalled while moving the cap/wipe to the park
position.
8,025.41: The media path motor stalled while moving the cap/wipe from the park
position.
8,035.42: The media path motor stalled while moving the cap/wipe UP.
8,045.43: The media path motor stalled while moving the cap/wipe DOWN.
8,055.44: The media path motor stalled while engaging headtilt.
Troubleshooting Procedure
Step Questions and Actions Yes No
1
For an 8,005.48 error:
1. Check for paper in the paper path that is
adding drag to the rollers. Look for paper or
wiring interfering with the take away roller.
2. Did this correct the problem?
Complete. Go to Step 4.
2
For an 8,007.41 error:
1. Check for a missing KL-clip securing the
drum maintenance clutch. Replace if
missing.
2. Did this correct the problem?
Complete. Go to Step 4.
3
For an 8,009.43 error:
1. Ensure the media paper drive is fully seated
and correctly installed.
2. Ensure the feed rollers are properly engaged
in the drive gears.
3. Did this correct the problem?
Complete. Go to Step 4.
4
1. Run the Wiper Drive test.
2. Did the test pass?
Go to Step 5. Go to Step 6.
5
1. Run the Wiper Alignment test.
2. Did the test pass?
Go to Step 7. Go to Step 6.
