8-4 WorkCentre C2424 Service Manual

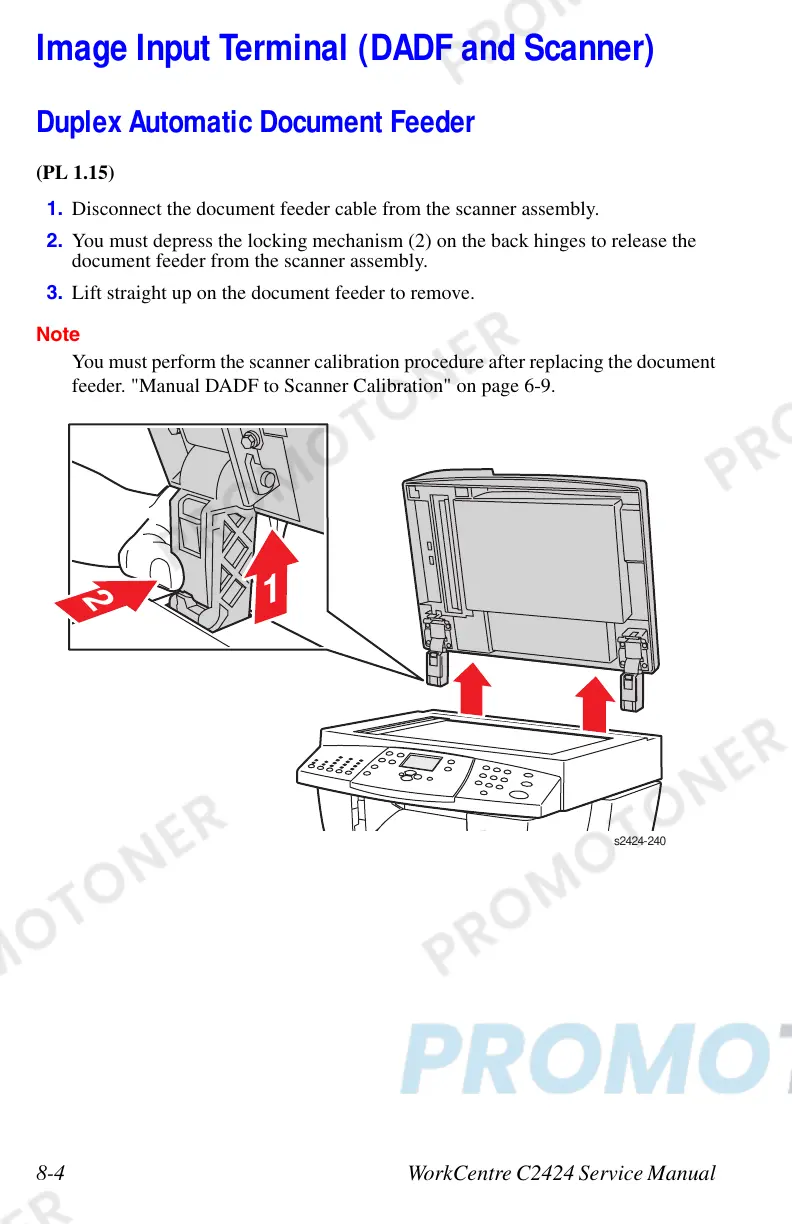

Image Input Terminal (DADF and Scanner)
Duplex Automatic Document Feeder
(PL 1.15)
1. Disconnect the document feeder cable from the scanner assembly.
2. You must depress the locking mechanism (2) on the back hinges to release the
document feeder from the scanner assembly.
3. Lift straight up on the document feeder to remove.
Note
You must perform the scanner calibration procedure after replacing the document
feeder. "Manual DADF to Scanner Calibration" on page 6-9.
2
1
s2424-240
