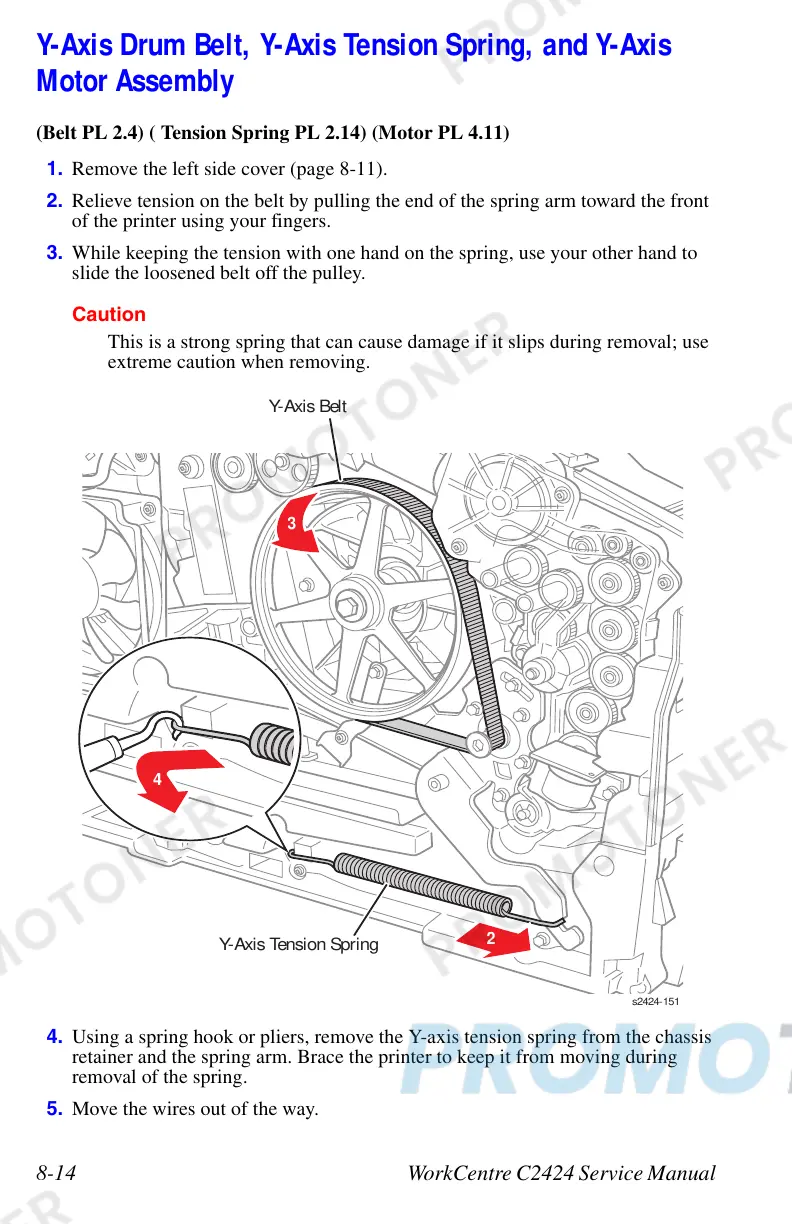

8-14 WorkCentre C2424 Service Manual
Y-Axis Drum Belt, Y-Axis Tension Spring, and Y-Axis
Motor Assembly
(Belt PL 2.4) ( Tension Spring PL 2.14) (Motor PL 4.11)
1. Remove the left side cover (page 8-11).
2. Relieve tension on the belt by pulling the end of the spring arm toward the front
of the printer using your fingers.
3. While keeping the tension with one hand on the spring, use your other hand to
slide the loosened belt off the pulley.
Caution
This is a strong spring that can cause damage if it slips during removal; use
extreme caution when removing.
4. Using a spring hook or pliers, remove the Y-axis tension spring from the chassis
retainer and the spring arm. Brace the printer to keep it from moving during
removal of the spring.
5. Move the wires out of the way.
s2424-15
1
3
4
2
Y-Axis Belt
Y-Axis Tension Spring
