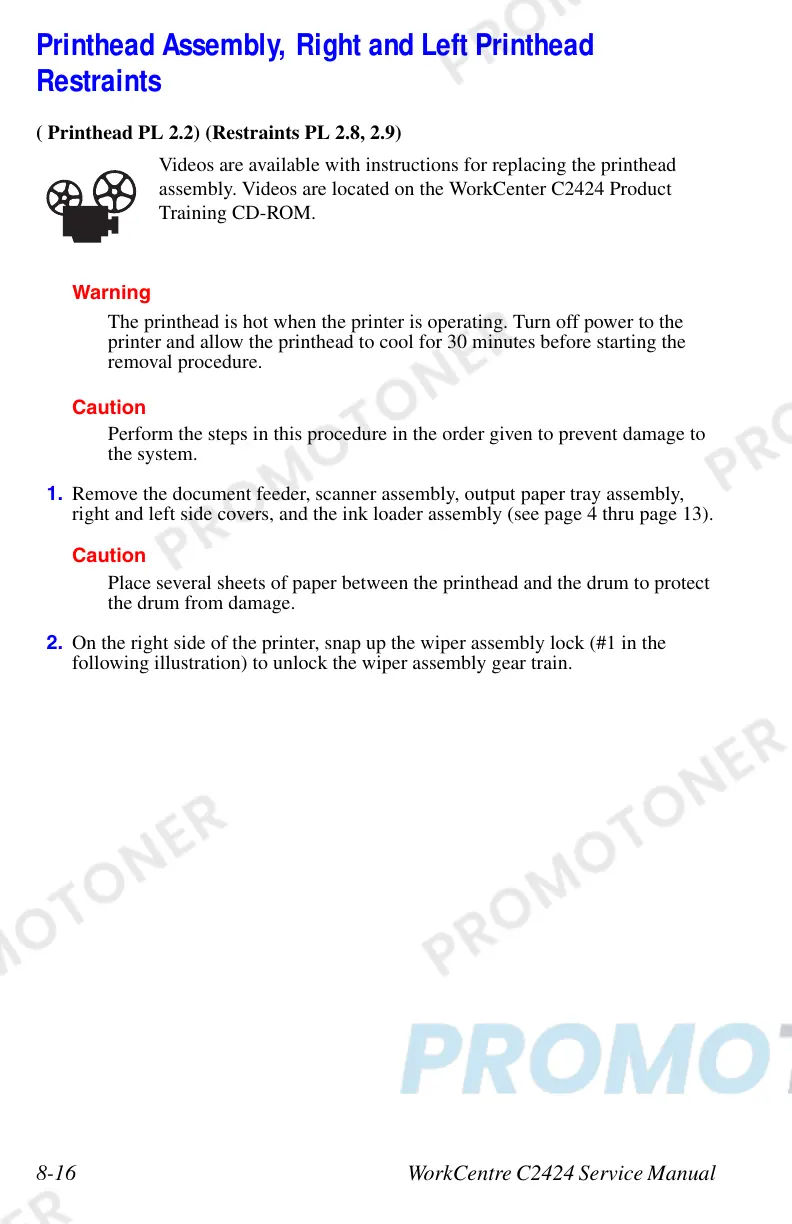

8-16 WorkCentre C2424 Service Manual
Printhead Assembly, Right and Left Printhead
Restraints
( Printhead PL 2.2) (Restraints PL 2.8, 2.9)
Videos are available with instructions for replacing the printhead
assembly. Videos are located on the WorkCenter C2424 Product
Training CD-ROM.
arn
ng
The printhead is hot when the printer is operating. Turn off power to the
printer and allow the printhead to cool for 30 minutes before starting the
removal procedure.
Caution
Perform the steps in this procedure in the order given to prevent damage to
the system.
1. Remove the document feeder, scanner assembly, output paper tray assembly,
right and left side covers, and the ink loader assembly (see page 4 thru page 13).
Caution
Place several sheets of paper between the printhead and the drum to protect
the drum from damage.
2. On the right side of the printer, snap up the wiper assembly lock (#1 in the
following illustration) to unlock the wiper assembly gear train.
