8-24 WorkCentre C2424 Service Manual

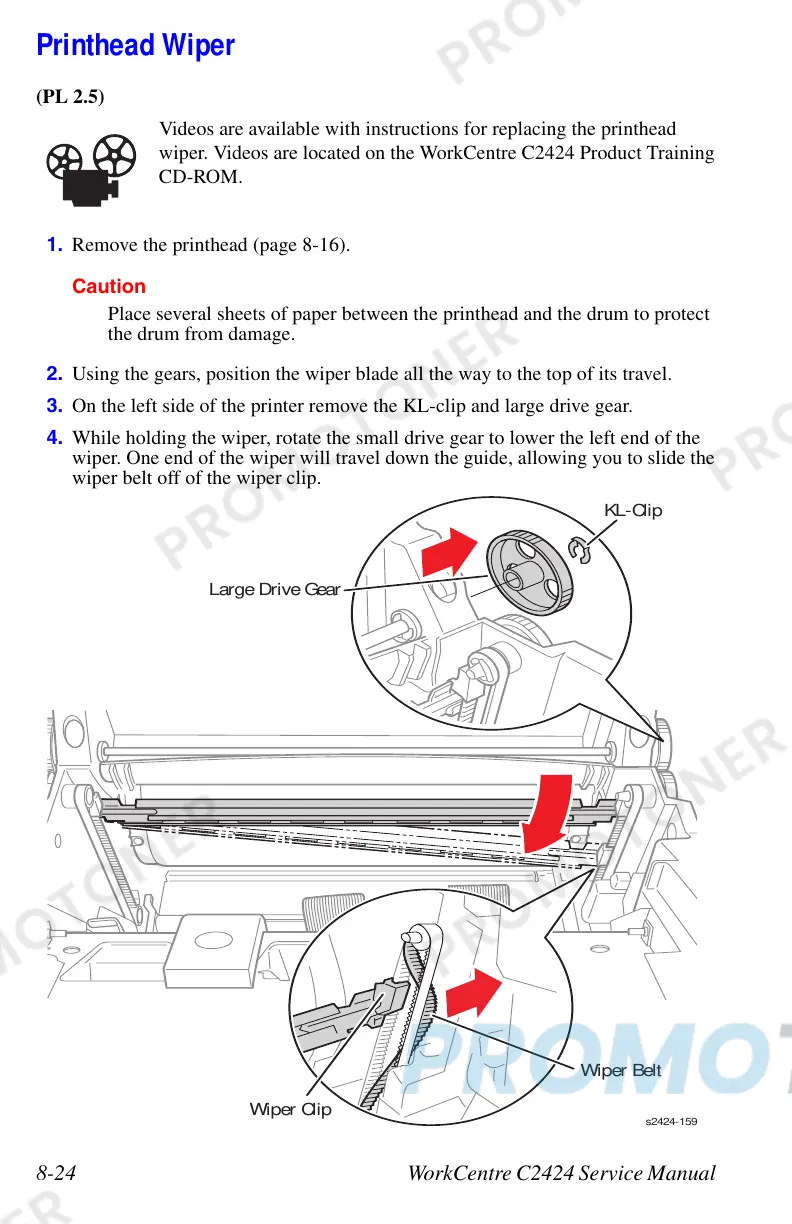

Printhead Wiper
(PL 2.5)
Videos are available with instructions for replacing the printhead
wiper. Videos are located on the WorkCentre C2424 Product Training
CD-ROM.
1. Remove the printhead (page 8-16).
Caution
Place several sheets of paper between the printhead and the drum to protect
the drum from damage.
2. Using the gears, position the wiper blade all the way to the top of its travel.
3. On the left side of the printer remove the KL-clip and large drive gear.
4. While holding the wiper, rotate the small drive gear to lower the left end of the
wiper. One end of the wiper will travel down the guide, allowing you to slide the
wiper belt off of the wiper clip.
KL-Clip
Large Drive Gear
Wiper Clip
Wiper Belt
To Next Page
